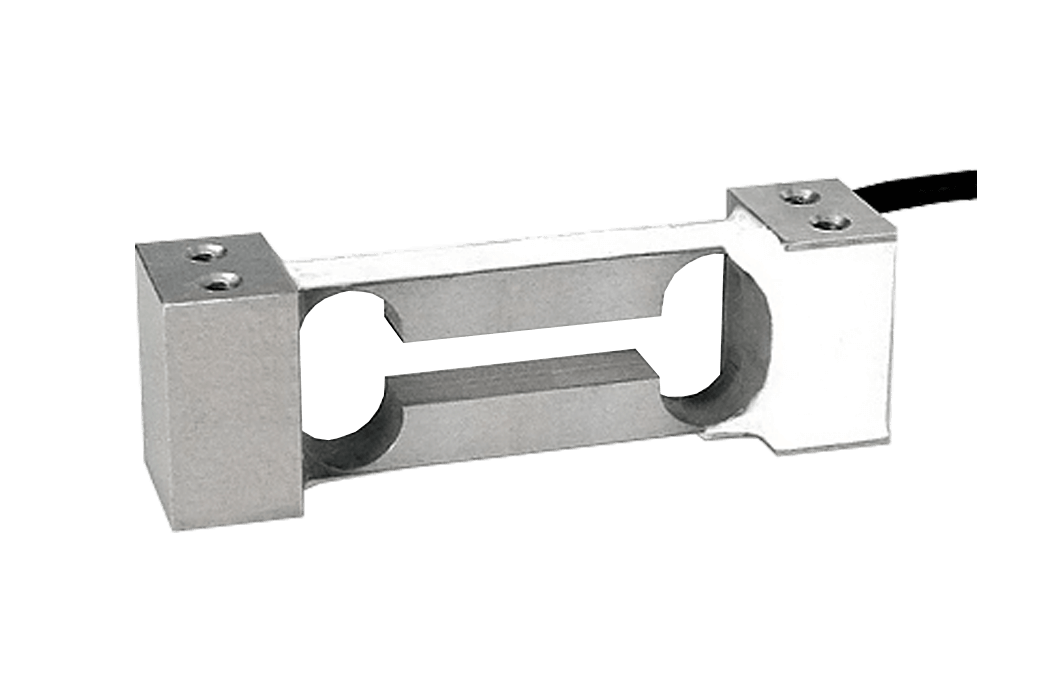

Platform load cells L-AS

The L-AS platform load cell (single point load cell) for 200x200 mm platforms is a high-precision solution for various weighing applications for small to medium loads. Specially designed for 200x200 mm platforms, this aluminum alloy load cell offers an optimal combination of accuracy and robustness. It is available with rated loads of 0.25 kg, 0.5 kg and 1 kg and is characterized by a combined error of less than ±0.03%. With its IP65 protection class, it is protected against dust and water jets, making it suitable for various environments.

These load cells are characterized by their high precision, compactness and the ability to handle eccentric loads, making them ideal for applications that require accurate measurements of small weights.

Features of the L-AS platform load cells

✅Designed for nominal loads from 0.25 kg to 1 kg

✅Combined animal error <±0.03%

✅Material: aluminum alloy

✅For platforms of size 200x200mm

✅ OIML R60 C3 certified, ATEX II 1GD and IECEx possible

✅Protection class IP65

✅Particularly robust for tough continuous use in the industrial sector

✅Compatible with other manufacturers

Datasheet

CAD model:
L-AS CAD model
