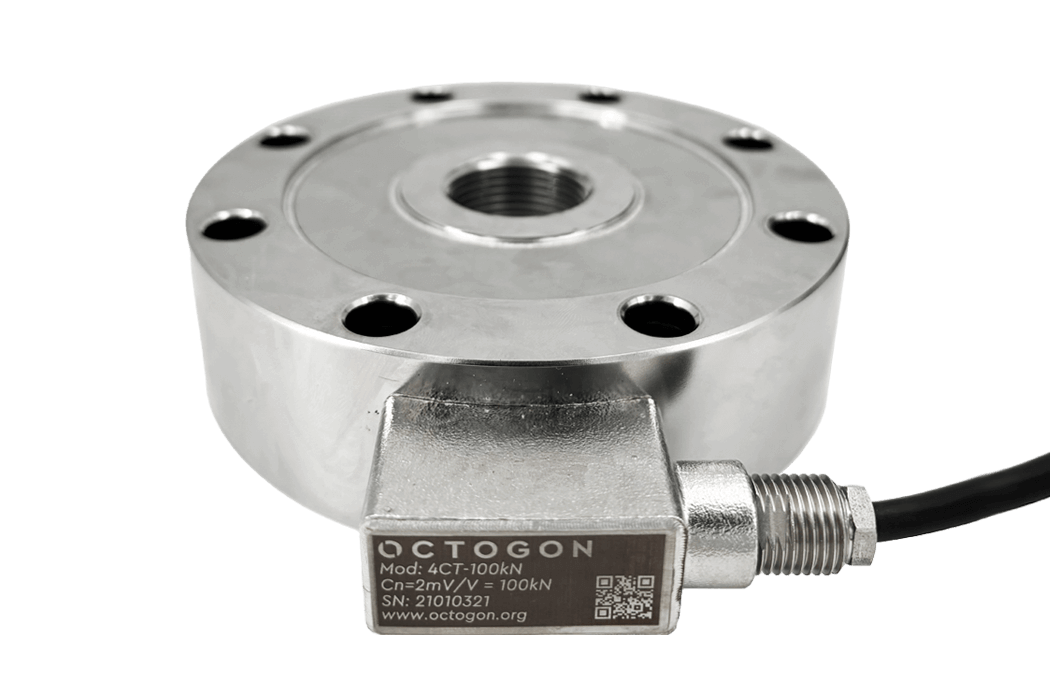

Tension-compression force transducer 4CT

Tension-compression force transducers 4CT are made out of stainless steel and are secure from the elements with a protection class IP67. The force transducers are symmetrical, very compact and are often used in tension-compression applications. They can be used as tank scales, silo scales, machine scales, container scales, special scales as well as in force measurements in testing machines and process industries.

The force introduction to the tension-compression force transducer 4CT is often carried out via a load introduction button. The central force introduction ensures that the force transducer is largely insensitive to eccentric loads. They are also characterized by high accuracy and linearity and are ideally suited for tension-compression applications. Tension & compression force transducers are ideally suited for long-term use in harsh environments and deliver precise and reproducible measurement results.

Features of the 4CT tension-compression force transducer

✅ Nominal load from 2.5 kN to 5 MN

✅ Material: stainless steel

✅ Very high rated loads available

✅ Protection class: IP67

✅ Optional: Plug connector - on request

✅ Optional: with analog output (±5V, ±10V or 4...20mA) - on request

✅ Structure: The measuring element is laser welded

✅ High accuracy and linearity

✅ Particularly robust for tough continuous use in the industrial sector
