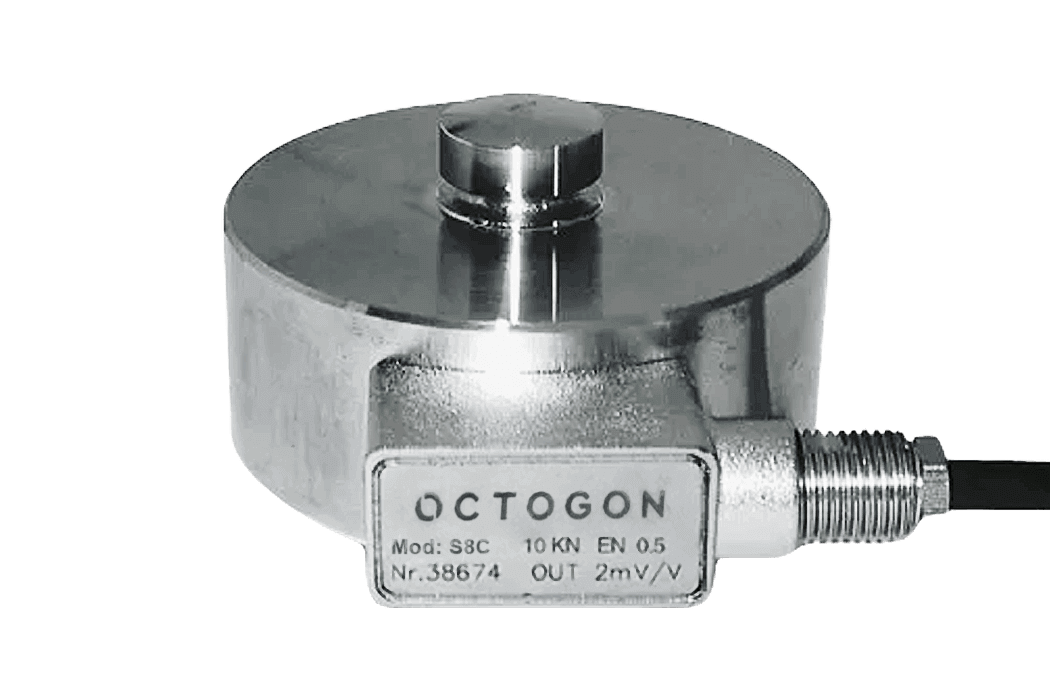

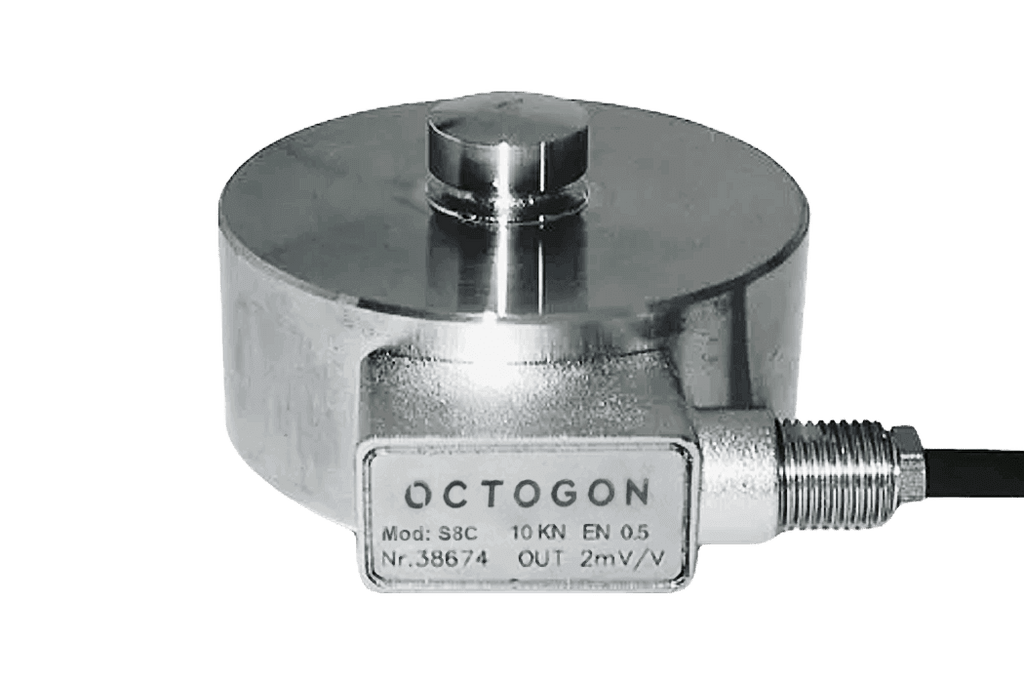

Compression force transducer S8C
plus VAT plus shipping costs
Low stock
Couldn't load pickup availability
S8C compression force transducers offer high precision and stability when measuring both static and dynamic loads in the compression direction and meet all required specifications regarding rated load range, accuracy class, linearity, hysteresis and output signal.
Our force transducer, suitable for material testing machines and test benches in general, offers high mechanical resistance and is made entirely of stainless steel. Full laser welding ensures a robust construction, while the IP67 protection rating ensures reliable operation even in harsh environments. The high quality of the materials and careful manufacturing guarantee long-term stability.
Features of the S8C compression force transducer
✅ Designed for nominal loads from 5 kN to 2000 kN
✅ Protection class: IP67
✅ Material: stainless steel
✅ Construction: The measuring element is laser welded
✅ High accuracy and linearity
✅ ATEX certificate on request
✅ Particularly robust for tough continuous use in the industrial sector
Scope
The application range of force transducers used for measuring static and dynamic loads inprinting directionis extremely diverse. Such force transducers are used in the following areas: material and component testing, process monitoring in production, testing machines and special applications (due to their high precision and reliability, they are also suitable for special applications and can be integrated into customer-specific measuring systems).
