Miniature tension-compression force transducer FSA
plus VAT plus shipping costs
In stock
Couldn't load pickup availability

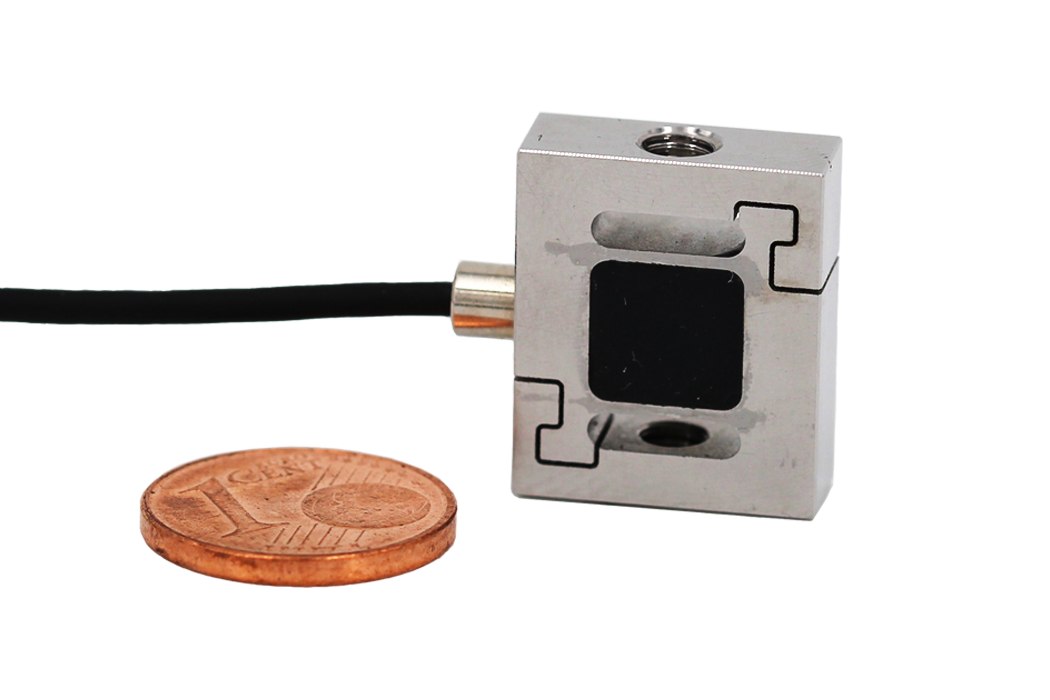

Miniature tension-compression force transducer FSA made of stainless steel is particularly suitable for measuring tension and compression forces. The spring body of the force transducer is located in the middle beam. This piece of metal made of stainless steel deforms under pressure or tension and returns to its original shape when the pressure is released. This deformation process is measured with a strain gauge (DMS) and converted into an electrical signal. The S-shaped force transducers can be calibrated in weight or force units.
Features of the FSA miniature tension-compression force transducer
✅Designed for nominal loads from 1 N to 500 N
✅Nonlinearity errors <±0.05%
✅Material: stainless steel
✅ Protection class IP66
✅Particularly robust for tough continuous use in the industrial sector
✅Compatible with other manufacturers
Applications of miniature tension-compression force transducers FSA
Miniature tension-compression force sensors are suitable for a wide range of applications where precise force measurement in the smallest installation space is important. They are used in various areas such as process monitoring, for checking in test benches or for controlling dosing systems. The precise design of the miniature force sensors enables reliable and accurate results even in the smallest force ranges. In addition, the low weight of the sensors enables them to be used in environments where it is critical to keep the overall weight as low as possible.
