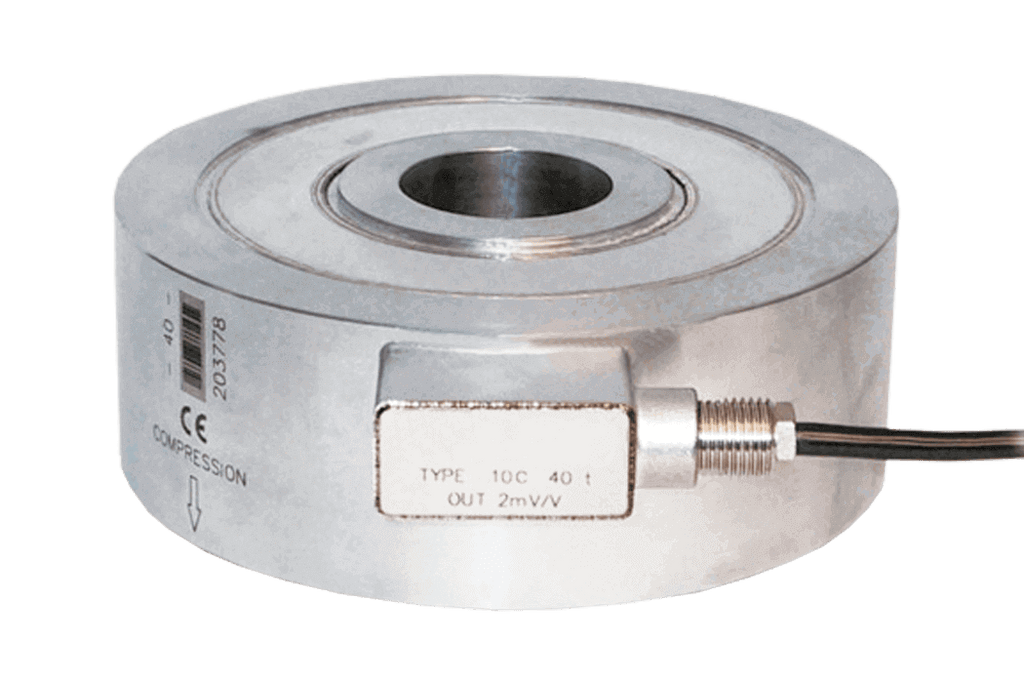

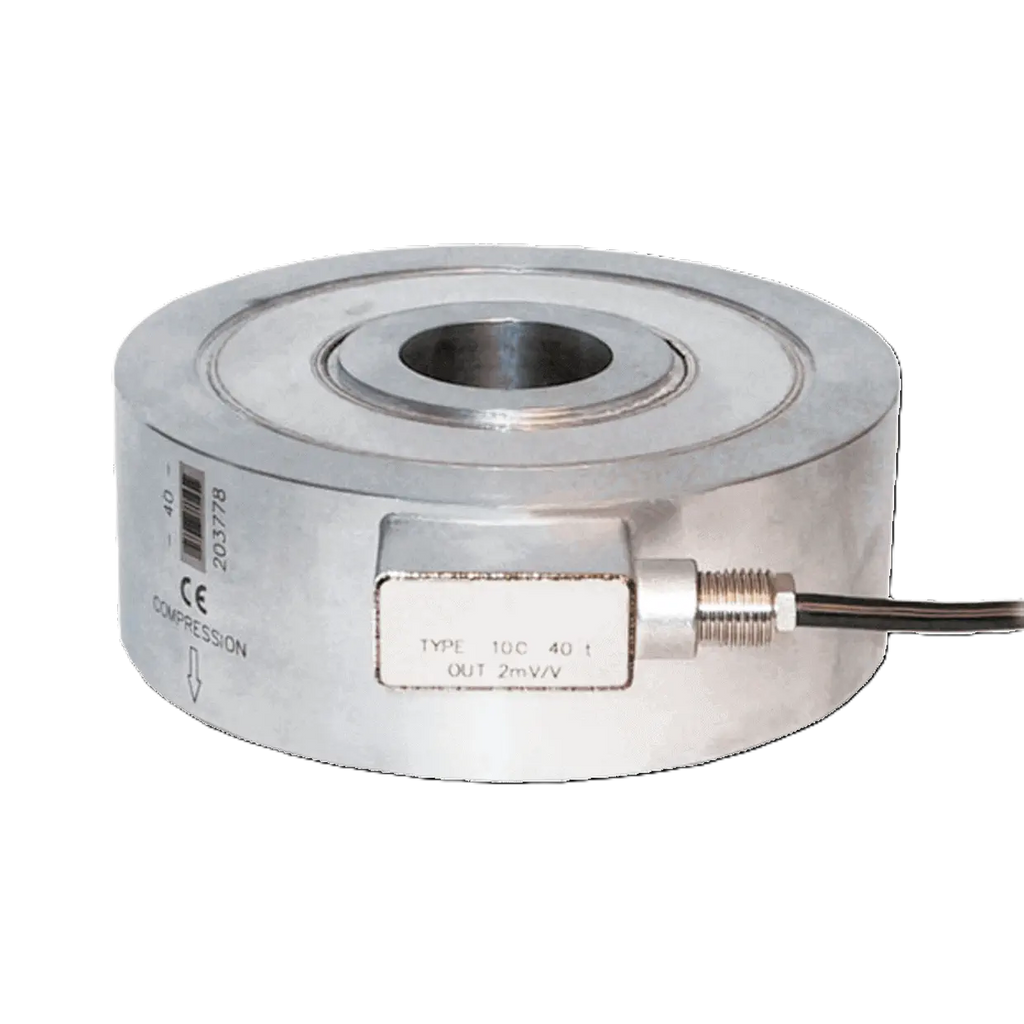

Force measuring rings 10C

The 10C force measuring rings are high-precision force measuring devices for static and dynamic loads in compression and tension. With a nominal load of 10 kN to 1 MN and impressive accuracy, they are ideal for materials testing machines and general test benches. The standard output of 2 mV/V allows for easy integration into existing measurement systems.

The laser-welded force sensor, made entirely of stainless steel, offers high mechanical strength and durability. IP67 protection ensures reliable protection against dust and water, allowing it to be used even under demanding conditions. The sensor's long-term stability guarantees precise measurements over extended periods of use.

Features of the 10C force measuring rings

✅ Designed for nominal loads from 10 kN to 1000 kN

✅ Linearity and hysteresis from 0.10% and 0.20%

✅Material: stainless steel

✅ Protection class IP67

✅ Particularly robust for tough continuous use in industrial applications

✅Compatible with other manufacturers
