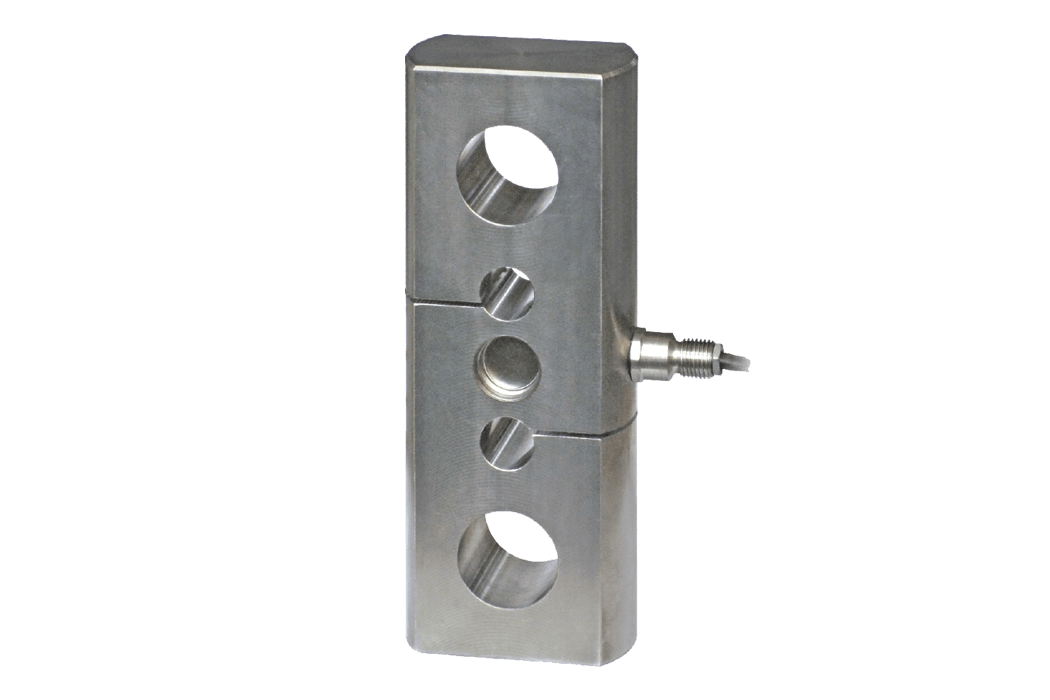

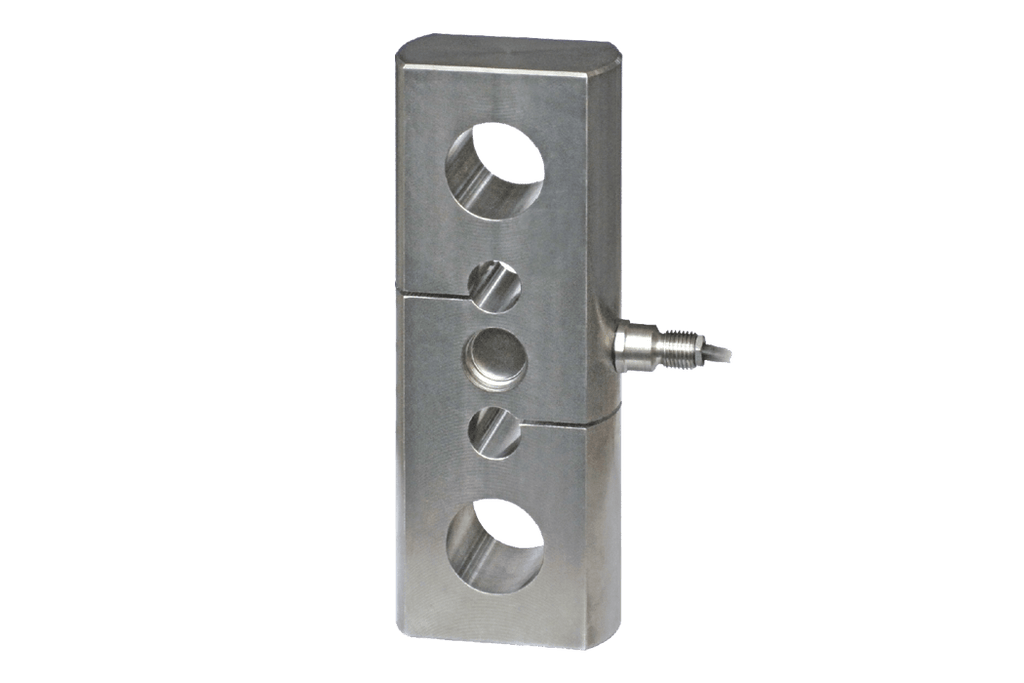

Tension measuring gauges L-TAL

L-TAL tension measuring gauges are perfect for use on large lifting devices and cranes, which usually move high to very high loads. In (container) ports, in offshore applications or on construction sites, safety (and failure) is important when moving goods and loads. People and machines must be protected equally and a smooth process must be guaranteed. Tension measuring lugs, which are placed directly in the force flow to prevent overloading of the machines, ensure that loads are moved safely. Sensors from OCTOGON with proven strain gauge technology guarantee the highest level of safety in use thanks to their first-class quality.

In addition to the L-TAL tension measuring lug, we offer our customers the opportunity to customize tension measuring lugs.

Features of the L-TAL tension measuring gauges

✅Designed for nominal loads from 5,000 kg to 20,000 kg

✅Combined error <±0.03%

✅Material: stainless steel 17-4 PH

✅ ATEX II 1GD and IECEx (Zone 0-1-2-20-21-22) optional on request

✅ Uniform mounting holes for standard shackles

✅High protection class IP68

Datasheet

CAD model:
L-TAL 5000-10000kg CAD model
L-TAL 20000kg CAD model
