Description

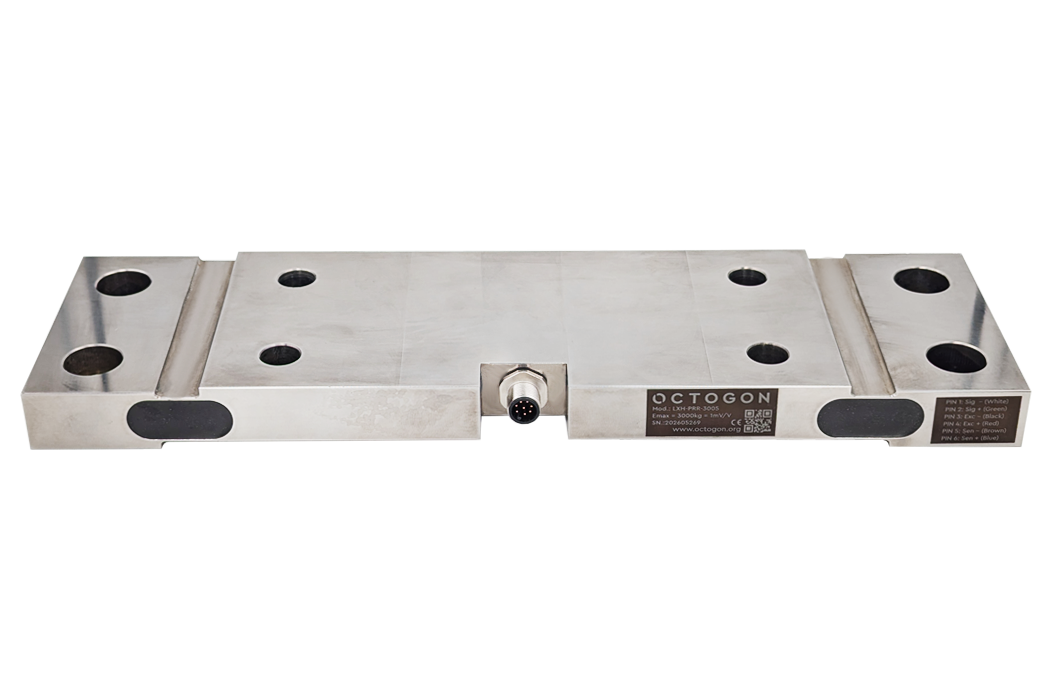

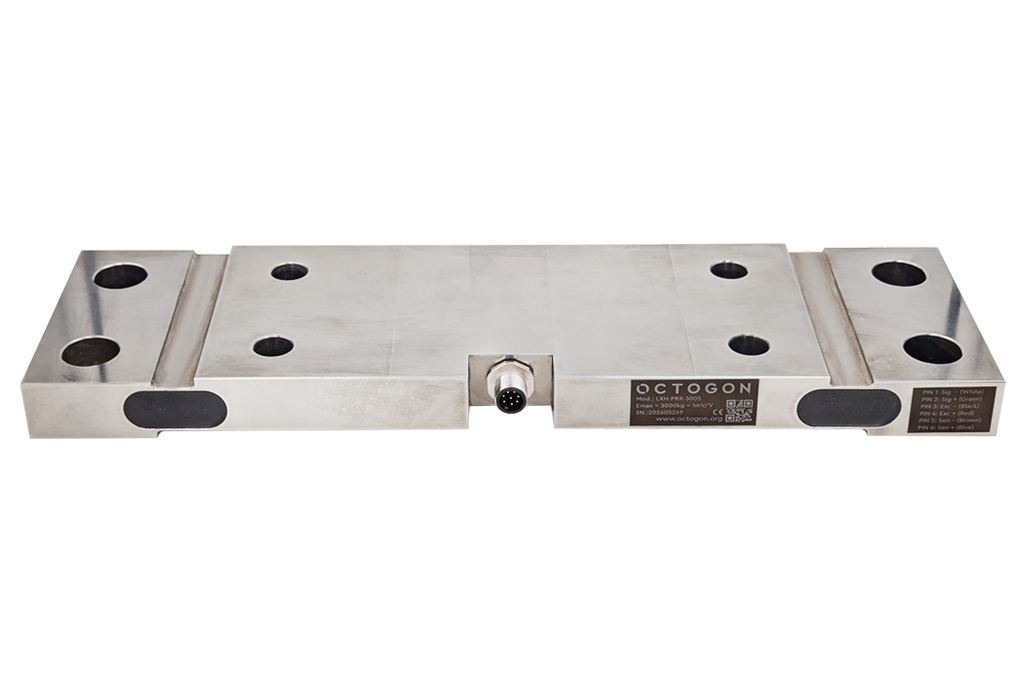

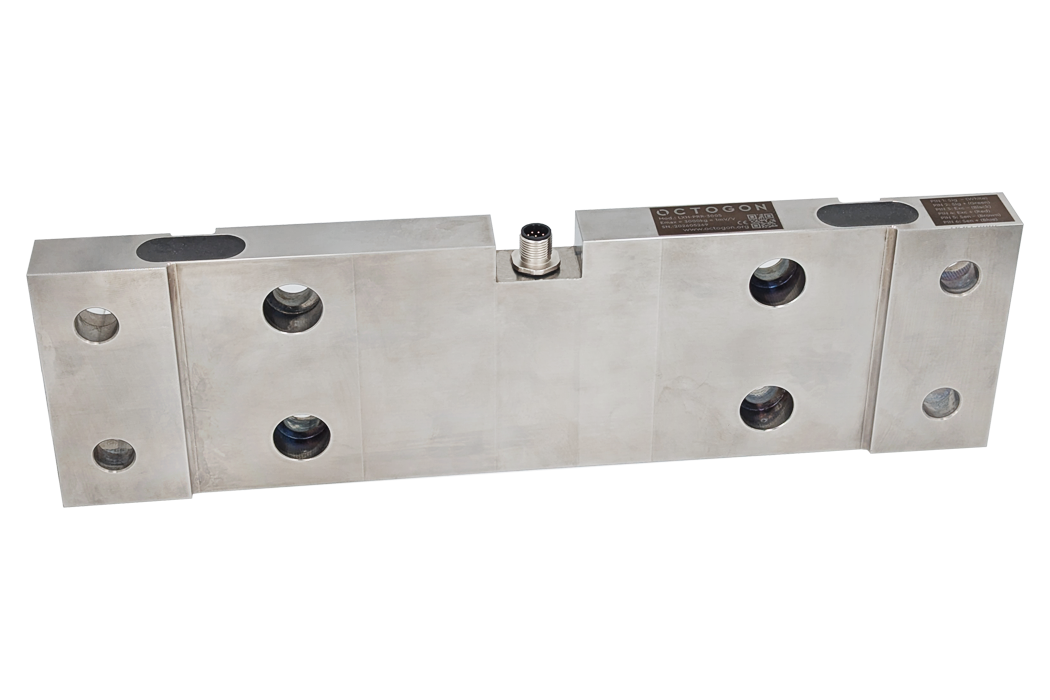

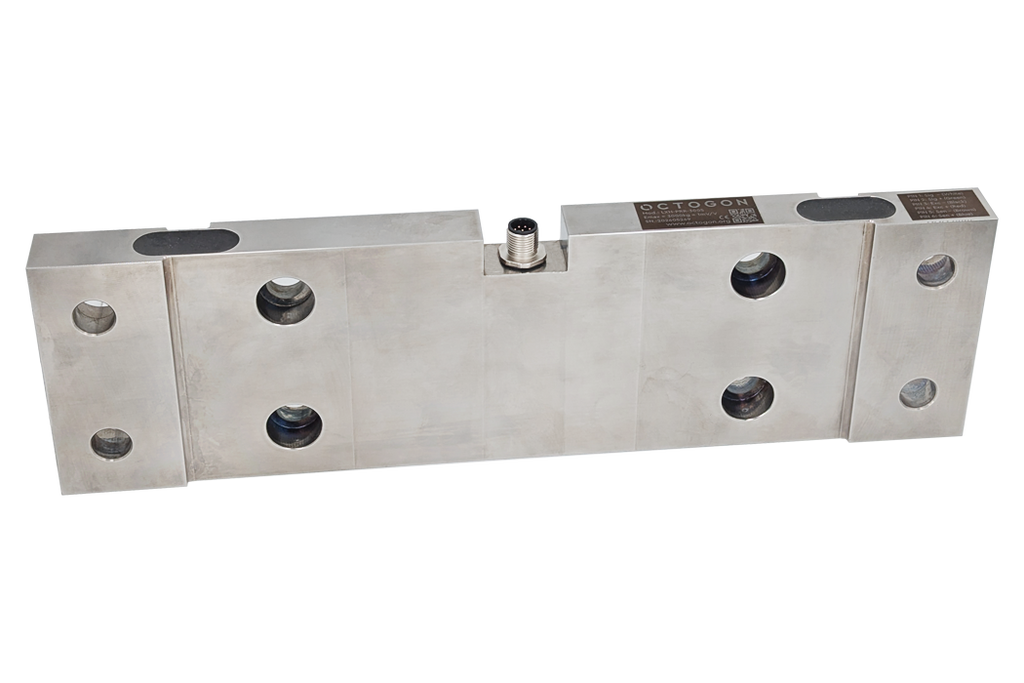

LXH-PRR Plate Load Cell: Compact Force Measurement Specifically for Wheel Blocks and Bearings
Octogon's flat LXH-PRR plate load cell is a highly specialized solution, precisely designed for use with the DEMAG DRS-M 125 wheel block. Thanks to its flat plate design, it can be seamlessly and space-efficiently integrated into your chassis and lifting constructions. Made of robust 17-4-PH stainless steel and certified with the high protection class IP67, this sensor guarantees precise compression force measurements and a long service life even under demanding industrial conditions.
The most important advantages at a glance:
-
Specific Design: Custom-made as a load cell for the DEMAG DRS-M 125 wheel block type.
-
Ideal Rated Load: Designed for an optimal carrying capacity of 3,000 kg (30 kN).
-
Reliable Precision: High measurement accuracy with a combined error of ≤ ±0.2% of full scale.
-
Maximum Mechanical Safety: Designed for a safe overload of 120% to 150% and an enormous breaking load of over 500% of the rated load.
-
Smart Connection: Equipped with a practical M12 connector for fast and secure electrical connection.
-
Certified Quality: The product is fully CE, RoHS, and REACH compliant for the highest industry standards.
Technical Summary:
-
Material: 17-4-PH Stainless Steel
-
Measuring Direction: Compression
-
Rated Output: 1 mV/V ±0.1%
-
Protection Class: IP67
-
Electrical Connection: M12 Connector
