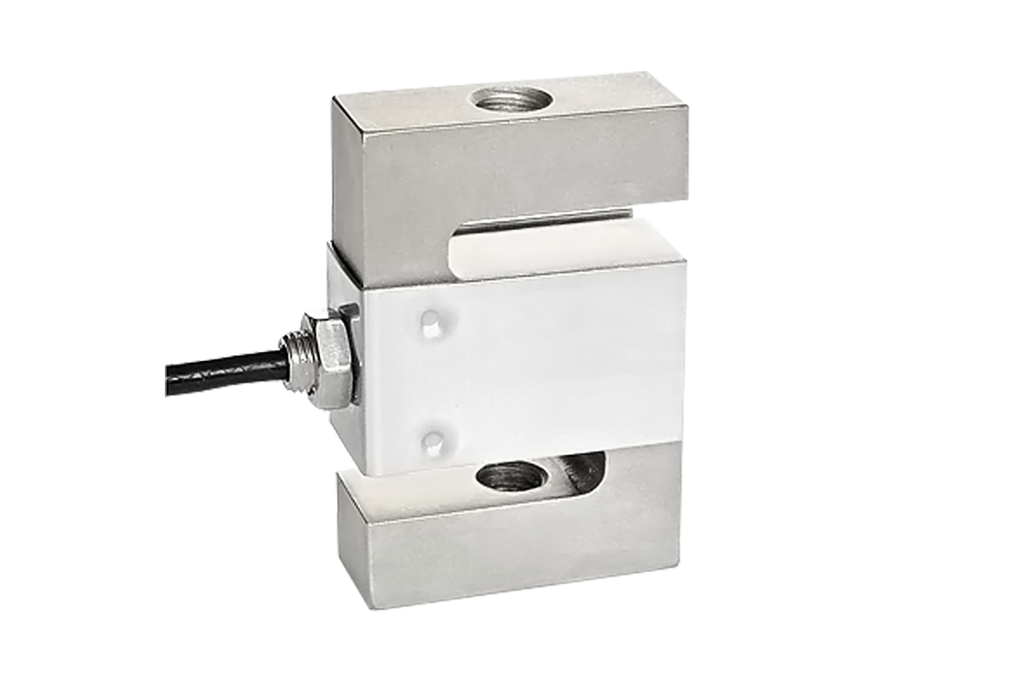

Tension (compression) load cells L-SL

Tension (compression) load cells L-SL made of stainless steel were specially designed for measuring tension and compression and have protection class IP67 (protection against ingress of dust, strong splashes of water or submersion). The spring body of the S-type C3 load cell is located in the middle beam of the S-shape. This is a piece of metal made of stainless steel that deforms under pressure and returns to its original shape when the pressure is removed. This deformation process is measured with a strain gauge (DMS) and converted into an electrical signal. The spring body is deformed by tension or compression at both ends. The S-type C3 stainless steel load cell can be calibrated in weight or force units.

Features of the L-SL tension (compression) Load Cells

✅ Designed for nominal loads from 25 kg to 2500 kg

✅ Combined animal error <±0.02%

✅Material: stainless steel AISI 4340

✅ OIML R60 C3 certified, ATEX II 1GD and IECEx optional

✅Particularly robust for tough continuous use in the industrial sector

✅Compatible with other manufacturers

data sheet

CAD model:
L-SL 25kg
L-SL 100kg
L-SL 200|300|500kg
L-SL 1000kg
L-SL 2500kg
