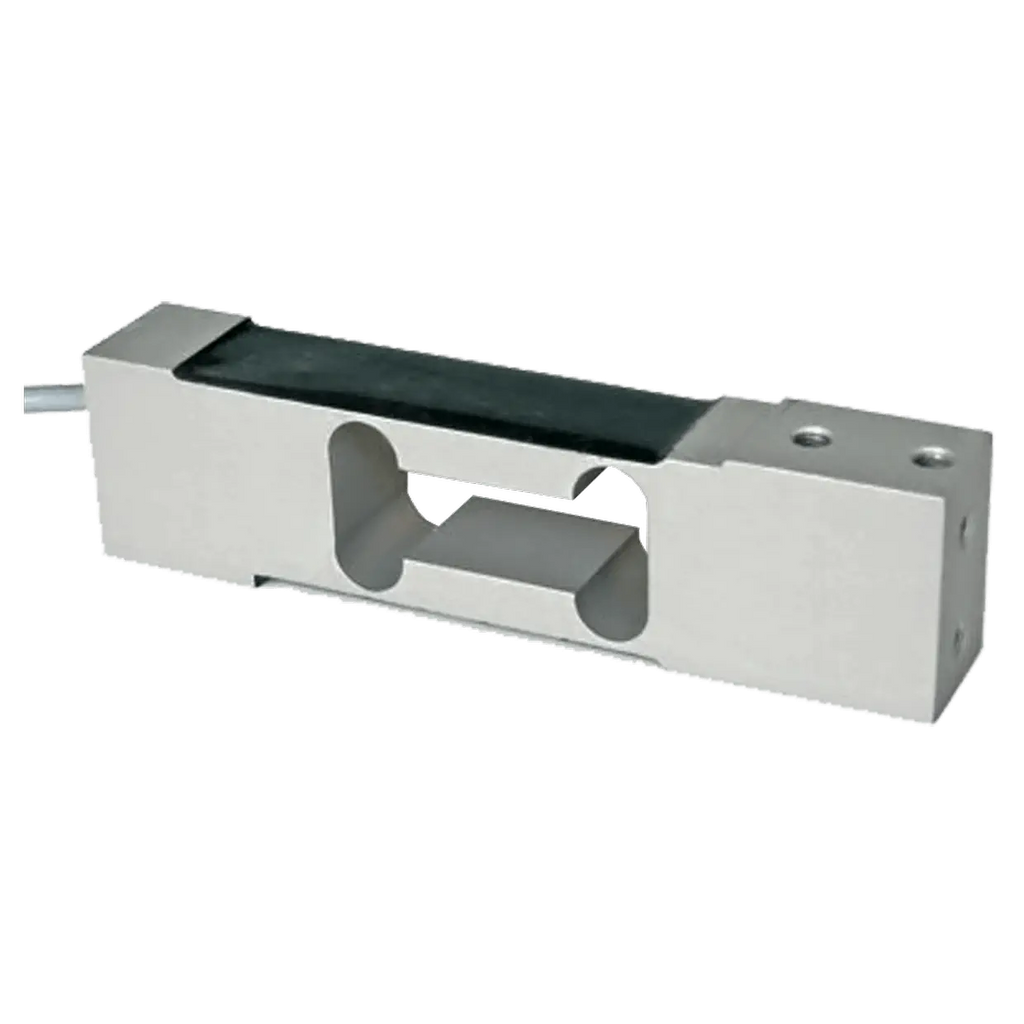

Platform load cells L-AZL
plus VAT plus shipping costs
In stock
Couldn't load pickup availability
L-AZL platform load cells (single-point load cells) were specifically developed for use in applications with high accuracy requirements. These include industrial scales, filling systems, on-board weighing and various applications in the medical field.
When using platform load cells in harsh environments, you can rely on our high-quality aluminum design. These offer you unique IP65 moisture protection and are highly durable even in harsh environments.
Features of the L-AZL platform load cells
✅Designed for nominal loads from 10 kg to 100 kg
✅Combined animal error <±0.02%
✅Material: Aluminum alloy
✅For platforms of size 400x400mm
✅ OIML R60 C3 certified, ATEX II 1GD and IECEx possible
✅Particularly robust for tough continuous use in the industrial sector
✅Compatible with other manufacturers
CAD model:
L-AZL
Applications of platform load cells L-AZL
Platform load cells are particularly suitable for use in platform scales and are technically double-beam load cells. Platform load cells offer precise and reliable weight measurement in various application areas, such as in the food industry, pharmaceuticals, chemicals and similar industries. They have proven themselves in industry due to their robustness, high accuracy and the versatility resulting from these two components. In addition, the load cells enable the measurement of eccentric loads and deliver precise results.
