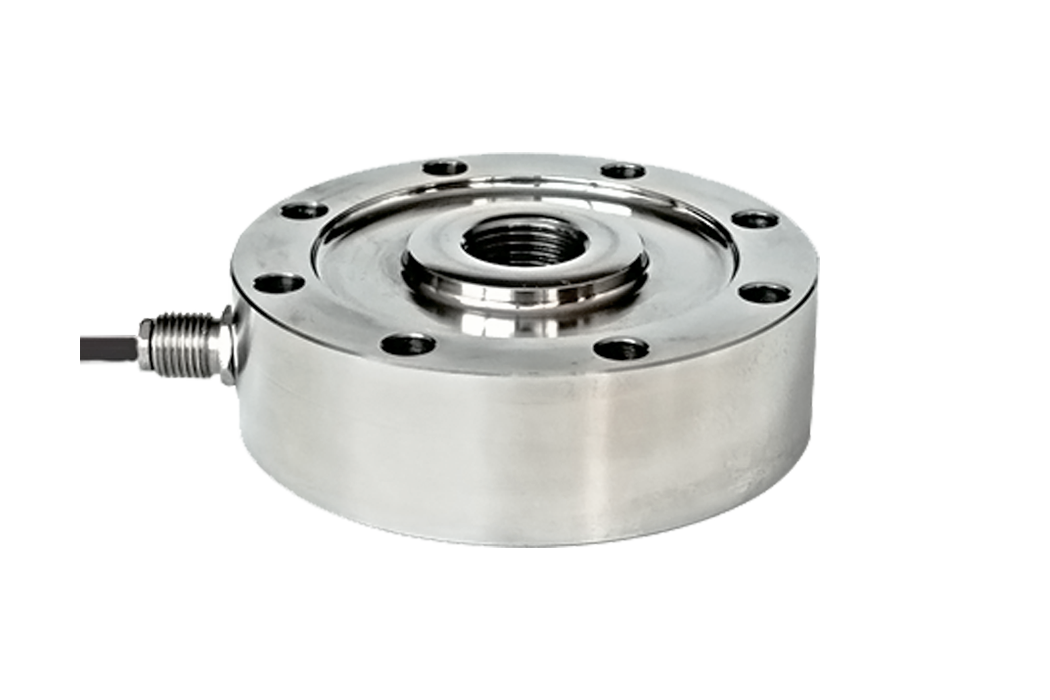

Compression/tension load cells L-CL

Compression/tension load load cells L-CL are designed in a column shape, with the force being introduced centrally. Our pressure load cells are made of stainless steel and have protection class IP67/IP68 . Inside the compression/tension load cells there is a metal spring body that deforms under pressure and converts the deformation into electrical impulses via strain gauges.

Areas of application for compression/tension load cells are scales in the high load range , such as silo scales, heavy-duty scales, machine scales, container scales, coil scales, force measurement during pressing, measurement of compression force or cargo scales.

Features of the L-CL compression/tension load cells

✅Designed for nominal loads from 500 kg to 200,000 kg

✅Combined animal error <±0.05%

✅Material: stainless steel 17-4PH

✅ ATEX II 1GD and IECEx optional

✅Particularly robust for tough continuous use in the industrial sector

✅Compatible with other manufacturers

Datasheet

CAD model:
L-CL 500|1000|2000kg
L-CL 5000|10000kg
L-CL 20000|30000|60000kg
L-CL 100000kg
L-CL 150000kg
L-CL 200000kg
