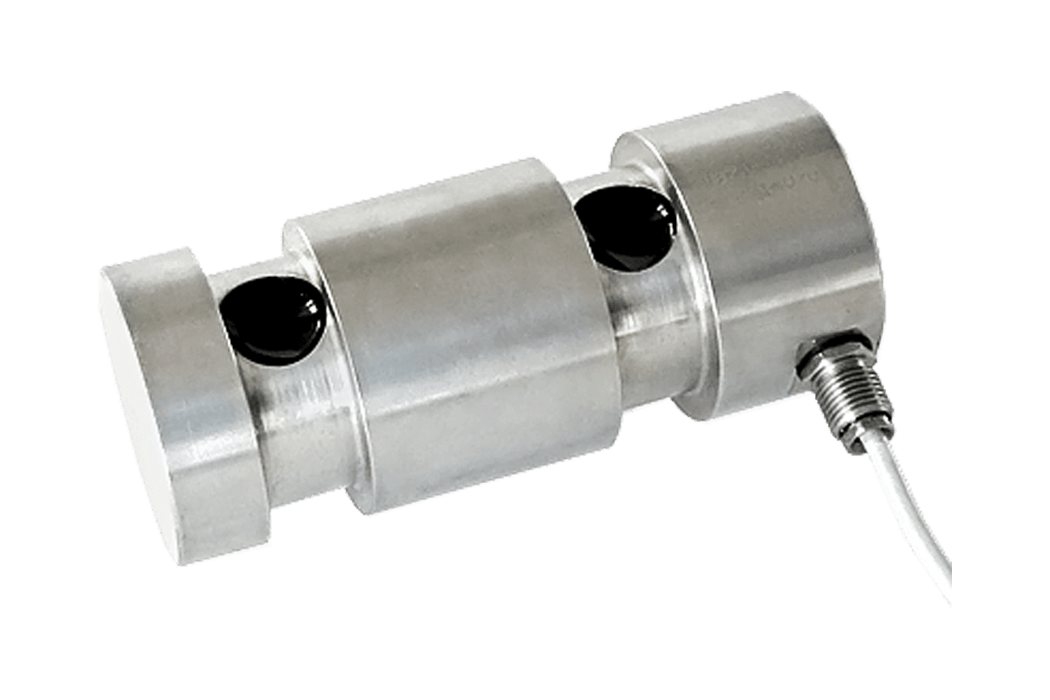

Loadpins L-LAU
plus VAT plus shipping costs
In stock
Couldn't load pickup availability
Loadpins L-LAU can be used individually or as part of a complete measuring system. Sensors of various designs and accuracy classes, in conjunction with our selection of measuring amplifiers, represent an ideal and safe solution for measuring load, force, weight and for preventing overload and overstress in systems.
Features of the L-LAU loadpins
✅Designed for nominal loads from 5000 kg to 20000 kg
✅Combined animal error <±0.1%
✅Protection class IP67
✅Material: stainless steel 17-4PH
✅ ATEX II 1GD and IECEx optional
✅Particularly robust for tough continuous use in the industrial sector
✅Compatible with other manufacturers
CAD model:
L-LAU
Overview of load measuring bolts L-LAU
Load measuring pins are particularly suitable for measuring forces and loads in one-dimensional bearings, such as on shafts or axles. They are often used in testing and measurement technology to record and measure the forces acting on the mechanics. Load measuring pins can be manufactured to customer specifications and are used in floating bearings as well as in fixed bearings. They are often used in the process industry, the food and pharmaceutical industries, and in the chemical and petrochemical industries.
