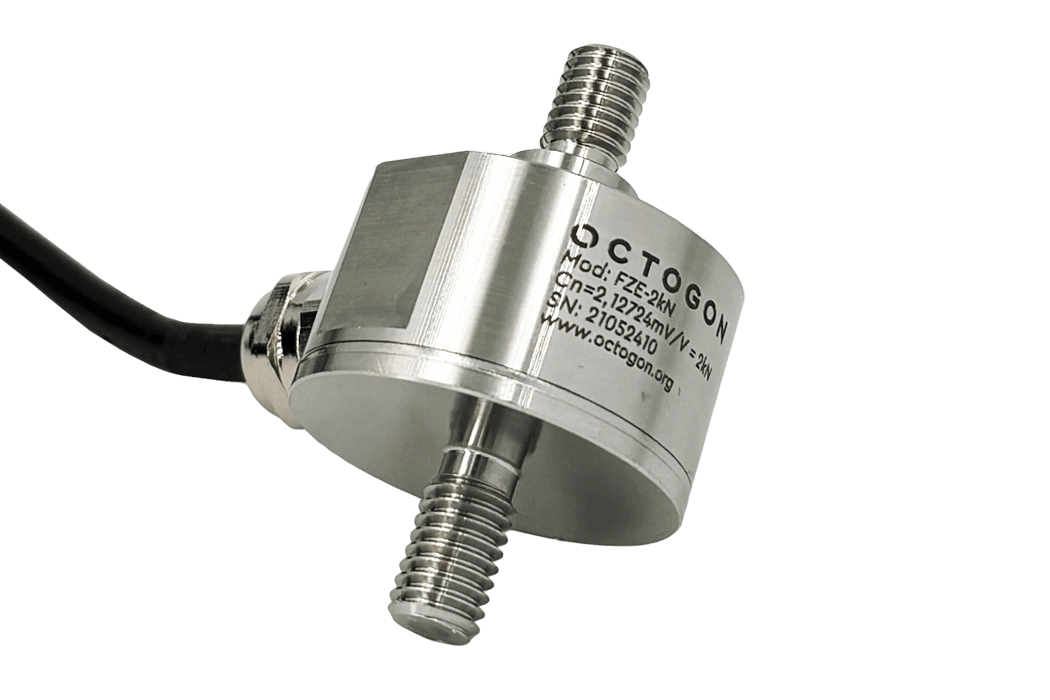

Tension-compression force sensors FZE
plus VAT plus shipping costs
In stock
Couldn't load pickup availability
Tension-compression force sensors FZE have proven themselves in many industrial applications. The force sensors are used as machine scales, cargo scales, silo and container scales, coil scales, heavy-duty scales, and for measuring compressive force, e.g. for measuring force during pressing. The measuring element is laser-welded and particularly robust so that it can withstand all conditions.
Features of the FZE tension-compression force sensors
✅Designed for nominal loads from 0.5 kN to 5 kN
✅Nonlinearity error <±0.2%
✅Material: stainless steel
✅ Protection class IP68
✅Particularly robust for tough continuous use in the industrial sector
✅Compatible with other manufacturers
Overview of tension-compression force sensors FZE
The FZE tension-compression force sensor is the larger and more robust version of the FZB force sensor. It covers a force range of up to 5kN and is suitable for almost all environments thanks to its IP68 certification. The FZE is therefore versatile and delivers reliable measurement results - whether as a scale, when measuring compressive forces or when pressing in. The compatibility with our other measuring electronics and the measuring amplifiers opens up a wide range of possibilities.
