Wireless Radio Transmitter T24
plus VAT plus shipping costs
Out of stock
Couldn't load pickup availability
The wireless radio transmitter T24-ACMi-SA can be used to set up wireless multipoint data acquisition systems for industrial sensor applications.
The T24 Wireless Telemetry Sensor System is a modular wireless solution for industrial sensor applications, for example in conjunction with load cells or force transducers .
Free service
If you purchase the Wireless Bluetooth Transmitter together with a load cell, force transducer or similar, we will connect the sensor and load cell for you free of charge . If we have any questions, one of our sales representatives will contact you.
High-precision, high-quality measurements are possible with simple but powerful configuration and monitoring software.

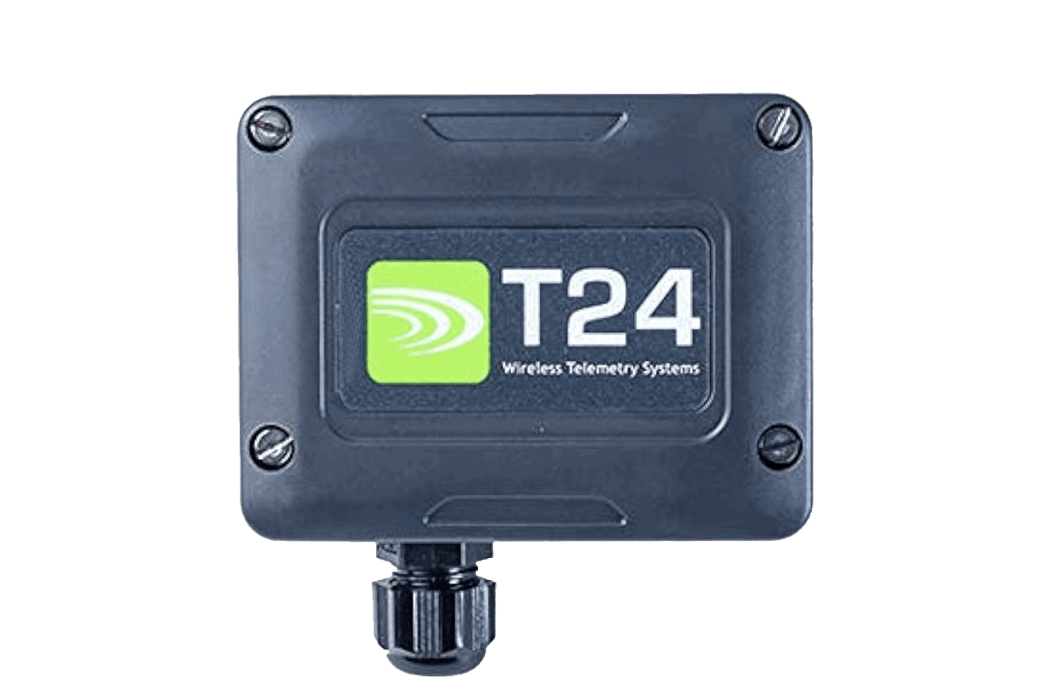

Force and strain transmitter module in a medium weatherproof housing with battery holder for two AA batteries.
Although all T24 modules actually function as both a receiver and a transmitter, they are primarily used as either a transmitter or a receiver. Therefore, they are referred to as transmitters and receivers.
The T24 system is designed to allow senders to send messages at a user-defined rate. Receivers can then analyze, display, or perform other actions on that data depending on their role.
A PC and a base station are only required to configure the modules, although they can be part of a data acquisition system.
Once configured, the T24 modules operate autonomously and only minimal control of the transmitter or receiver modules is required, such as sleeping or waking.
Free Software for Wireless Radio Transmitters
There are two free software setups for Windows PC.
- T24 Toolkit is used to configure and calibrate the modular telemetry system
- T24 Log100 is the logging and visualization software for monitoring and data collection
The registration- and fee-free radio telemetry in the 2.4GHz band enables secure transmission and coexistence alongside other wireless systems such as WLAN, Wi-Fi, Bluetooth® and Zigbee®.
Features telemetry system
✅Wireless range up to 500 m (1,600 feet)
✅Miniature telemetry module with dimensions 76 x 24 x 20 mm
✅Ideal for load cells, force transducers, pressure, linear displacement, accelerometers, inclinometers and other current and voltage input sensors
✅Ideal for applications with rotating parts
✅Optional battery pack (on request)
✅The electronics ensure exceptionally low power consumption and thus a long battery life (up to 5 years)
✅Remote controlled switching on and off
✅High speed: 200 updates per second
✅High resolution of up to 1 part in 400,000 (18bit)
The acquisition modules integrate sensors with voltage and current outputs as well as strain gauges (especiallyload cellsandforce transducer), DC bridges and transducers wirelessly into an existing acquisition system. Each acquisition module has an input and sends the sensor data with its module ID to the various receiving modules such as the base station on the PC, handheld displays or wireless printers.
Ready-made Windows software is available for configuring the system and for collecting, analyzing and displaying data. Also available are free toolkits and SDKs as native Windows DLLs, ActiveX-Com objects or as .NET assemblies, for example for your own LabView projects.
