Weight transmitter L-TLB

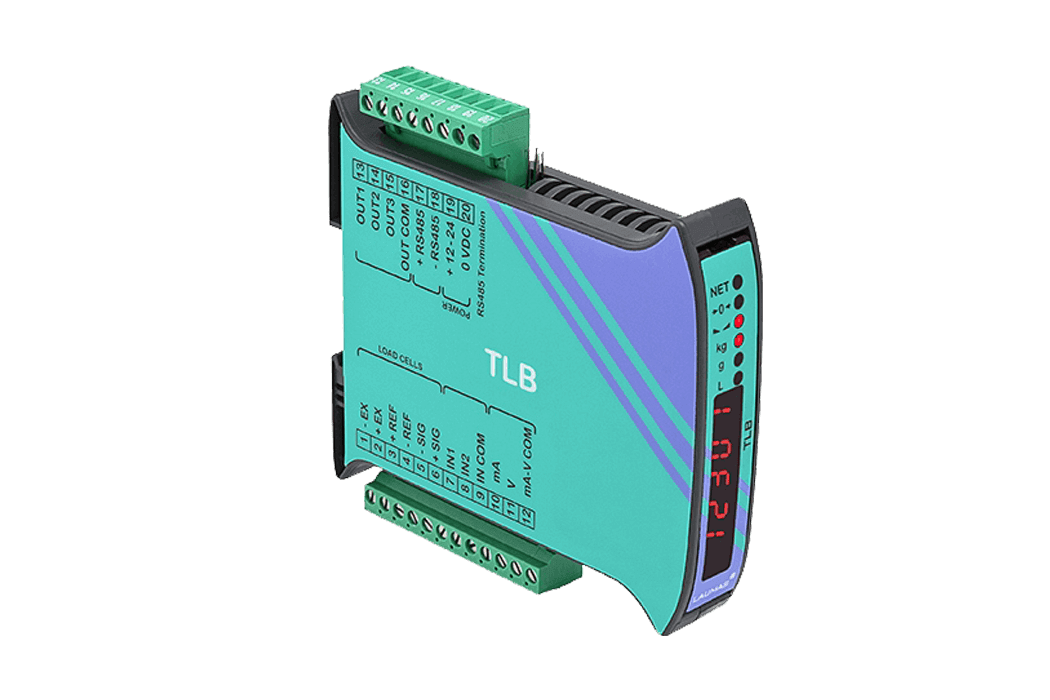

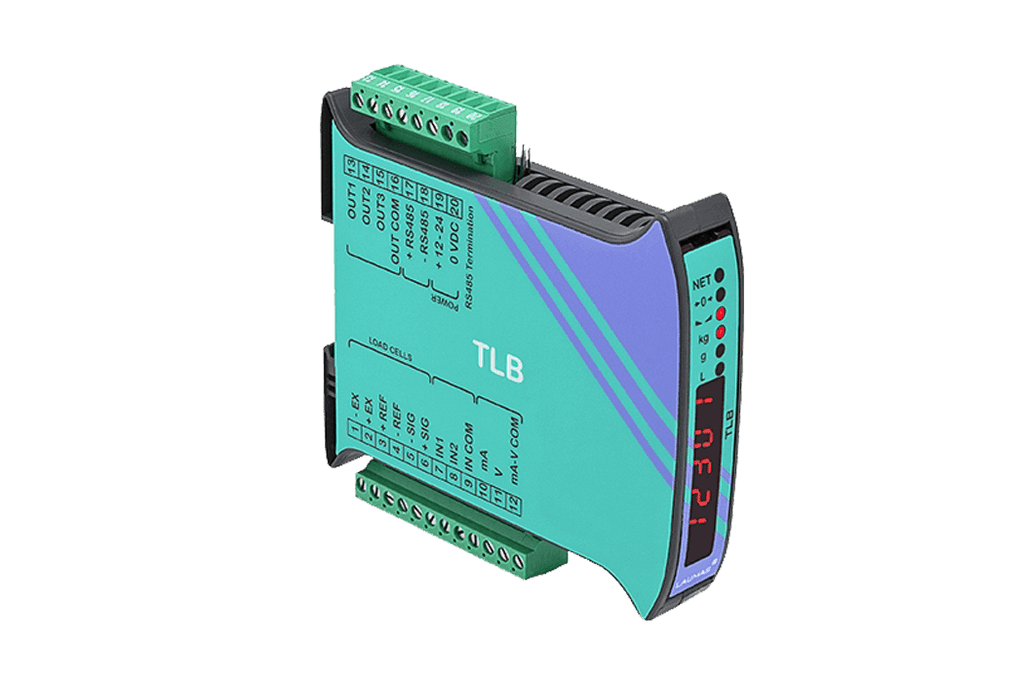

Weight transmitters L-TLB serve as an interface between the load cell , weighing platform or other strain gauge sensors and a PLC unit in industrial applications. Weighing transmitter indicator with 6-digit red LED display (8 mm digit height). Compact design with space-saving, narrow construction. 4 buttons for system calibration. 6 display LEDs. Dimensions: 25 x 115 x 120 mm.

Features of the L-TLB weight transmitters

✅Weighing transmitter for installation on the rear wall of the control panel on
Omega/DIN rail

✅6-digit semi-alphanumeric red LED display
(8 mm digit height)

✅Serial interface RS485 for communication via protocols
ModBus RTU, ASCII Laumas or continuous unidirectional
transmission

✅3 relay outputs controlled with setpoints or via protocols

✅2 opto-isolated digital PNP inputs: status reading via serial
communication protocols

✅1 load cell input

✅The analog output enables the output of:
Current signal: 0...20 mA; 4...20 mA (up to 300 Ohm)
Voltage signal: 0...10 V; 0...5V; ±10V; ±5 V (min 10k Ohm)
