Weight indicator L-W200
plus VAT plus shipping costs
In stock
Couldn't load pickup availability

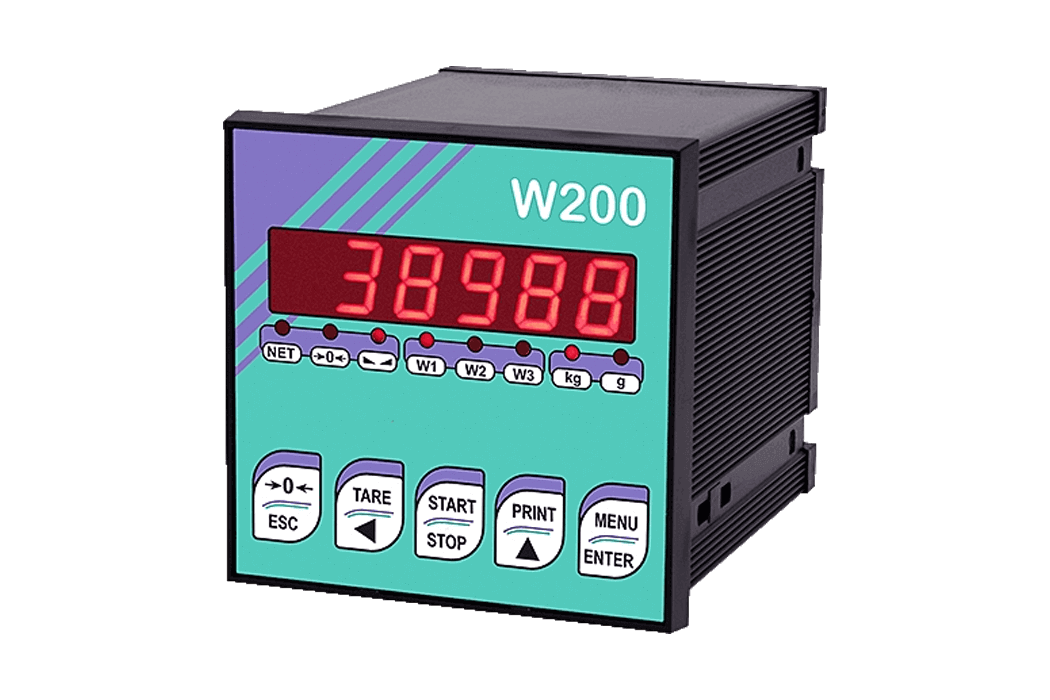

Weight indicator L-W200 in a box according to DIN standard with dimensions 96 x 96 x 130 mm designed for industrial use. The front panel is certified to protection class IP54 and equipped with a 5-key membrane keyboard and 8 display LEDs . The weighing indicator also offers a clock and calendar function.
Features of the L-W200 weight indicators
✅Installation on the control panel front; wall
✅Multiprogram: Dosing single product loading/unloading and multi-product, max 99 formulas
✅6-digit red LED display (14 mm digit height)
✅Interfaces RS485/RS232 (protocols Modbus RTU/ASCII)
✅ 3 digital inputs, 5 relay outputs
✅ OIML R76:2006 , Class III, 10000 calibration values 0.2μV/VSI certified
✅ OIML R61 - WELMEC Guide 8.8:2011 ( MID) certified
✅A/D converter 24 bit (16000000 digits) 4.8 kHz
✅ Fieldbuses on request: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP for remote control (web connection to PC, smartphone, tablet, etc.)
CAD model:
L-W200
Overview of the L-W200 weight indicator
The L-W200 weight indicator shares many features of the more compact L-W100 version and offers additional functions to provide a clear overview even in complex industrial environments. It is possible to connect up to 14 products to the weighing indicator, meaning it can play a major role in data monitoring in a small space. In addition to its use in weighing technology, the L-W200 has also proven itself in dosing technology and in all areas that have high demands on accuracy and reliability.
