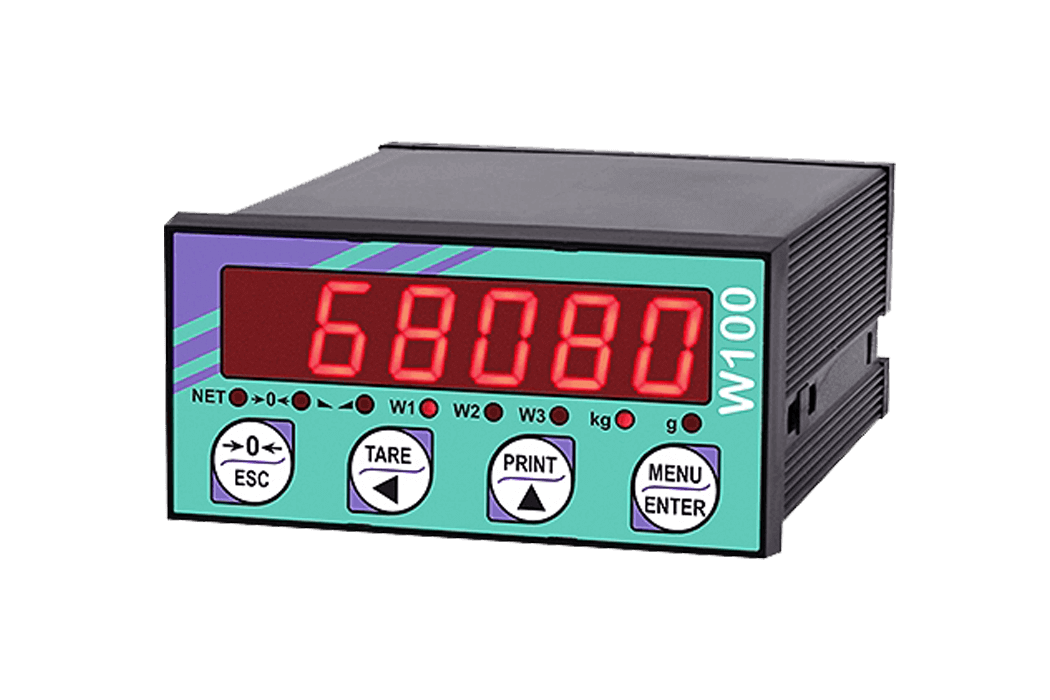

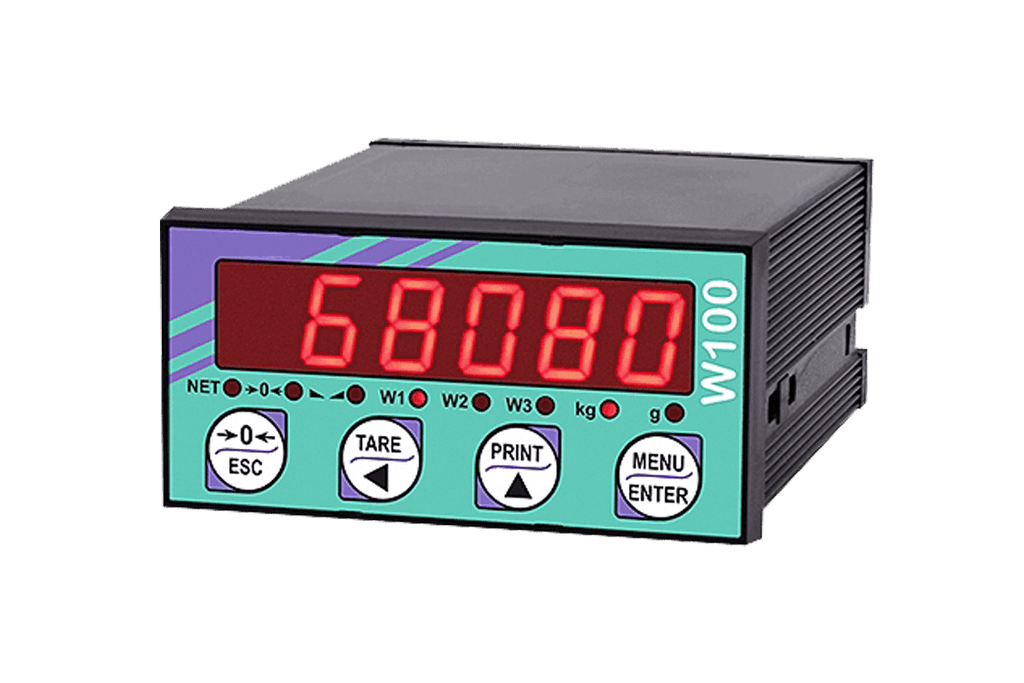

Weight indicator L-W100

Weight indicator L-W100 in a box according to DIN standard with dimensions 96 x 48 x 130 mm for use in industry. The front panel is certified to protection class IP54 and equipped with a 4-key membrane keyboard and 8 display LEDs. The weight indicator also offers a clock and calendar function.

Features of the L-W100 weight indicators

✅Installation on the control panel front

✅6-digit red LED display (14 mm digit height)

✅Interfaces RS485/RS232 (protocols Modbus RTU/ASCII)

✅ 3 digital inputs, 5 relay outputs

✅ OIML R76:2006 , Class III, 10000 calibration values ​​0.2μV/VSI certified

✅ OIML R61 - WELMEC Guide 8.8:2011 ( MID) certified

✅A/D converter 24 bit (16000000 digits) 4.8 kHz

✅16 bit analog output. 0/4-20 mA; 0-5/10 V; ±5/10 V - on request

Datasheet

CAD model:
L-W100
