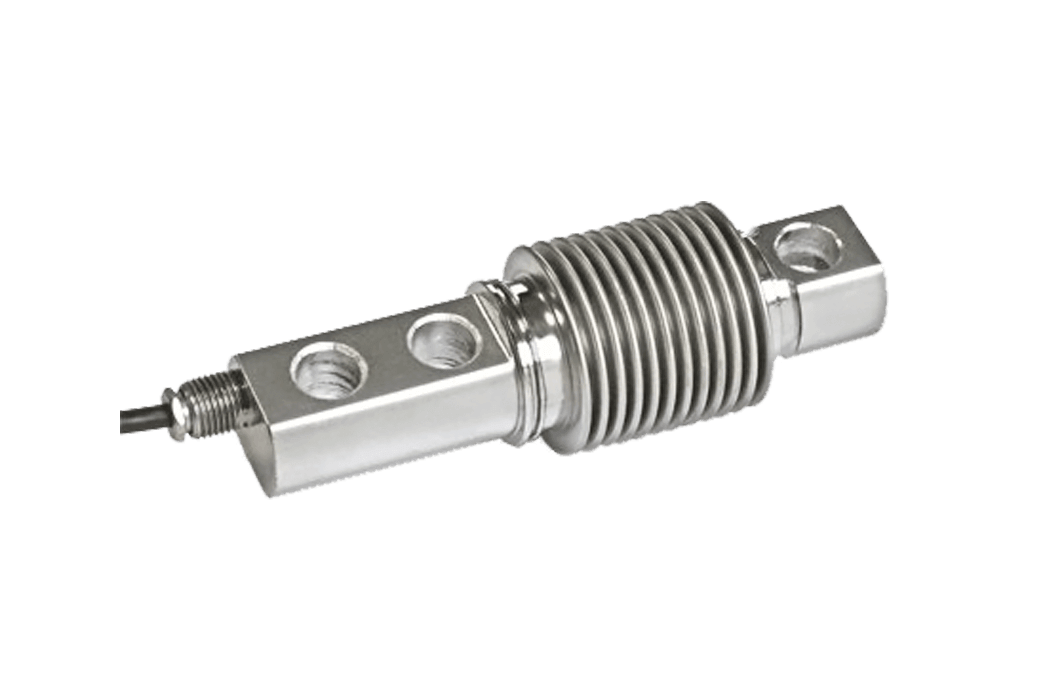

Bending beam and shear beam load cells L-FCAX

Regular price 231,00 EUR
Regular price Sale price 231,00 EUR
Sale Sold out
Shipping calculated at checkout.

plus VAT plus shipping costs

Nominal load [kg]

In stock

Bending beam and shear beam load cells L-FCAX are characterized by their diverse areas of application.

The hermetically sealed welded bellows with protection class IP68 allows use even under harsh operating conditions. The L-FCAX load cells are made of nickel-plated, alloyed stainless steel and are characterized by high accuracy , linearity and high stability. Our load cells are also available with weighing modules.

Features of the L-FCAX bending beam and shear beam load cells

Bending beam: Designed for nominal loads from 30 kg to 500 kg

Shear beam: Designed for nominal loads from 750 kg to 1500 kg

✅Combined animal error <±0.02%

✅Material: stainless steel AISI 420

    ATEX II 1GD and IECEx optional

    ✅Particularly robust for tough continuous use in the industrial sector

    ✅Compatible with other manufacturers



    data sheet

    CAD model:
    L-FCAX CAD model

    View full details

    Applications of bending beam and shear beam load cells L-FCAX

    Bending beam and shear beam load cells are particularly suitable for use in filling machines, industrial floor scales, container and silo scales, belt scales, platform scales, tank scales, dosing and bagging scales, overhead conveyor scales, weighing of small tanks and floor scales as well as for packaging machines in the process industry.
