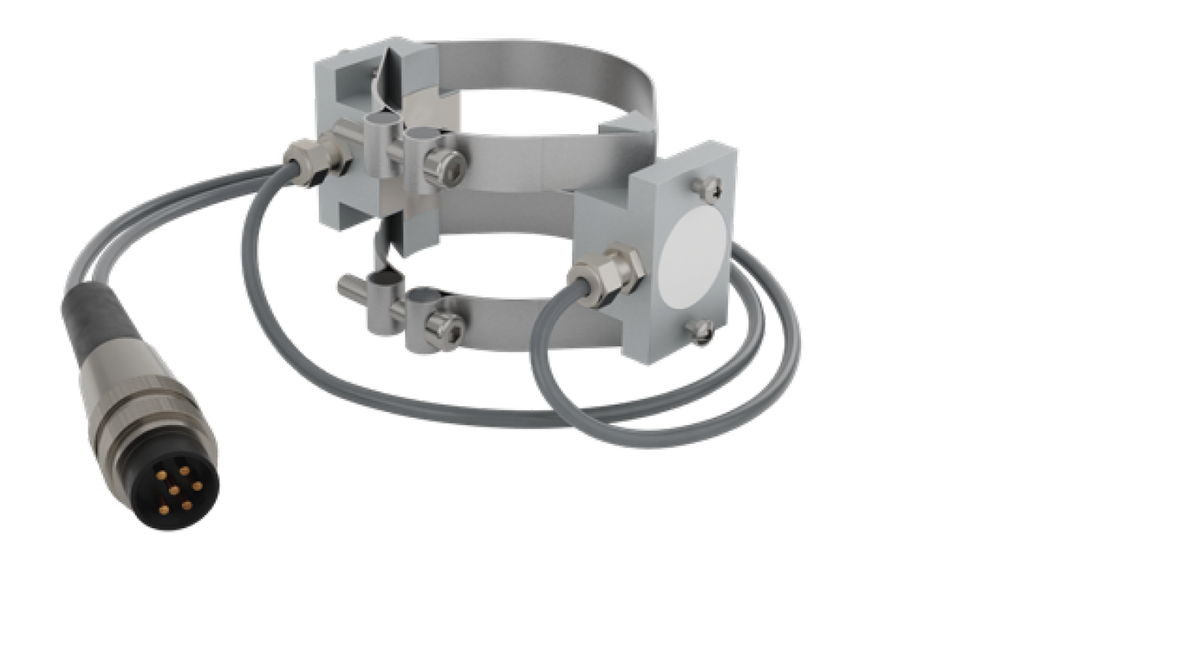

DKFC Tie-Bar Strain Sensor GE1029

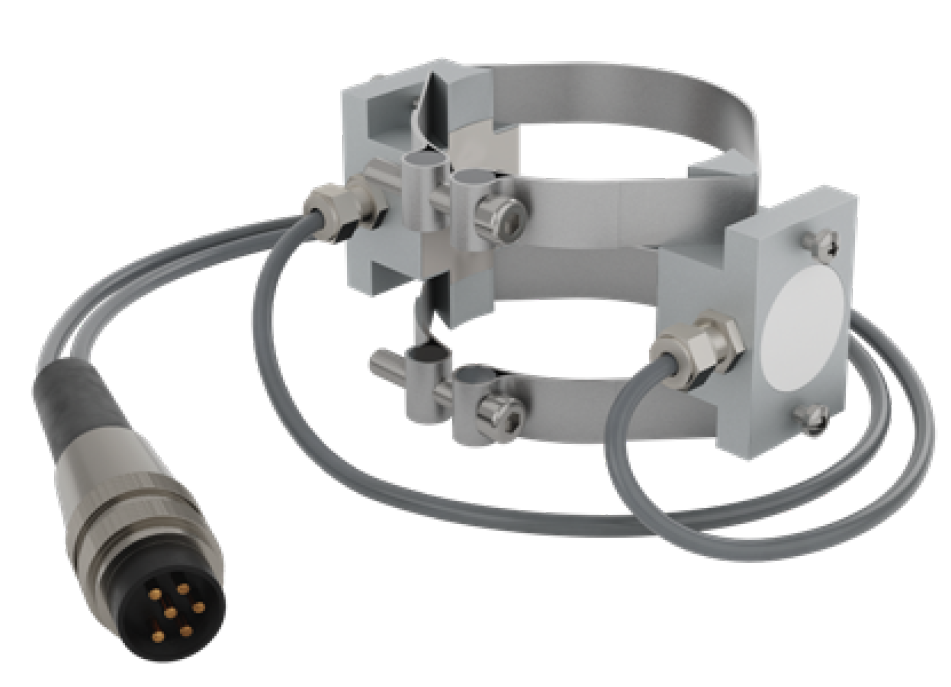

Clamping force read on the tie bar itself: two stainless steel belts hold the DKFC around the bar and press the foil strain gauges, protected under a stainless film, so firmly against the surface that friction takes over the task of the adhesive.

The reading is the surface strain, in the same quality as a bonded gauge, and it is available within minutes instead of the better part of an hour. One sensor covers every tie bar from 25 to 400 mm – only the pair of belts changes with the diameter, and it changes every 2.5 mm of it. Mounting is non-destructive: nothing is drilled, welded or glued, and a sensor taken off one machine goes onto the next without being recalibrated. A tie bar fitted with one becomes a load cell in its own right.

Measurement

• Direct reading of the surface strain, like a bonded strain gauge
• Range ± 1000 µε, high accuracy and linearity in tension and compression
• 350 Ω foil bridge, GF = 2.0
• Sensitivity tolerance ± 0.2 %, hysteresis < ± 0.2 %, repeatability < 0.1 % of full scale
• 2/4 bridge or 4/4 full bridge, depending on version
• Cannot be overloaded – an offset appears; the sensor is reset cyclically
• Supply 5 V DC, 8 V DC at most, current draw below 15 mA
• Static and dynamic applications

Mounting and use

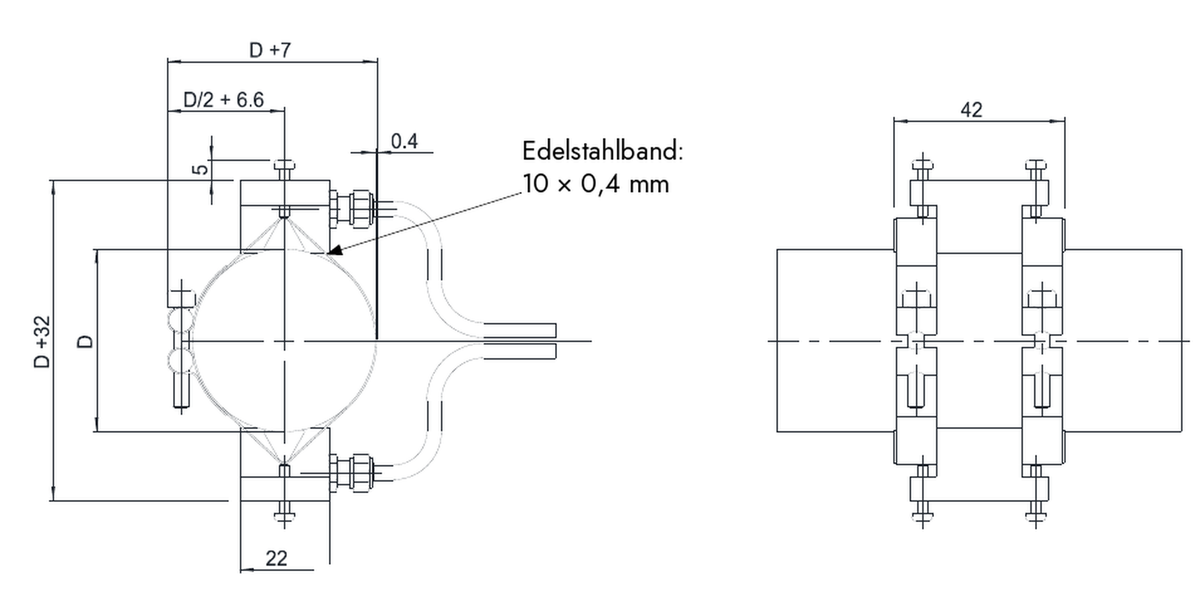

• Two stainless steel belts, 10 × 0.4 mm – no drilling, welding or gluing
• One sensor for tie bars from 25 to 400 mm; one pair of belts per diameter, tolerance ± 2.5 mm
• Tightening torque 2.0 N·m on the M4 screws, surface finish N7
• Non-destructive, quick and repeatable
• No recalibration between removal and refitting
• Protection IP64, anodised aluminium housing
• Cable 2 × PVC, screened, 2 × 0.14 mm², Ø 3.5 mm

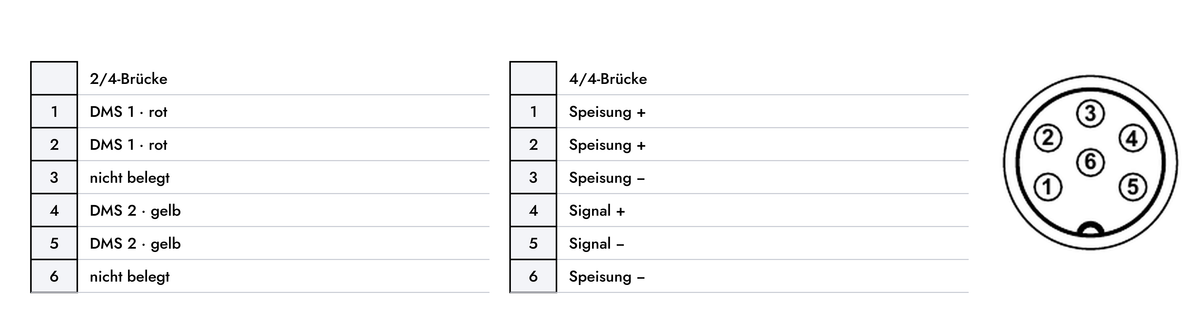

• Six-pin connector or open ends with the 2/4 bridge; lengths 0.5 m, 3 m, 5 m and 10 m
• For presses, injection moulding and die casting machines

What you need with it

The sensor is passive and works into any strain gauge amplifier; the VDA and DU families are the matching ones. The belts that hold the sensor on the bar depend on the diameter and are ordered separately – tell us the bar diameter and we will include the right pair.
