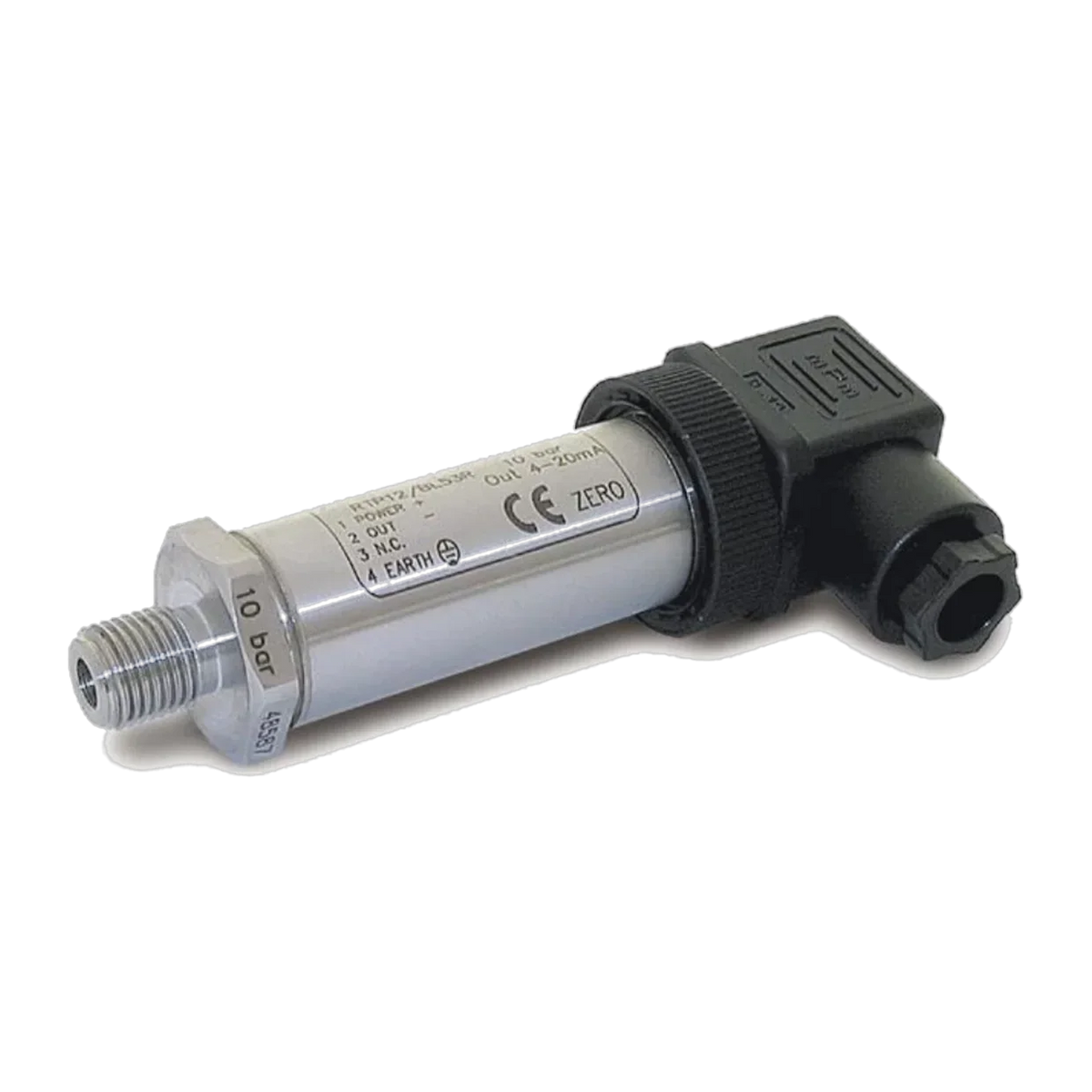

PRAE Absolute Pressure Transmitter TP12

The PRAE provides a conditioned standard signal: 4–20 mA in two- or three-wire technology, optionally 0–5 V or 0–10 V. Designed for systems and test benches that process the signal without an additional measuring amplifier. The measuring body is a piece of 17-4 PH stainless steel, fully laser-welded and resin-potted. Linearity and hysteresis are ≤ ±0.20 %.

Nominal pressure via selection: relative 100, 250 and 500 mbar as well as 1, 2.5, 5, 10 and 20 bar (zero point at atmospheric pressure), absolute 1, 2.5, 5, 10, 20, 50, 100, 250, 350, 500, 700, 1000, 1500 and 2000 bar (zero point in absolute vacuum). The price depends on the measuring range and sensitivity.

Technical Data

• Output: 4–20 mA (two- or three-wire) · 0–5 V or 0–10 V · Linearity and hysteresis ≤ ±0.20 %, calibration tolerance ≤ ±0.1 % · Load min. 3 kΩ (voltage), 0 to 470 Ω (current).

• Temperature effect: Zero point ≤ ±0.015 %/°C, characteristic value ≤ ±0.015 %/°C · Zero point ±10 %, adjustable internally under the nut.

• Response frequency: 0.5 to 5 kHz.

• Power supply: 12–24 Vdc at 4–20 mA and 0–5 V, 15–24 Vdc at 0–10 V, maximum 28 Vdc · Current consumption 30 mA (three-wire) or 20 mA (two-wire) · Insulation resistance > 2 GΩ.

• Connection: DIN 43650-A plug according to ISO 4400 · optionally M12×1, 4-pin plug, with molded shielded PVC cable, 3 m.

• Temperature: -10 … +70 °C · Protection class IP65 according to EN 60529.

• Process connection: G 1/4″ male thread, from 1000 bar G 1/2″ · also BSP male thread. Tightening SW 27 with 28 N·m.

• Dimensions: Ø 25 mm, length 109 mm with DIN plug, 83 mm with M12×1 · Seat diameter ØF 6 mm up to 10 bar, 7 mm from 20 bar.

• Pressure limits: continuous 100 %, permissible 150 %, bursting > 300 %, highly dynamic 75 % of nominal pressure.

Application and Conformity

Pneumatics and hydraulics, process control in food technology, refrigeration systems (vacuum) and level measurement; test benches, material testing machines, laboratory and research. CE, RoHS and REACH; EN 61326-1 and EN 61010-1; quality system according to EN ISO 9001. For versions from 20 bar, a declaration of conformity for food contact according to (CE) 1935/2004 and (CE) 2023/2006 (GMP) is available, material 17-4 PH (WN 1.4542).

On request: Calibration certificate · accredited calibration certificate according to ISO/IEC 17025.
