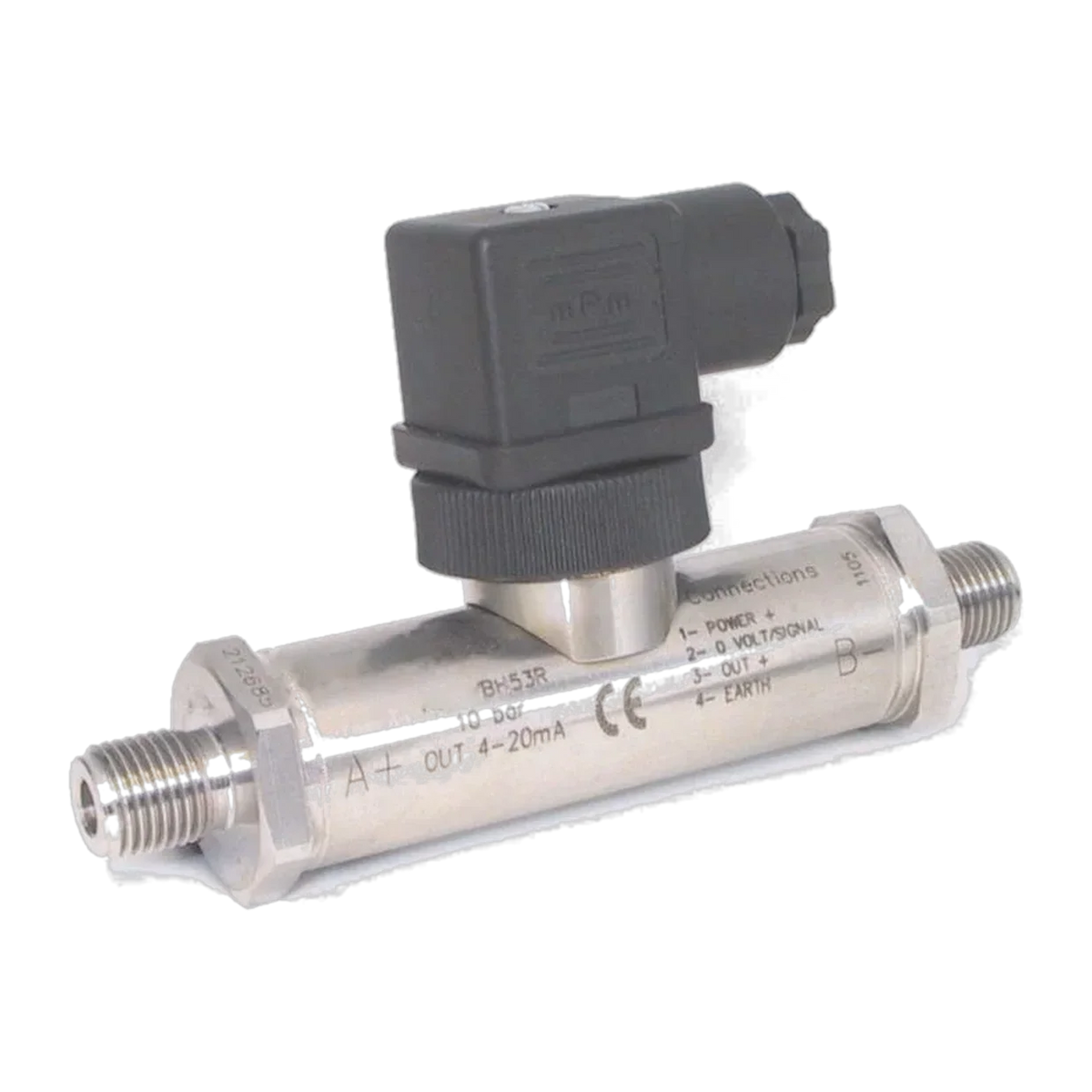

PDAB Differential Pressure Transmitter DF2

The PDAB measures the difference between two ports, A+ and B−, and outputs 4–20 mA in three-wire technology; optionally ±5 V or ±10 V. It is designed for differential measurements where high static pressure is present on both sides. The measuring cell is a monolithic piece of 17-4 PH stainless steel, fully laser-welded and resin-potted. The sensitivity can be adjusted by ±75%, allowing one sensor to cover multiple ranges. The price depends on the measuring range and sensitivity.

Nominal pressure selectable: Differential pressure 0.5, 1, 2.5, 5, 10 and 20 bar (zero point at atmospheric pressure). In addition, the datasheet lists static ranges of 50, 100, 250, 350, 500, 700, 1000, 1500 and 2000 bar (zero point at absolute vacuum); the three highest of these feature G 1/2″ process connection.

Technical Specifications

• Output: 4–20 mA (3-wire) or ±5 V or ±10 V · Linearity and hysteresis ≤ ±0.20%, in LabDF2 version ≤ ±0.05% · Calibration tolerance ≤ ±0.1%.

• Sensitivity and zero point: Sensitivity adjustable by ±75% · Zero point position ±10%, adjustable · Internal zero point adjustment, accessible after unscrewing the connector · Reference temperature +23 °C.

• Temperature influence: Zero point ≤ ±0.015%/°C, characteristic value ≤ ±0.015%/°C · Response frequency 0.5 to 1 kHz.

• Power supply: 12–24 Vdc at 4–20 mA and ±5 V, 15–24 Vdc at ±10 V, maximum 28 Vdc · Current consumption 30 mA (3-wire) · Load 0 to 470 Ω in current mode, minimum 3 kΩ in voltage mode · Insulation resistance > 2 GΩ.

• Connection: DF2 with DIN 43650-A connector · LabDF2 with M12×1 and 4-pin shielded cable, 3 m · Protection class IP65 according to EN 6059.

• Temperature: Operation -10 … +70 °C · Storage -20 … +80 °C.

• Process connection: two external threads G 1/4″, A+ and B−, for the highest ranges G 1/2″ · Tightening SW 27 with 28 N·m · Sealing USIT ring A 63-11 up to 700 bar, A 63-18 up to 1000 bar, above that double clamping ring in a sharp-edged bore Ø 6 to Ø 7.

• Material and dimensions: Measuring cell 17-4 PH stainless steel, monolithic, fully laser-welded and resin-potted · Ø 25 mm, 118 mm across connections · Overall height 76 mm for DF2, 57 mm for LabDF2 · Connections A+ and B− each 15 mm from the end.

• Pressure limits: permanent 100%, permissible 150%, burst > 300%, highly dynamic 75% – each based on the nominal pressure of the ordered version.

Application and Conformity

Filter and pump monitoring at high line pressure, flow measurement via an orifice in the hydraulic circuit, and level in pressurized vessels. CE, RoHS and REACH; EN 61326-1 (2013) and EN 61010-1 (2013); Directives and Regulations 2014/30/EU, 2014/35/EU, 2011/65/EU (RoHS), 2012/19/EU (WEEE) and 1907/2006 (REACH); Quality system according to EN ISO 9001, Dasa-Rägister IQ-1100-01. The manufacturer's declaration of conformity dated 01.04.2016 covers all versions listed in the sales catalog.

On request: Calibration certificate. As an option, the LabDF2 laboratory version with ≤ ±0.05% for the differential ranges 10 and 20 bar as well as voltage output ±5 V or ±10 V instead of 4–20 mA.
