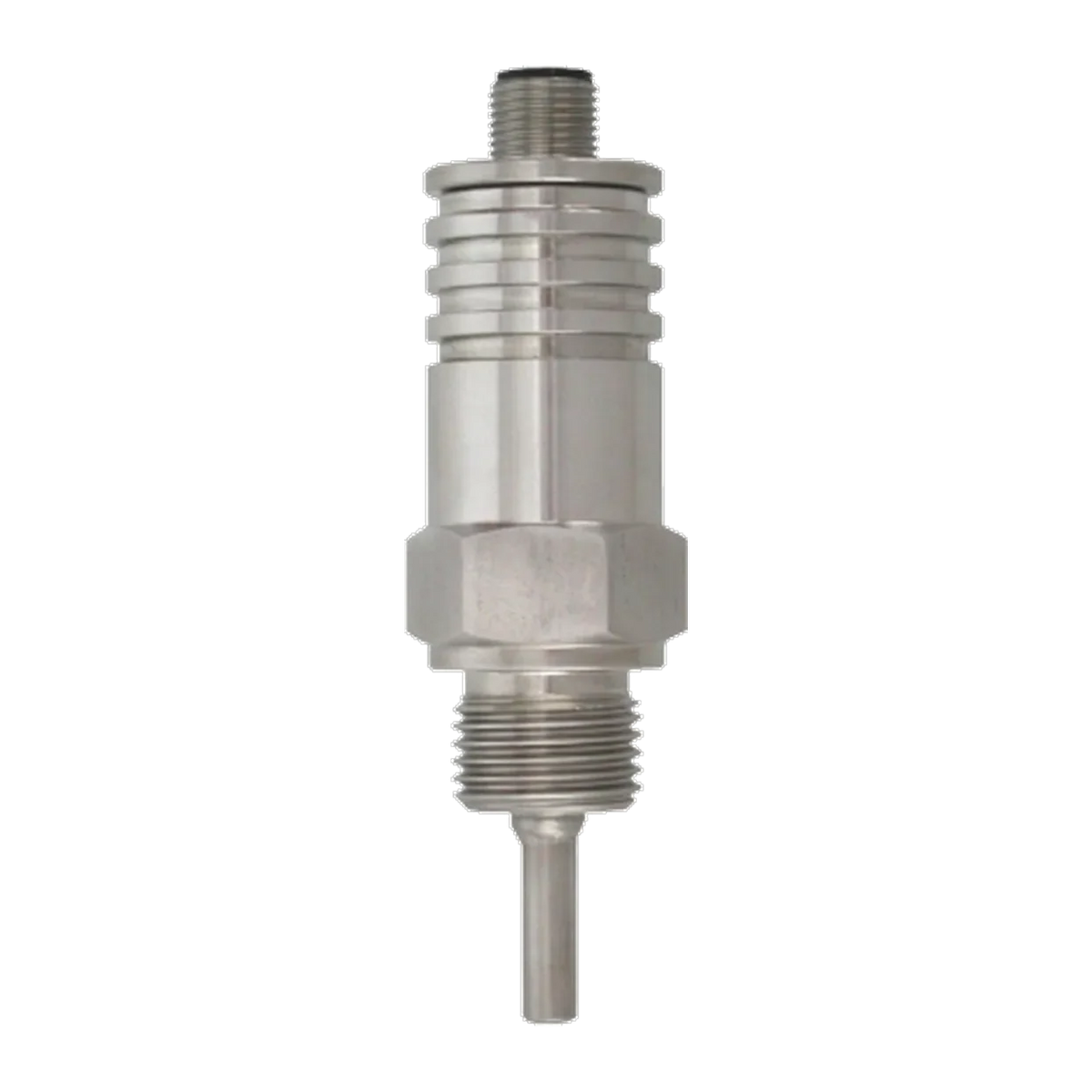

TPMB Temperature Transducer: Precision and Reliability for Industry
The LPMB temperature transducer is a highly developed measuring instrument for precise temperature acquisition in demanding industrial environments. Equipped with high-resolution 24-bit electronics, it delivers exact and stable measurement results.
The most important advantages at a glance
-
High measurement accuracy: Offers a precision of max. 0.1% of the measuring range (plus sensor error) with sensor accuracy according to class A.
-
Sensor flexibility: Compatible with 1x or 2x Pt100 as well as Pt1000 sensors in 2-, 3- or 4-wire connection technology.
-
Robust design: The housing combines resistant stainless steel (1.4571) with PBT GF30 and offers protection class IP65.
-
Pressure and temperature resistance: Designed for media temperatures from -50 °C to +425 °C and a maximum system pressure of up to 25 bar.
Technical data at a glance
-
-
Output signals: 4...20 mA (2-wire) or optionally 0...10 V, 0.5...10.5 V, 2...10 V (3-wire).
-
Power supply: 12...30 VDC.
-
Operating temperatures:
-
Operating temperature: -50 °C to +200 °C.
-
Storage temperature: -40 °C to +85 °C.
-
-
Filter setting: Flexibly adjustable from 5 to 5000 ms.
-
Measurement rate: 10 measurements per second.
-
Electrical connection: M12x1 connector (4-pin or 8-pin), valve connector, MIL connector or fixed cable connection.
-
Process connection: 1/2" thread with a probe diameter of 6 mm.
-
Certifications & standards: CE, RoHS, REACH compliant; optionally available with Ex certifications (e.g. ATEX) on request.
-
