LMLAB Weighing Modules PS

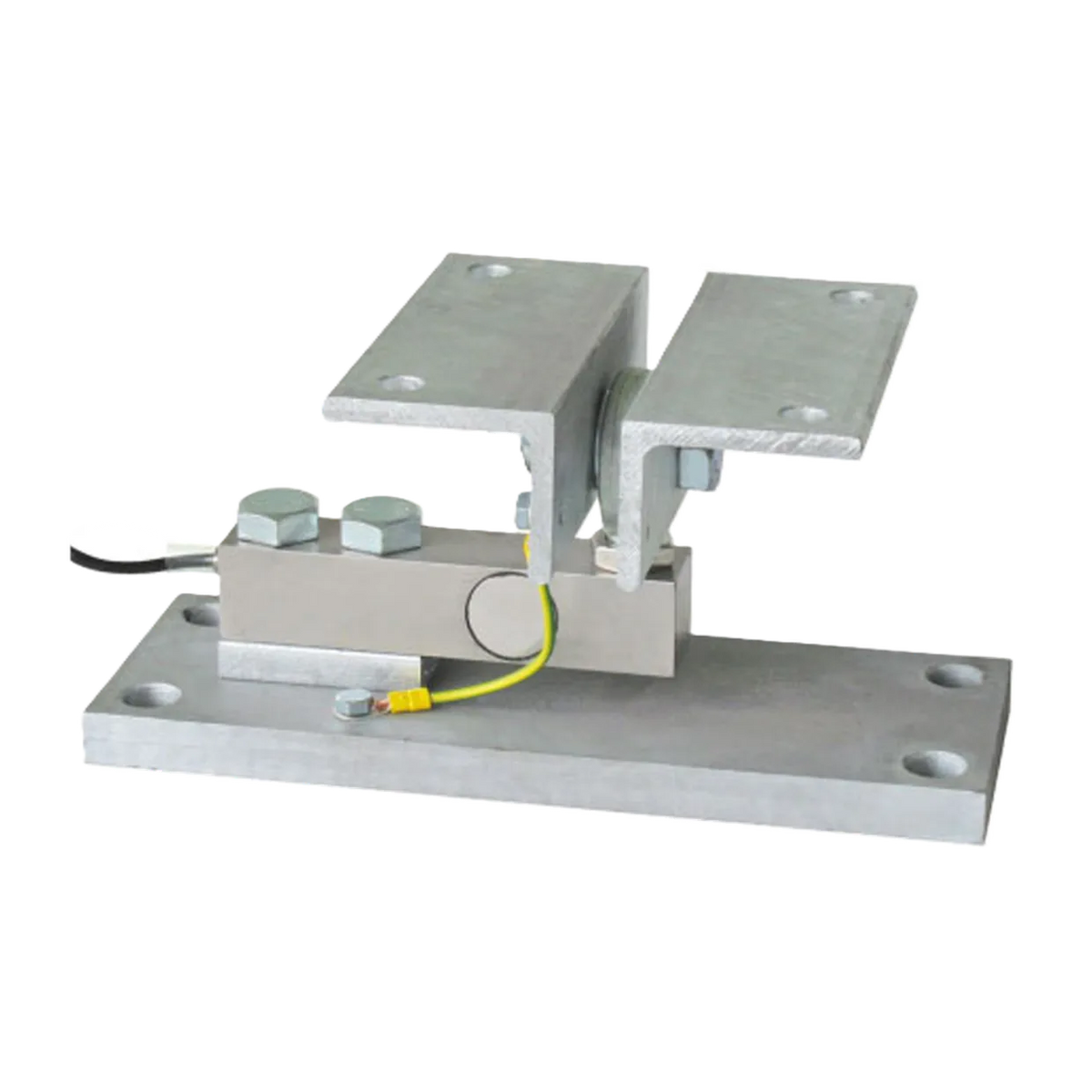

LMLAB Weighing Module – Mounting kit for shear beam load cells, suitable for loads up to 10,000 kg. Top and bottom plates, as well as the block, are made of galvanized steel, with protection against lateral forces and tilt protection provided by a ball joint. Compensates for uneven mounting surfaces and is height-adjustable.

Features

• Load capacity 5,000–10,000 kg (50–100 kN), depending on the load cell
• For load cells LBLF | LBLA
• Made of galvanized steel, net weight 10.5–15.5 kg
• Tightening torque for mounting screws: 290 Nm (5,000 kg) / 690 Nm (10,000 kg)
• Load cell not included
