Description

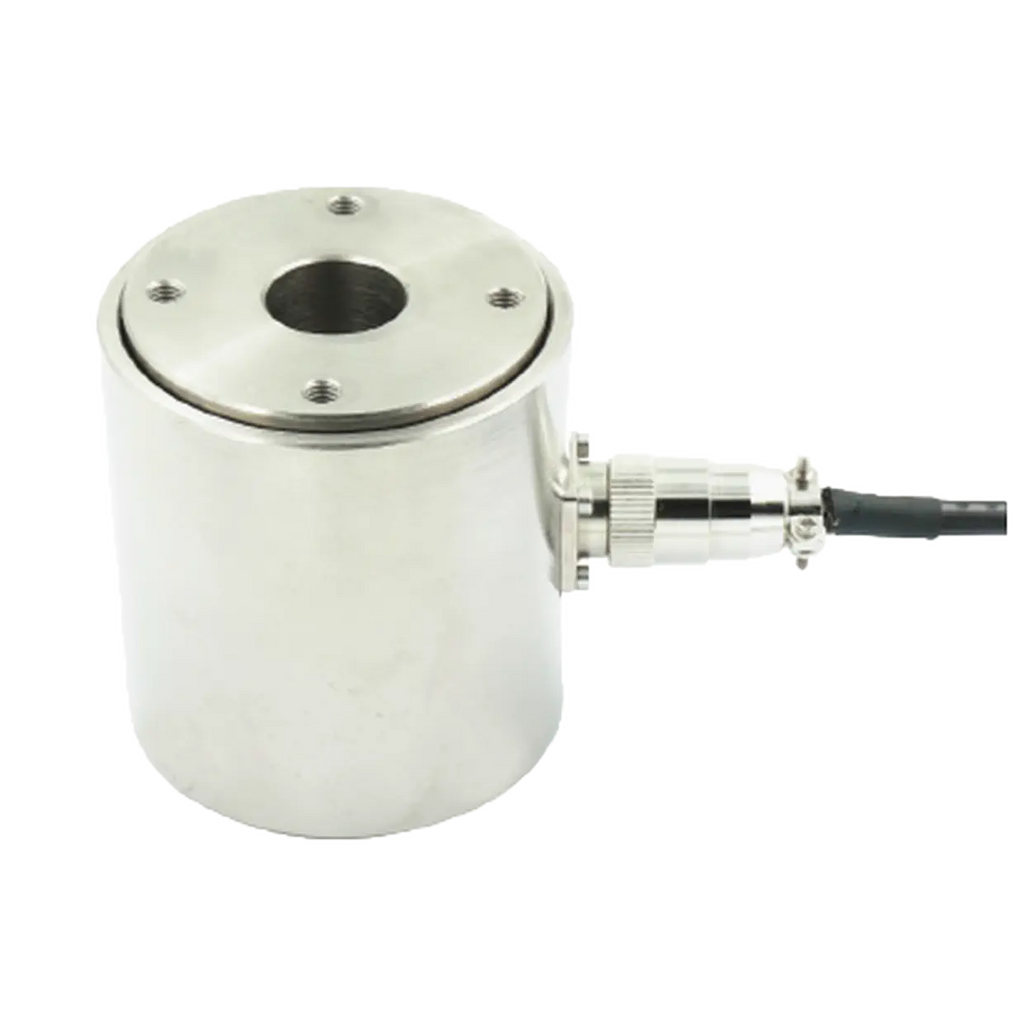

LRBF – Compact Ring Load Cell
The LRBF is a compact ring load cell for compressive force measurements in industrial applications. It is suitable for machine monitoring, test benches, presses, and compact force measurement systems.
The load cell is available in measuring ranges from 5 kN to 100 kN or 500 kg to 10,000 kg. The total error is a maximum of ±0.28 % FS.
The housing is made of stainless steel 17-4PH / 1.4542 and is designed with protection class IP66 for industrial environments. A high-temperature version up to +250 °C and an ISO-17025 calibration are optionally available.
Advantages at a Glance
- Compact ring load cell
- Measuring ranges from 5 kN to 100 kN
- Total error ≤ ±0.28 % FS
- Stainless steel housing made of 17-4PH / 1.4542
- Protection class IP66
- Suitable for dynamic measurements
- Optionally available as a high-temperature version
- Optionally with ISO-17025 calibration
