Description

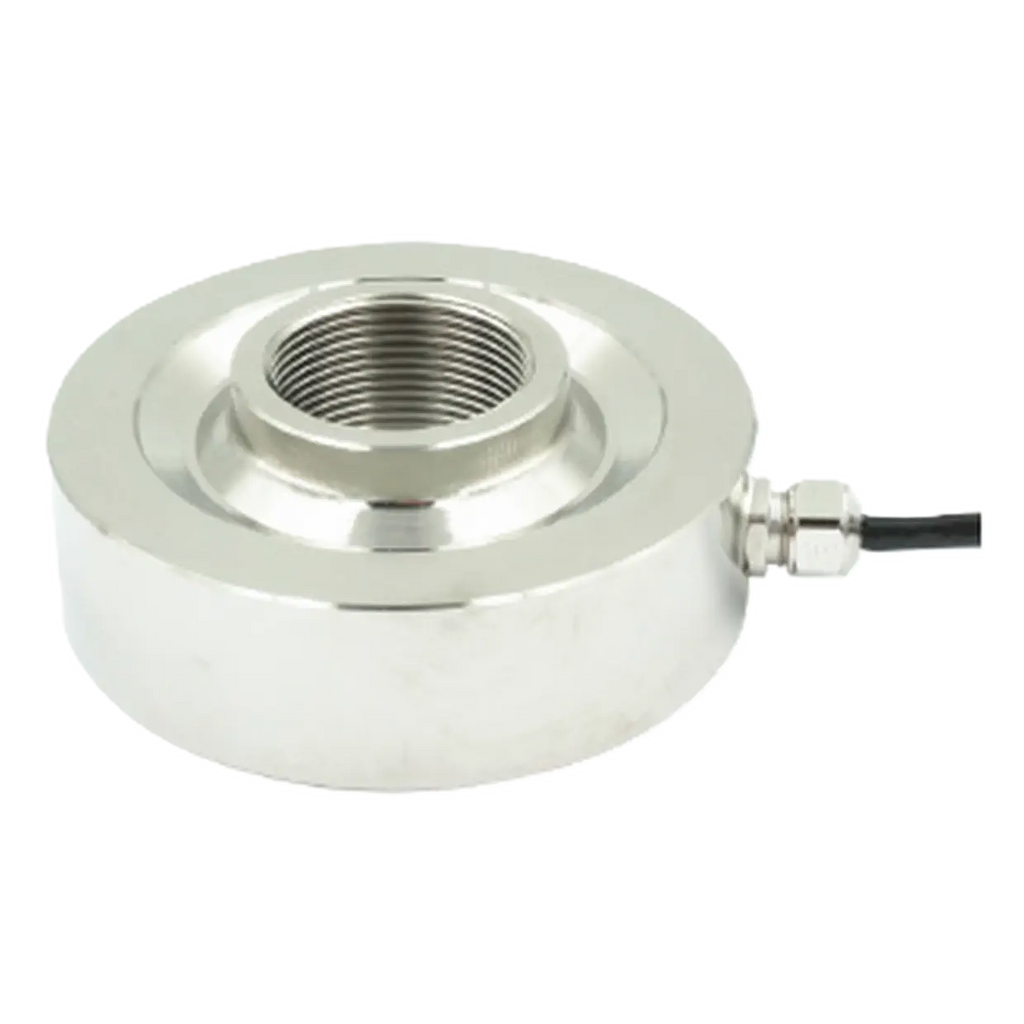

LRBE – Compact Ring Load Cell
The LRBE is a compact ring load cell for industrial compression force measurements. It is suitable for test benches, press applications, machine monitoring, and applications with central force introduction.
The load cell is available in measuring ranges from 5 kN to 50 kN or 500 kg to 5,000 kg. The total error is a maximum of ±0.28 % FS.
The housing is made of stainless steel 17-4PH / 1.4542. According to the technical specifications, the load cell is designed with protection class IP67. A high-temperature version up to +250 °C and an ISO 17025 calibration are optionally available.
Advantages at a glance
- Compact ring load cell
- Measuring ranges from 5 kN to 50 kN
- Total error ≤ ±0.28 % FS
- Stainless steel housing made of 17-4PH / 1.4542
- Protection class IP67
- Suitable for dynamic measurements
- Optionally available as a high-temperature version
- Optionally available with ISO 17025 calibration
