Description

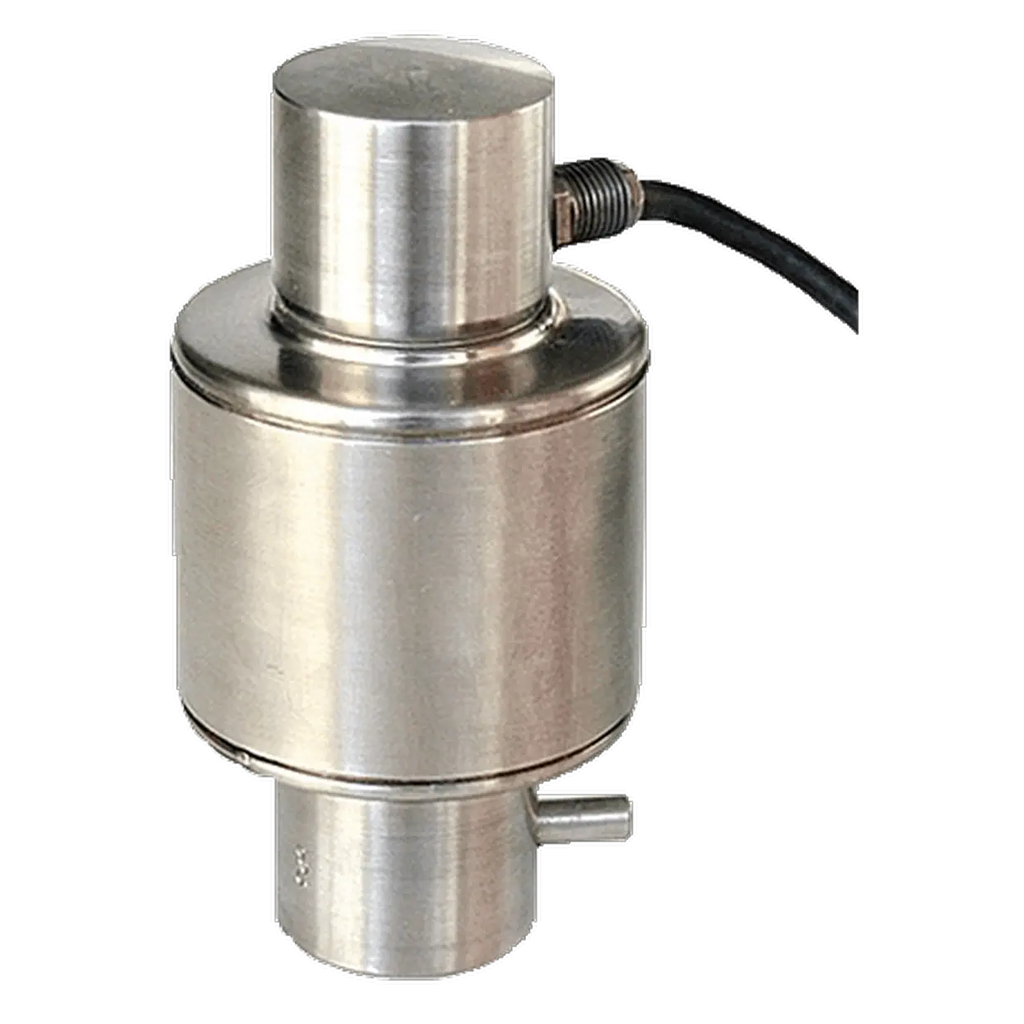

LILC – Compression Load Cell
The LILC is a robust compression load cell for industrial weighing and force measurement applications involving very high loads. It is particularly suitable for silo scales, tank scales, test benches, and heavy plant constructions.
The load cell is available with a rated capacity of 300 kN or 30,000 kg. It meets accuracy class C4 and achieves a total error of a maximum of ±0.017% FS.
The housing is made of stainless steel AISI 420 and is designed with protection class IP68 for demanding environmental conditions. ISO-17025 calibration and various certifications are optionally available.
Advantages at a glance
- Compression load cell
- Rated capacity 300 kN / 30,000 kg
- Accuracy class C4
- Total error ≤ ±0.017% FS
- Stainless steel housing made of AISI 420
- Protection class IP68
- Optionally with ISO-17025 calibration
