Description

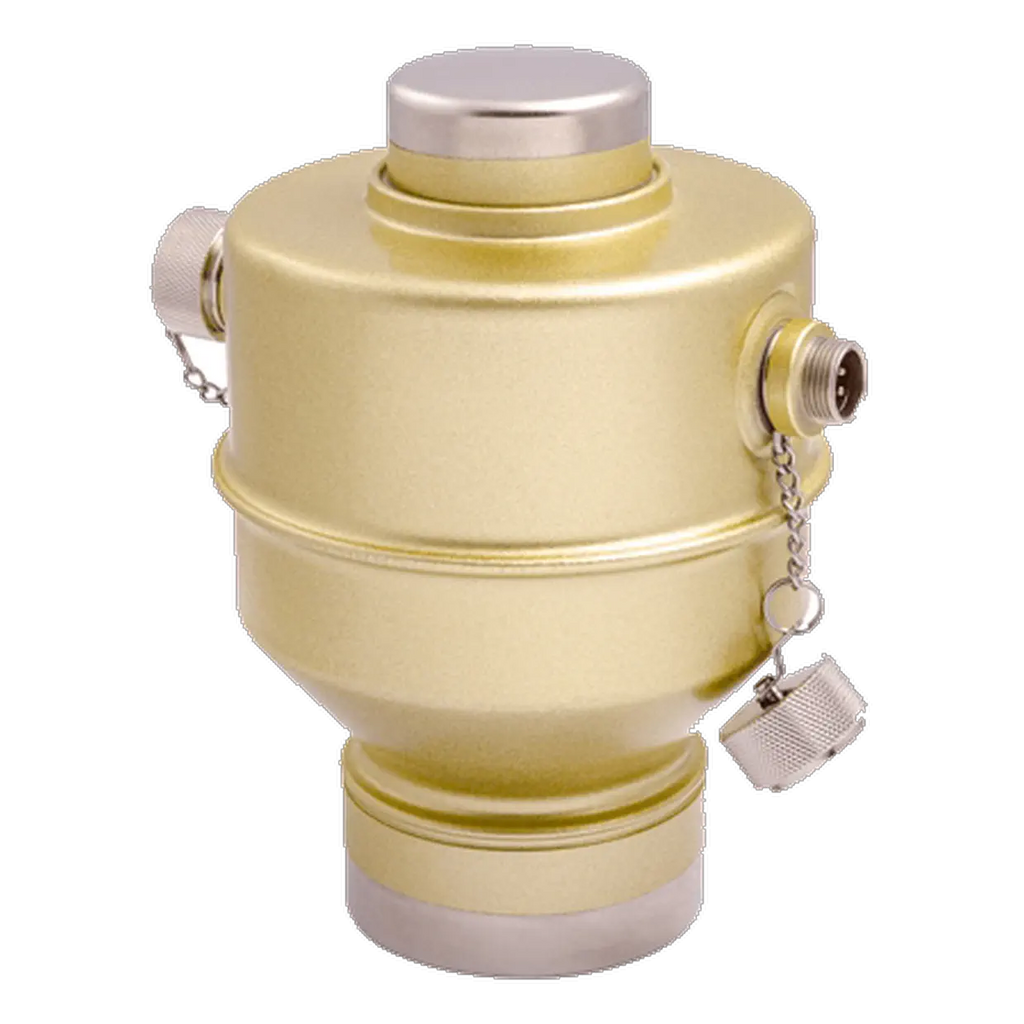

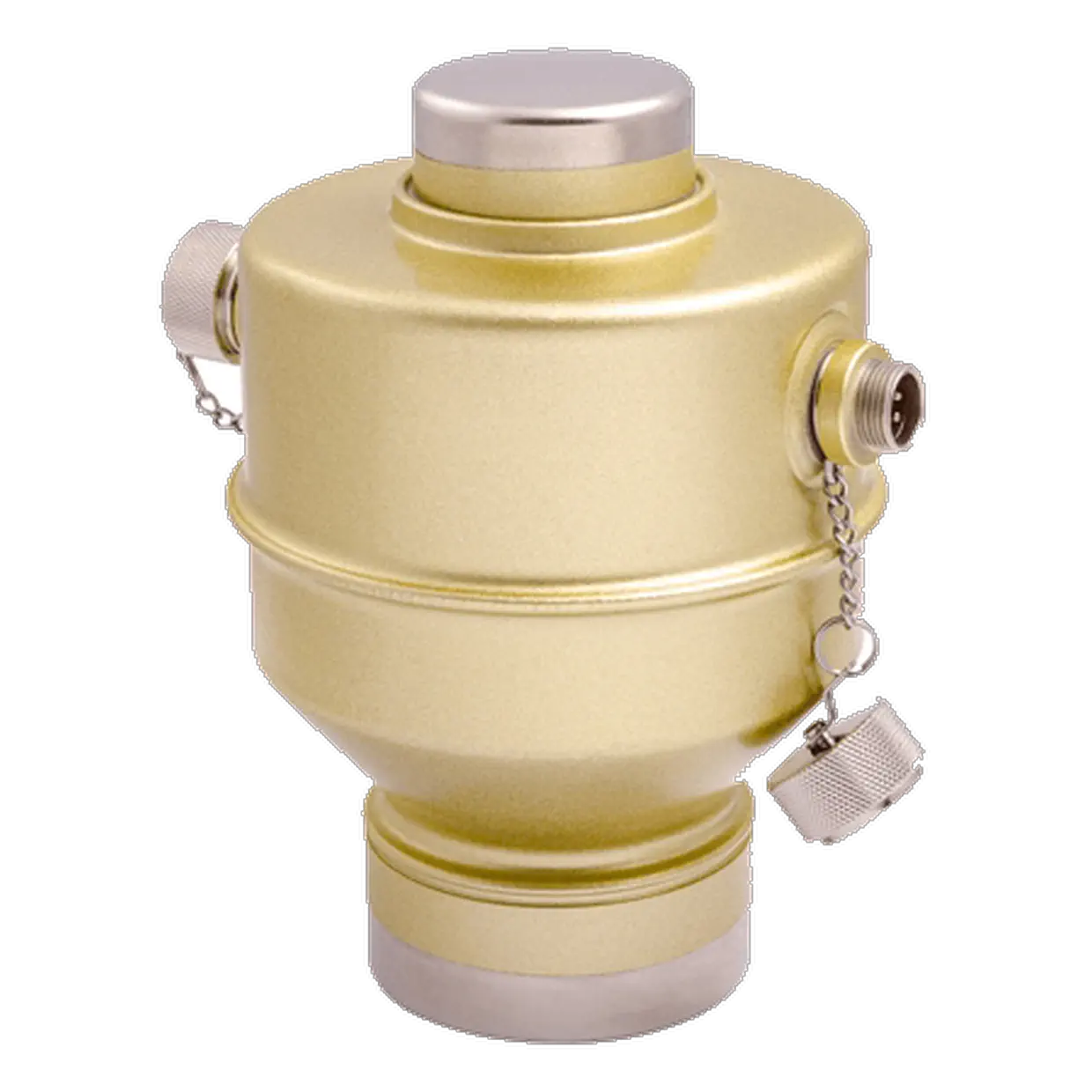

LILB – Compression Column Load Cell
The LILB is a high-precision compression column load cell for industrial weighing and force measurement applications. It is particularly suitable for applications with high demands on accuracy, cleaning, and robust cable design.
The load cell is available in measuring ranges from 250 kN to 500 kN or 25,000 kg to 50,000 kg. It corresponds to accuracy class C5 and achieves a total error of a maximum of ±0.014% FS.
The housing is made of nickel-plated AISI 4340 steel and is designed with protection class IP69K for demanding cleaning conditions. The version features an anti-rat cable with a length of 7 m and connectors at both ends.
Advantages at a Glance
- High-precision compression column load cell
- Measuring ranges from 250 kN to 500 kN
- Accuracy class C5
- Total error ≤ ±0.014% FS
- Nickel-plated AISI 4340 steel
- Protection class IP69K
- Anti-rat cable with connectors
- Optional with ISO 17025 calibration
