Description

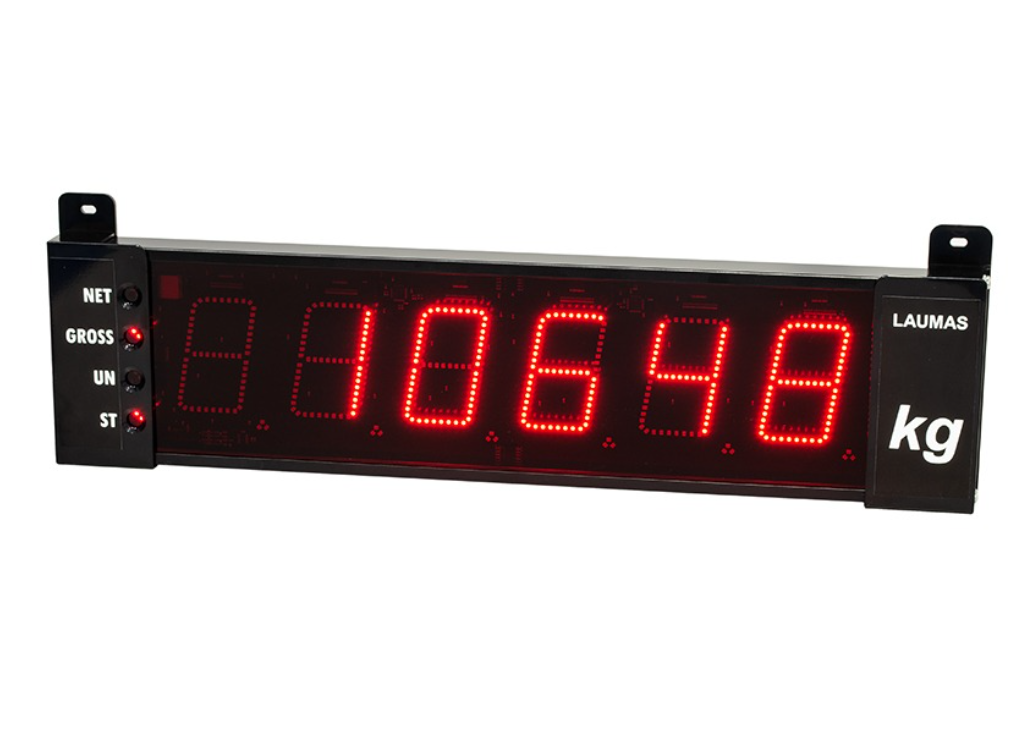

Digital remote display EDLG
With its large digits, the EDLG digital remote display is ideal for wall mounting. It provides a clear display of your weight data in a compact format.
The most important data at a glance:
- Clear display: The device features a 6-digit, semi-alphanumeric red SMD-LED display with a digit height of 90 mm. In addition, 4 indicator LEDs are integrated.
- Housing: The housing consists of an aluminum profile and offers IP30 protection.
- Interfaces: Serial interfaces (RS232, RS485) are available for communication, operating at a baud rate of 9600 bit/s. 15 addresses can be set, and the system can be conveniently configured on a PC via the RS232 interface.
- Technology & Dimensions: The dimensions are 712 x 208.5 x 46.5 mm. The regular power supply is 12 VDC (1.5 A). Reliable operation is possible at temperatures from -10 °C to +50 °C and a humidity of up to 80% (non-condensing).
- Extensive scope of delivery: A power supply unit (input 100-240 VAC to 12 VDC/2 A) with a 1.2 m cable length is included. In addition, a 5 m long cable for the serial connection and the corresponding brackets for wall mounting are already included.
