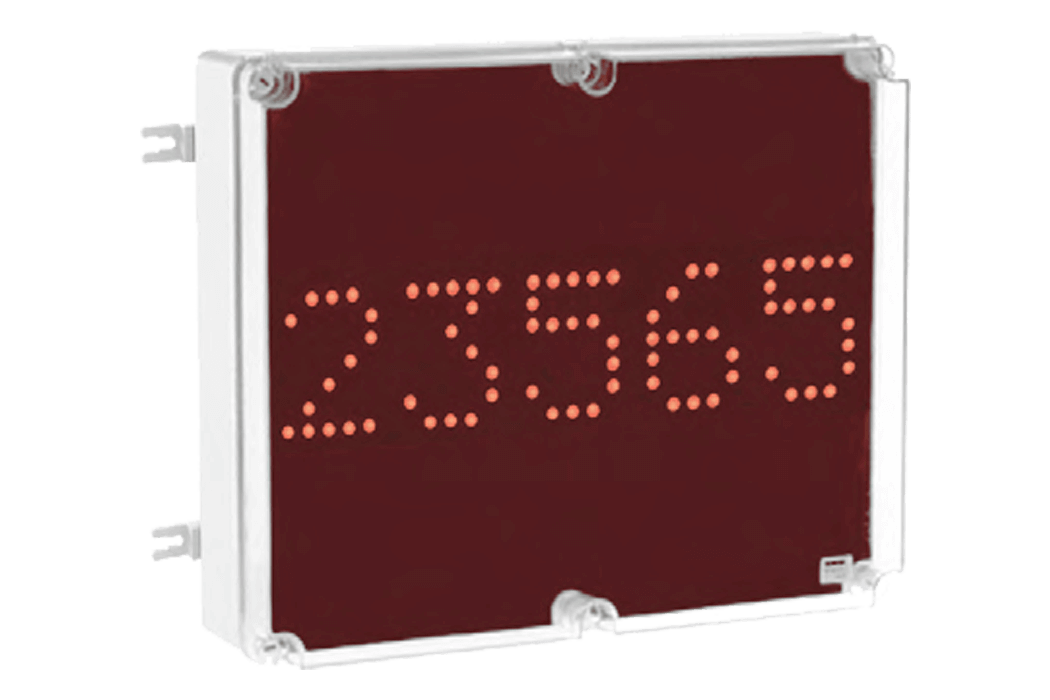

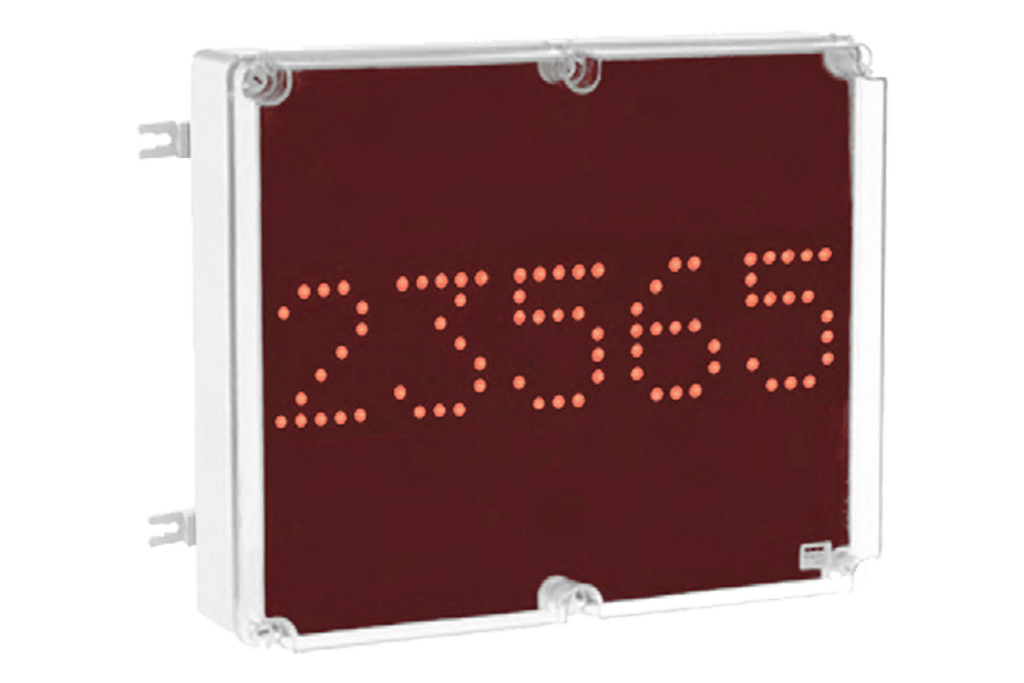

Digital Remote Display EDLD
The OCTOGON EDLD remote display provides a clear representation of weight data and is specially designed for wall mounting. With its extra-large digits, it ensures maximum transparency in your operations.
Key features at a glance:
- Clear Display: The device features a 5-digit, alphanumeric dot-matrix display. With an impressive digit height of 100 mm and integrated brightness control, accurate reading is easily possible even from a greater distance.
- Robust Housing: The electronics are securely housed in a plastic casing. With IP56 protection, the display is reliably protected against dust and water.
- Flexible Interfaces: Communication with your weighing system takes place via serial RS232 and RS422 interfaces. The device supports versatile baud rates from 1200 to 57600 bit/s.
Technical Highlights:
- Dimensions: 468 x 390 x 130 mm.
- Power Supply & Consumption: Operates with 12 to 24 VDC at a power consumption of 20 W.
- Environmental Conditions: Reliable operation at operating temperatures from -10 °C to +40 °C and humidity up to 85% (non-condensing). Storage temperature ranges from -20 °C to +50 °C.
- Certifications: The device meets all important standards and is CE and UKCA certified.
