Description

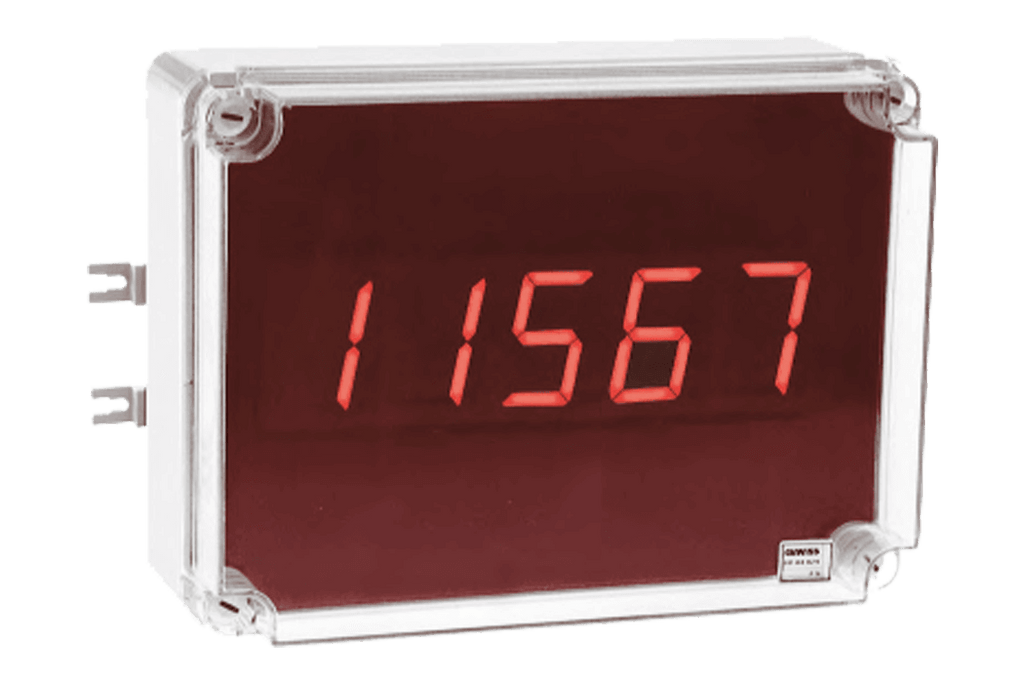

Digital Remote Display EDLA
The compact EDLA remote display from OCTOGON offers a clear and highly visible display of your weight data. This model with large digits is specifically designed for easy wall mounting.
Key features at a glance:
- Clear display: The device features a 5-digit, semi-alphanumeric red LED display. With a digit height of 57 mm, precise reading is effortlessly possible.
- Robust housing: The electronics are securely housed in a durable plastic casing. With IP56 protection, the display is optimally protected against dust and splashing water.
- Flexible interfaces: Communication is reliably established via serial RS232 and RS422 interfaces. The device supports versatile baud rates from 1200 to 57600 bit/s.
Technical Highlights:
- Dimensions: Compact dimensions of 310 x 230 x 130 mm.
- Power Supply & Performance: Operates with 12 to 24 VDC at a low consumption of 10 W.
- Environmental Conditions: Reliable operation at temperatures from -10 °C to +40 °C and humidity up to 85% (non-condensing). Storage temperature ranges from -20 °C to +50 °C.
- Certifications: The device meets all important standards and is CE and UKCA certified.
