Description

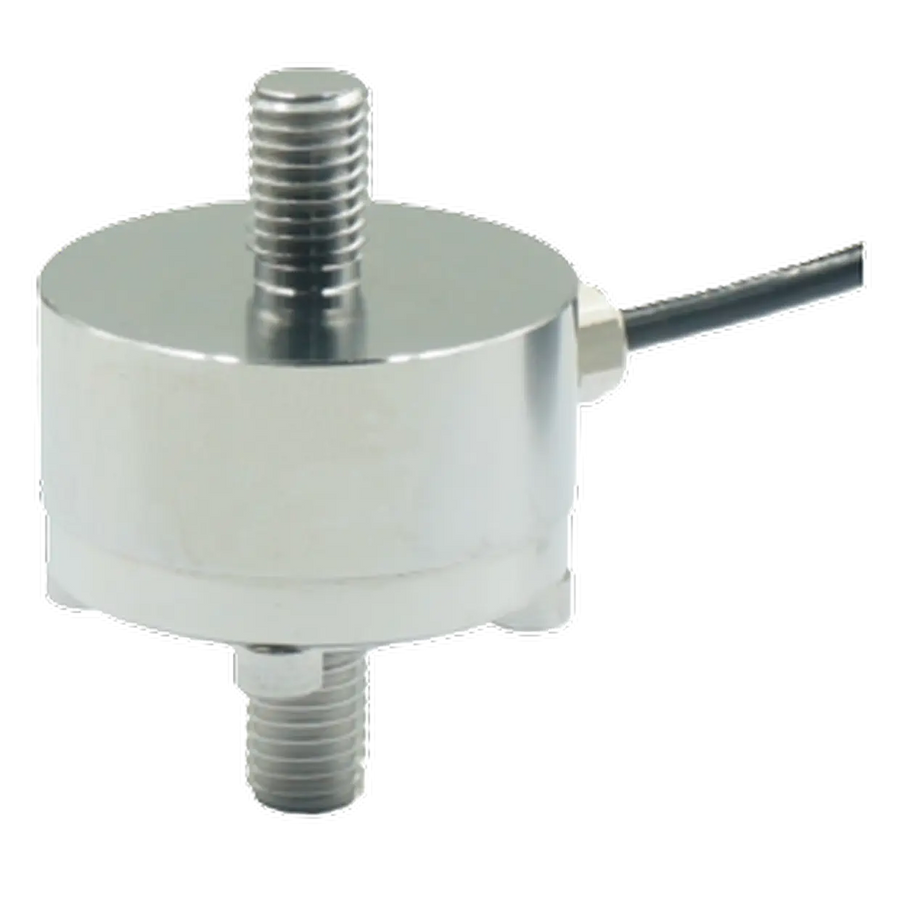

The LZBF is a compact tension and compression load cell for industrial force measurements. It is suitable for test benches, machine monitoring, assembly systems and applications with force introduced from both sides.
The load cell is available in measuring ranges from 100 N to 5,000 N or 10 kg to 500 kg. The total error is at most ±0.22 % FS.
The housing is made of 17-4PH / 1.4542 stainless steel and, with IP67 protection, is designed for industrial operating conditions. A high-temperature version up to +250 °C and ISO 17025 calibration are available as options.
Benefits at a glance
- Compact tension and compression load cell
- Measuring ranges from 100 N to 5,000 N
- Total error ≤ ±0.22 % FS
- Stainless steel housing made of 17-4PH / 1.4542
- IP67 protection
- Suitable for dynamic measurements
- Optionally available as a high-temperature version
- Optionally available with ISO 17025 calibration
