Description

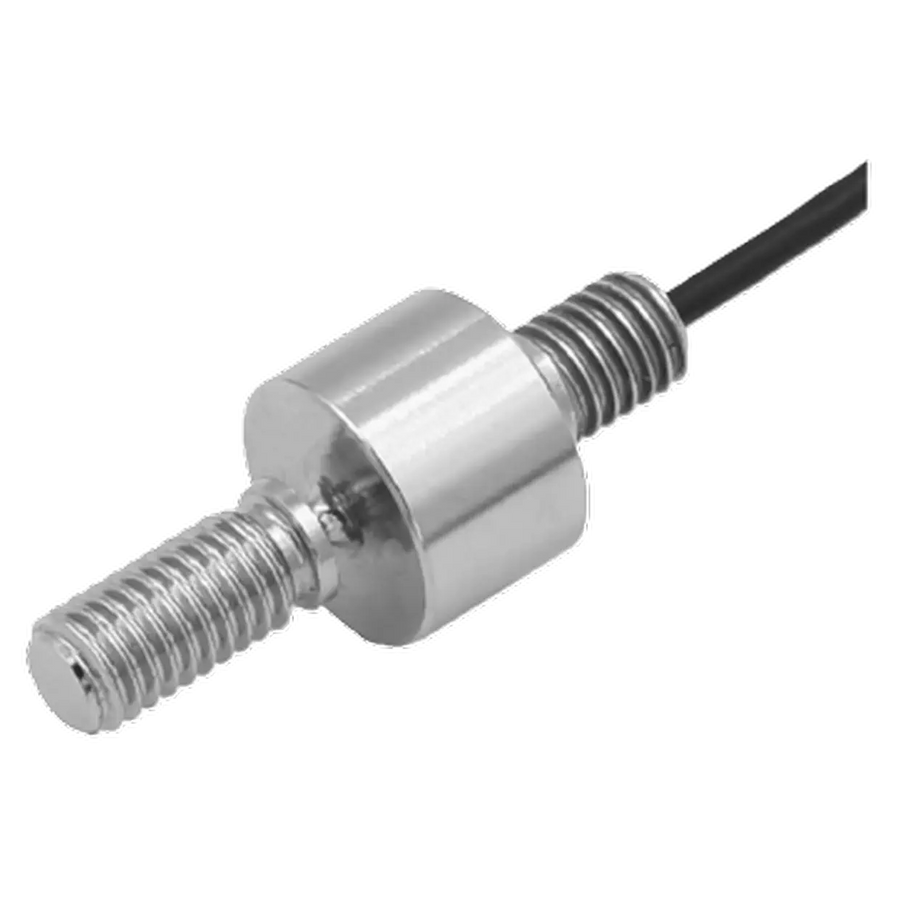

The LZBB is a small tension and compression load cell with threaded connections on both ends. It is suitable for compact force measuring systems, test benches, assembly applications and simple monitoring tasks.
The load cell is available in measuring ranges from 20 N to 500 N or 2 kg to 50 kg. The total error is at most ±0.54 % FS.
The housing is made of 17-4PH / 1.4542 stainless steel and is protected to IP66. A high-temperature version up to +250 °C and ISO 17025 calibration are available as options.
Benefits at a glance
- Small tension and compression load cell
- Measuring ranges from 20 N to 500 N
- Total error ≤ ±0.54 % FS
- Stainless steel housing made of 17-4PH / 1.4542
- IP66 protection
- Threaded connections on both ends
- Suitable for dynamic measurements
- Optionally available as a high-temperature version
