LULA_L-FUN Seilspannungs-Wägezelle
Roll over image to zoom in Click on image to zoom
LULA_L-FUN Seilspannungs-Wägezelle
CE UKCA ATEX EAC EAC Ex REACH RoHS Ex NEPSI ISO 17025 IP67 mV/V

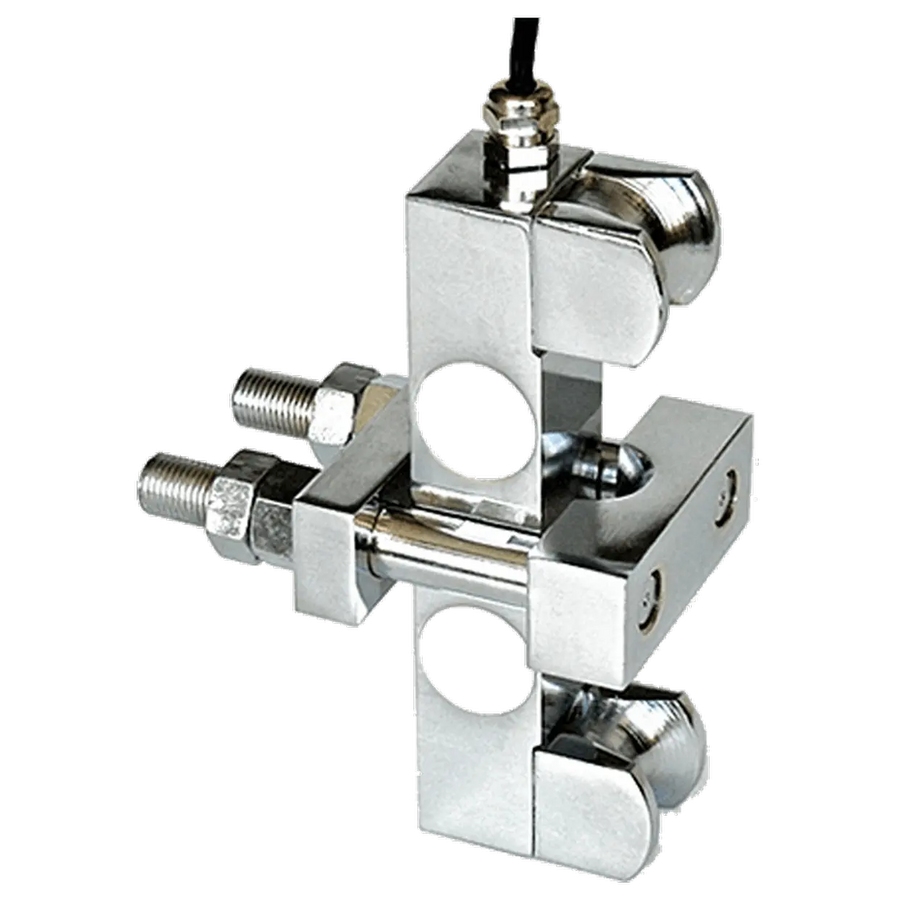

LULA rope tension load cell

Rated load: 2 t
Price:
424,00 EUR

Net, excl. shipping

Delivery Time & Shipping

Downloads

Not the right fit? No problem. We build everything! Just ask.

Description

The LULA is a wire rope tension load cell for measuring loads on wire ropes. It is particularly suitable for load limitation, lifting systems, cranes, and applications where quick retrofitting to an existing rope is required.

The load cell is available in measuring ranges from 20 kN to 400 kN or 2,000 kg to 40,000 kg. The load limitation accuracy is a maximum of ±2%.

The housing is made of nickel-plated AISI 4140 steel and is designed with an IP67 protection rating for industrial operating conditions. The LULA is available for various rope diameters from 6 mm to 36 mm and is optionally available with ISO-17025 calibration and Ex certifications.

Advantages at a glance

  • Load cell for wire rope measurement
  • Measuring ranges from 20 kN to 400 kN
  • Load limitation accuracy ≤ ±2%
  • For rope diameters from 6 mm to 36 mm
  • Nickel-plated AISI 4140 steel
  • IP67 protection rating
  • Quick installation and retrofitting
  • Optional with ISO-17025 calibration
