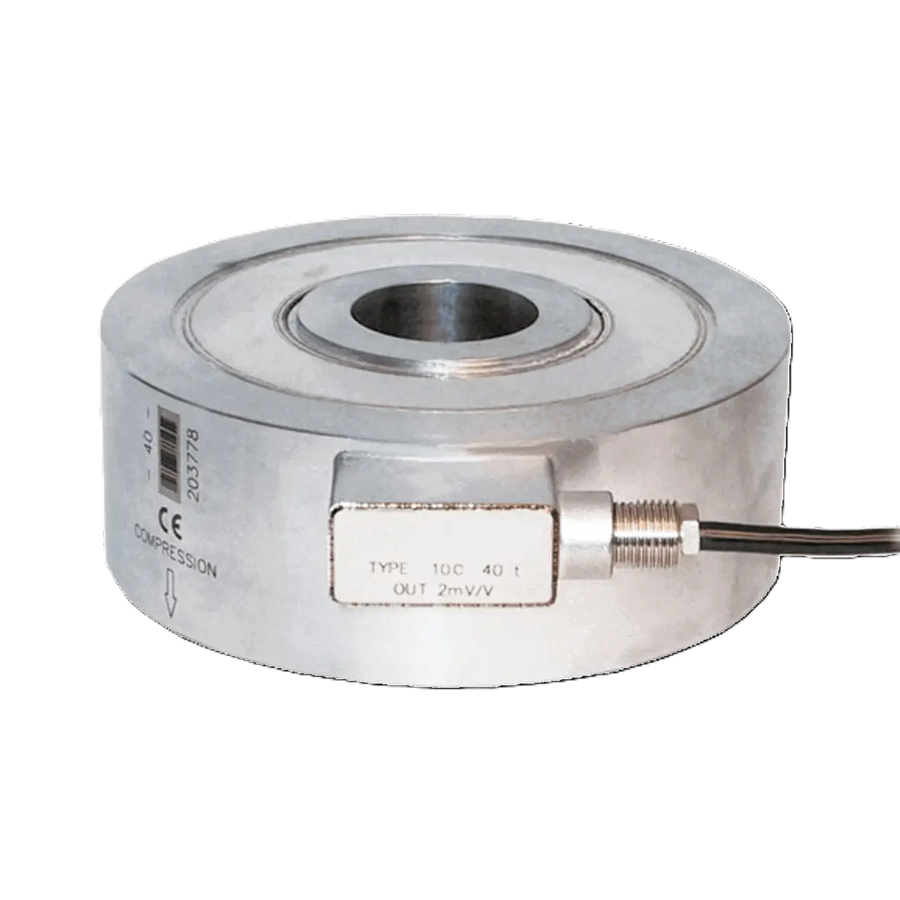

LRAA force measuring ring for compressive and tensile forces

Force measuring rings are high-precision force measuring devices for static and dynamic loads, i.e. for compressive forces and tensile forces. With a rated load of 10 kN to 1 MN and impressive accuracy, they are ideal for materials testing machines and general test benches. The standard output of 2mV/V allows easy integration into existing measuring systems.

Made entirely of stainless steel and laser-welded, the force sensor offers high mechanical strength and durability. IP67 protection provides reliable protection against dust and water and allows use even under demanding conditions. The long-term stability of the sensor guarantees precise measurements over long periods of use.

Features of the force measuring rings

✅Designed for rated loads from 10 kN to 1000 kN

✅Linearity and hysteresis of 0.10% and 0.20%

✅Material: stainless steel

✅Protection IP67

✅Particularly robust for tough continuous industrial use

✅Compatible with other manufacturers
