Description

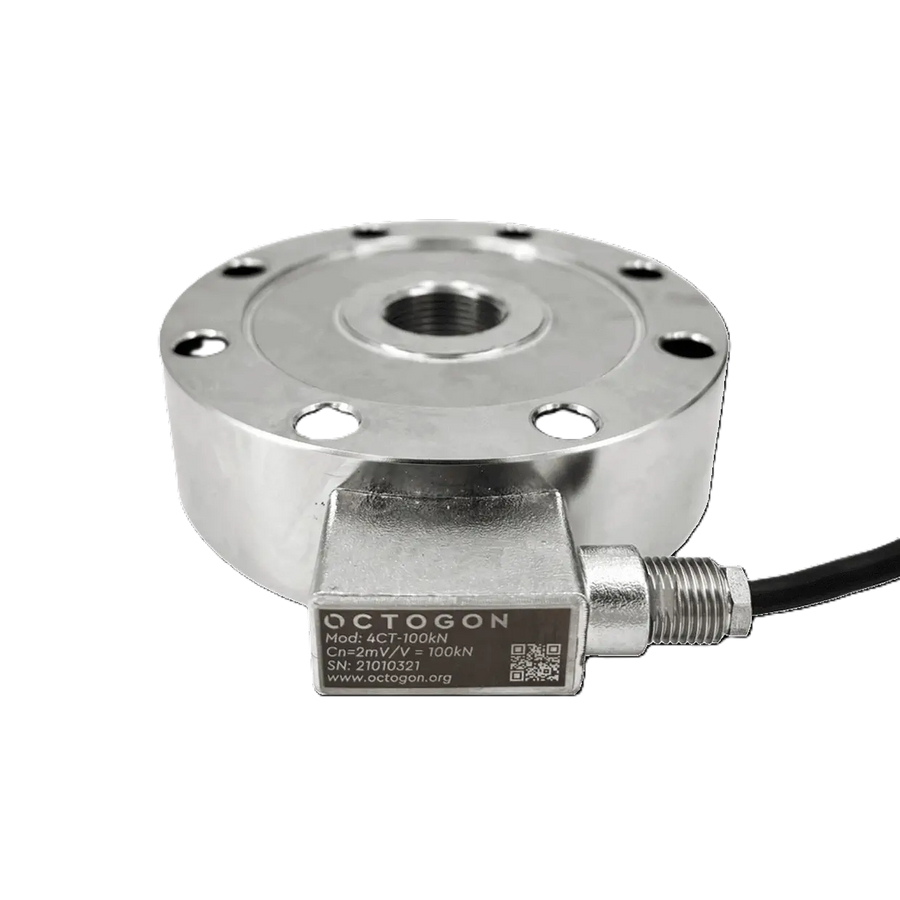

Compression/tension load cells made of stainless steel with IP67 protection from octogon are symmetrical, very compact and are often used in tension-compression applications in vessel scales, silo scales, machine scales, container scales and special scales, as well as for force measurement in testing machines and the process industry.
The force is often introduced into the compression/tension load cells via a load button. Central force introduction makes the load cell largely insensitive to eccentric loads. They are also characterized by high accuracy and linearity and are ideally suited for tension-compression applications. The load cells are ideally suited for long-term use in harsh environments and deliver precise and reproducible measurement results.
Features of the compression/tension load cells
✅Rated load from 250 kg to 500 t
✅Material: stainless steel
✅Very high rated loads available
✅Protection: IP67
✅Optional: connector - on request
✅Optional: with analog output (±5V, ±10V or 4...20mA) - on request
✅Design: the measuring element is laser-welded
✅High accuracy and linearity
✅Particularly robust for tough continuous industrial use
