Description

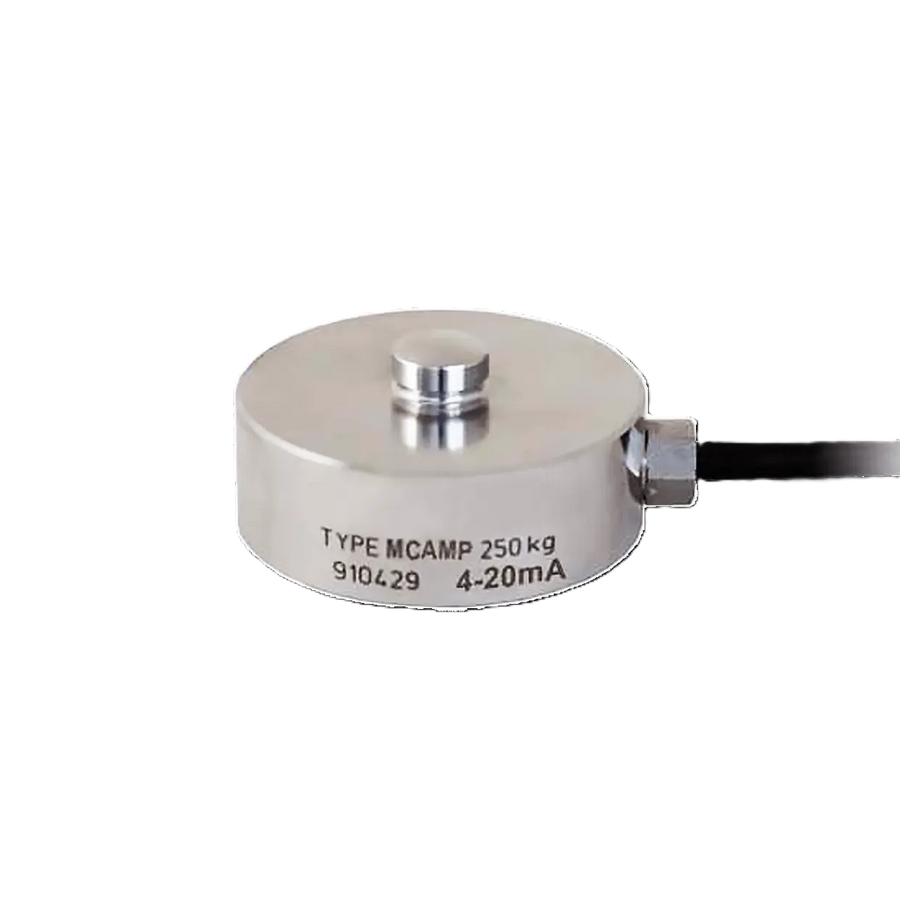

LKAB compression load cell – compact stainless steel load cell for compression loads, fully laser-welded. Output selectable as 4–20 mA or 0.5–10.5 V signal.
Features
- Rated load 50–5,000 kg (0.5–50 kN)
- Total error ≤ ±0.28 % FS
- Protection class IP67, stainless steel housing, fully laser-welded
- Output signal 4–20 mA (2-wire) or 0.5–10.5 V
- Safe overload 150 % FS, breaking load > 300 % FS
- Operating temperature range −20…+70 °C
- CE, REACH, ROHS; ISO-17025 calibration on request
