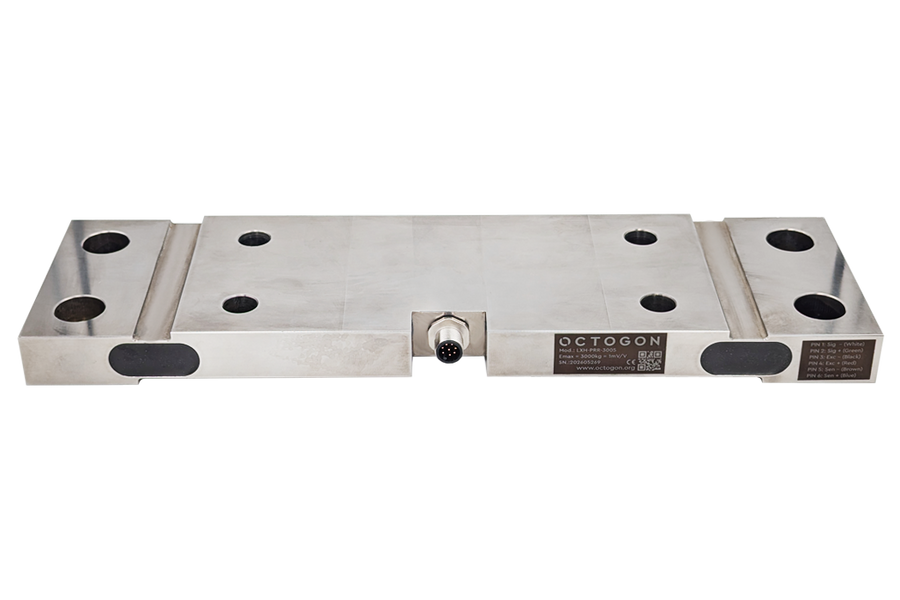

LXH-PRR plate load cell: compact force measurement specifically for wheel blocks and bearings

The flat LXH-PRR plate load cell from octogon is a highly specialized solution designed precisely for use with the DEMAG DRS-M 125 wheel block. Thanks to its flat plate design, it integrates seamlessly and space-efficiently into your travel and lifting constructions. Made of robust 17-4-PH stainless steel and certified to the high protection class IP67, this sensor guarantees precise compression force measurements and a long service life even under demanding industrial conditions.

The key benefits at a glance:

• Specific design: Tailor-made as a load cell for the DEMAG DRS-M 125 wheel block type.

• Ideal rated load: Designed for an optimal load capacity of 3,000 kg (30 kN).

• Reliable precision: High measuring accuracy with a combined error of ≤ ±0.2% of full scale.

• Maximum mechanical safety: Designed for a safe overload of 120% to 150% and an enormous ultimate load of over 500% of rated load.

• Smart connection: Equipped with a practical M12 connector for fast and secure electrical connection.

• Certified quality: The product is fully CE, RoHS and REACH compliant for the highest industry standards.

Technical summary:

• Material: 17-4-PH stainless steel

• Measuring direction: Compression

• Rated output: 1 mV/V ±0.1%

• Protection class: IP67

• Electrical connection: M12 connector
