Description

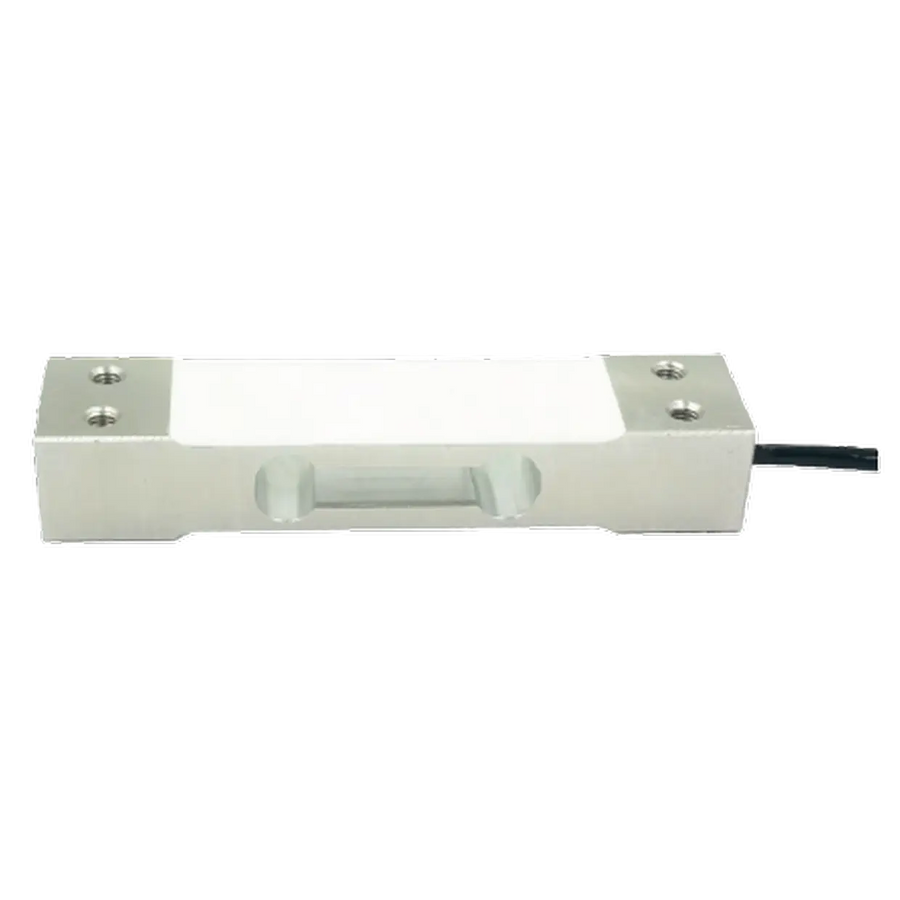

The LCBH is a compact platform load cell for the precise measurement of small loads and forces. Its flat design makes it particularly suitable for applications with limited installation space, for example in small platform scales, dosing systems, laboratory set-ups and industrial test benches.
The load cell is available in measuring ranges from 3 kg to 30 kg, or from 30 N to 300 N. The total error is no more than ±0.021 % FS. The full Wheatstone bridge in 4-wire configuration allows reliable integration into existing measuring systems.
The housing is made of aluminum alloy; with protection class IP65 it is suited to industrial applications. The LCBH can also be used for dynamic measurements. A high-temperature version up to +250 °C and an ISO 17025 calibration are available as options.
Advantages at a glance
- Compact platform load cell for small loads
- Flat design for limited installation spaces
- Suitable for tension and compression loads
- Measuring ranges from 3 kg to 30 kg
- Also suitable for dynamic measurements
- Total error ≤ ±0.021 % FS
- Full Wheatstone bridge in 4-wire configuration
- Housing made of aluminum alloy
- Protection class IP65
- Optional high-temperature version up to +250 °C
- Optional ISO 17025 calibration
