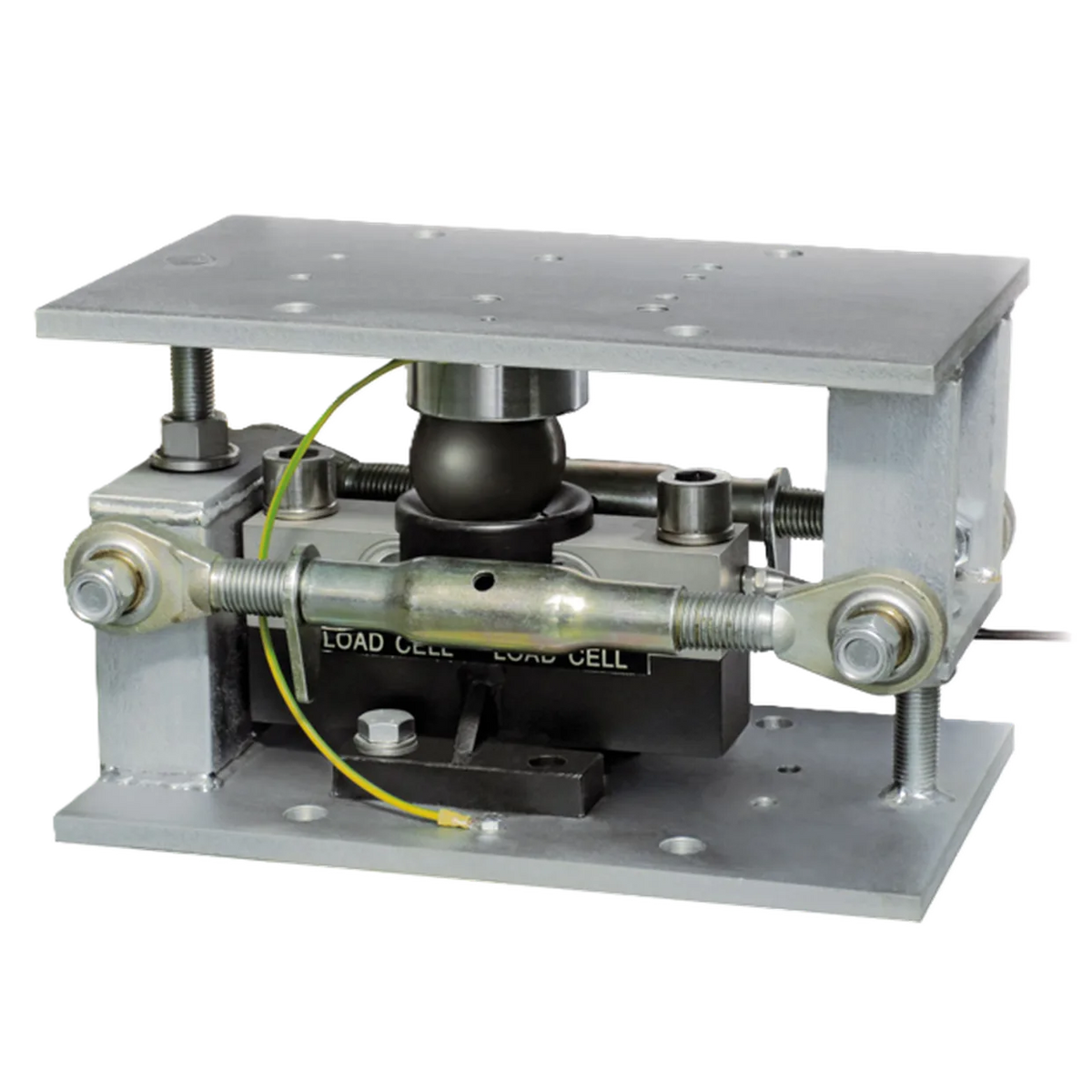

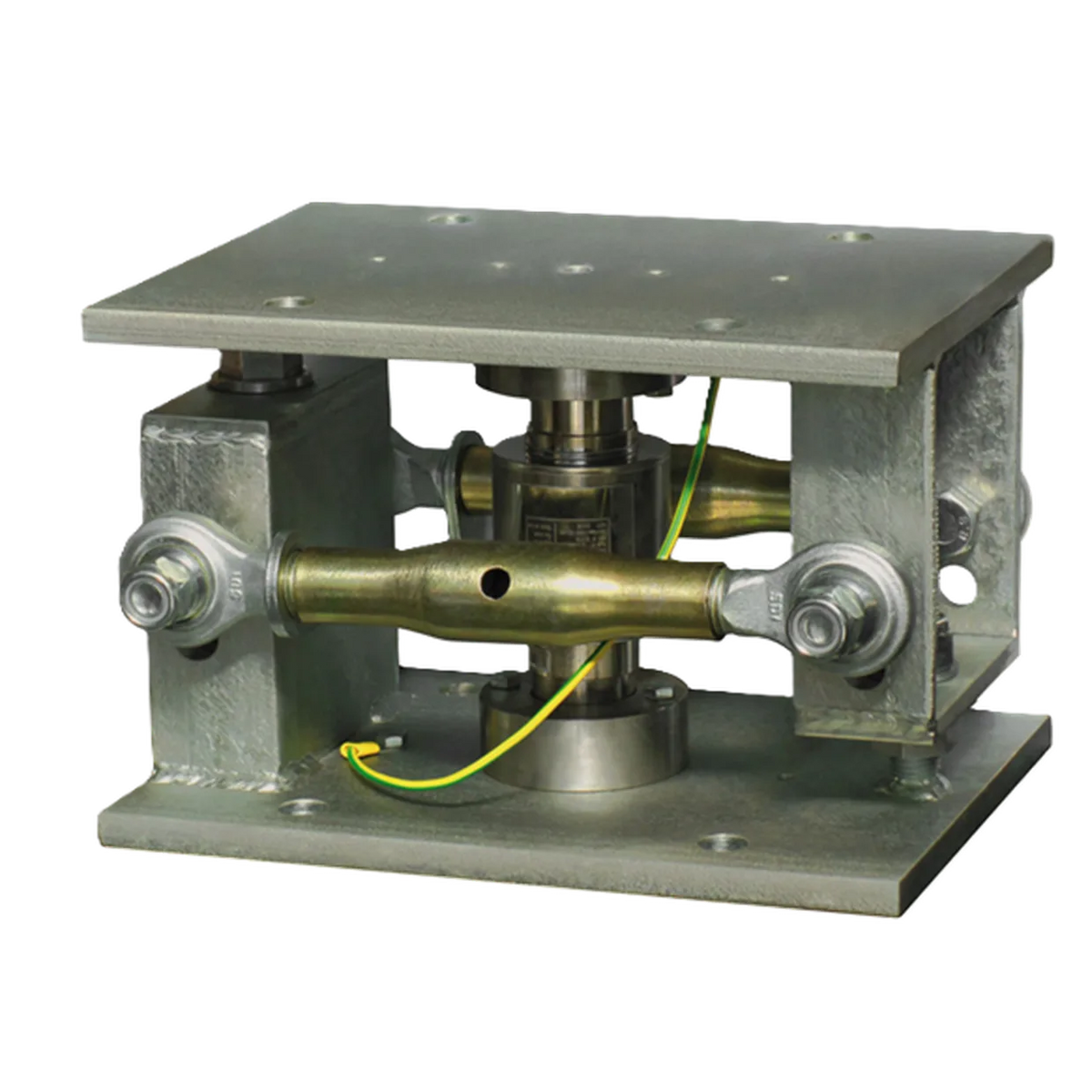

LMLAX weighing module for double-ended shear beam and column load cell up to 50 t

LMLAX weighing module – mounting kit for double-ended shear beam and column load cells, designed for capacities up to 50,000 kg. Top and bottom plates made of galvanized steel, with two integrated tie rods with double spherical joints to counter lateral forces, and anti-tilt protection via two threaded rods with self-locking nuts.

Features

• Capacity up to 50,000 kg (500 kN)
• For load cells LDLB | LILC | LILD
• Version made of galvanized steel, net weight 39 kg
• Load cell not included in delivery
