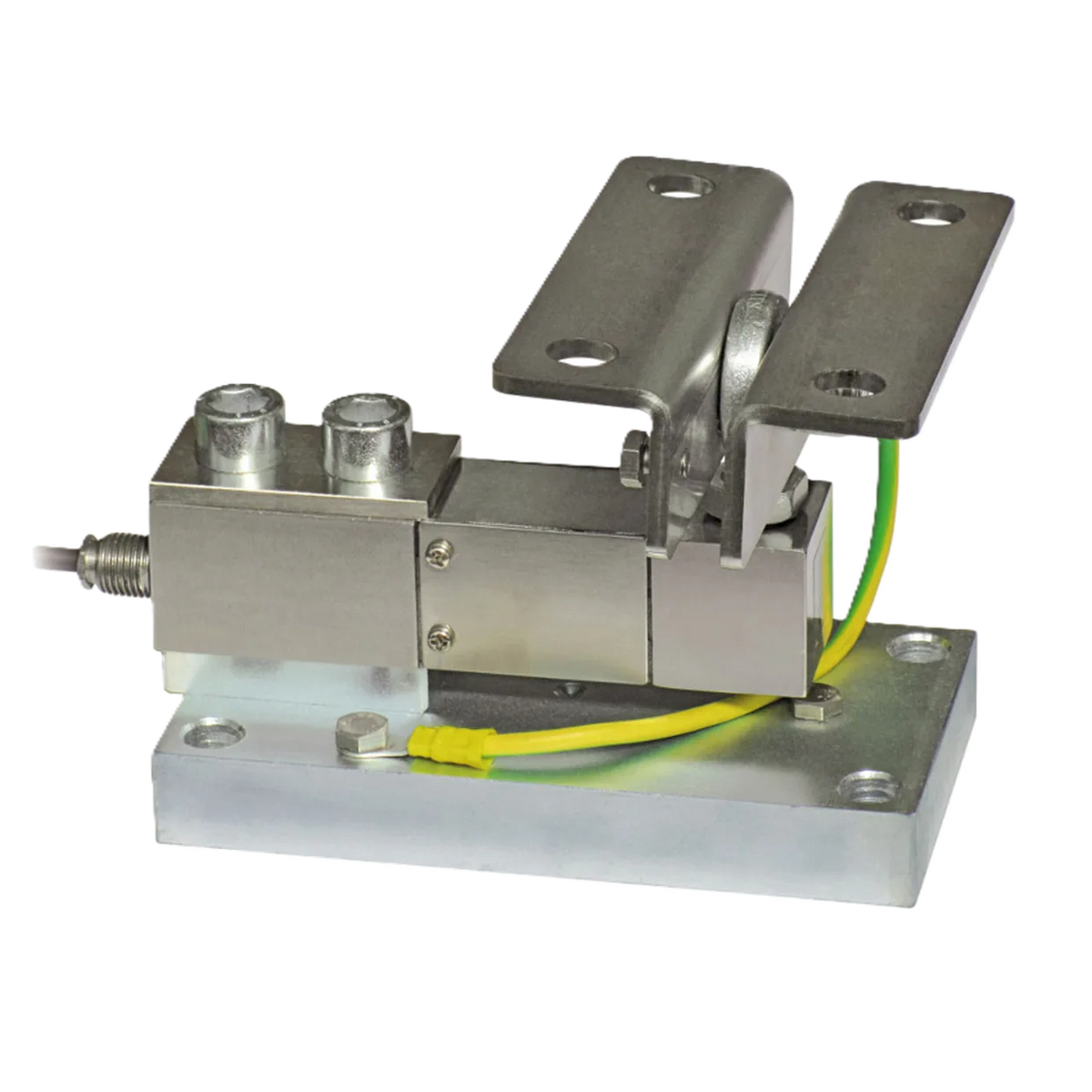

LMLAT weighing module for shear beam load cell 2 t, ball joint

LMLAT Weighing Module – Mounting kit for shear beam load cells, suitable for loads up to 2,000 kg. Top plate made of AISI 304 stainless steel, base plate and block made of galvanized steel or stainless steel. Secured against lateral forces and tilt protection by a ball joint with nut made of galvanized C40 steel or stainless steel. Compensates for uneven surfaces and is height adjustable. A safety screw protects against damage during transport and assembly.

Features

• Load capacity 2,000 kg (20 kN)
• For load cells LBLA | LBLF | LBLJ | LBLK | LBLL
• Version made of galvanized steel or AISI 304 stainless steel, net weight 2.7 kg
• Tightening torque of the fastening screws: 79 Nm
• Load cell not included
