LMLAS weighing module for shear beam load cell 500 to 2000 kg

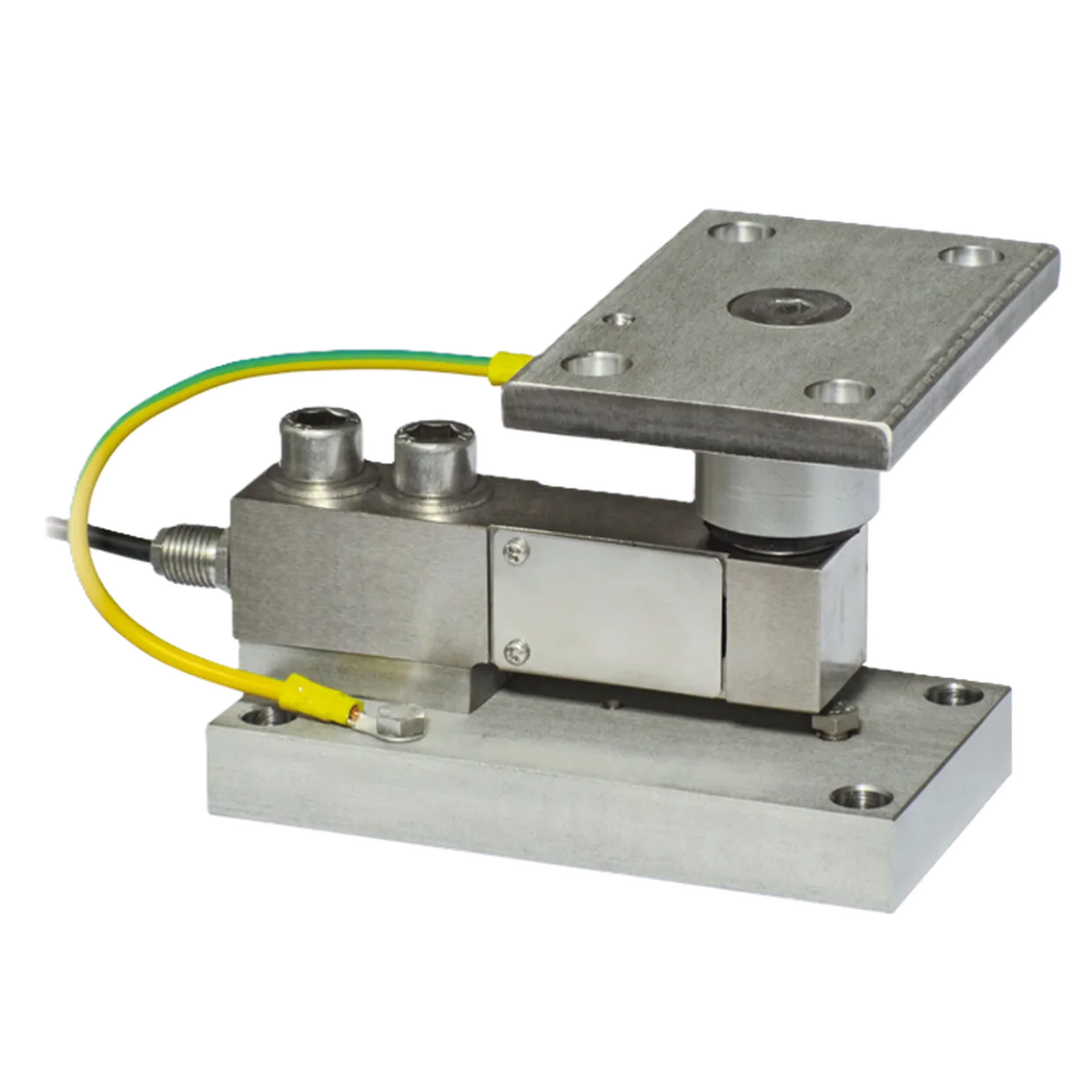

LMLAS Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 2,000 kg. Top plate with stainless steel AISI 304 and rubber pressure joint, bottom plate and block made of stainless steel AISI 304 or galvanized steel. Compensates for uneven mounting surfaces. A safety screw protects against damage during transport and assembly.

Features

• Capacity 500–2,000 kg (5–20 kN)
• For load cells LBLA | LBLF | LBLJ | LBLK | LBLL
• Made of stainless steel AISI 304 or galvanized steel, net weight 2.3–2.9 kg
• Tightening torque for mounting screws: 50 Nm (stainless steel) / 79 Nm (galvanized)
• Can be used in systems with at least 3 support points
• Load cell not included
