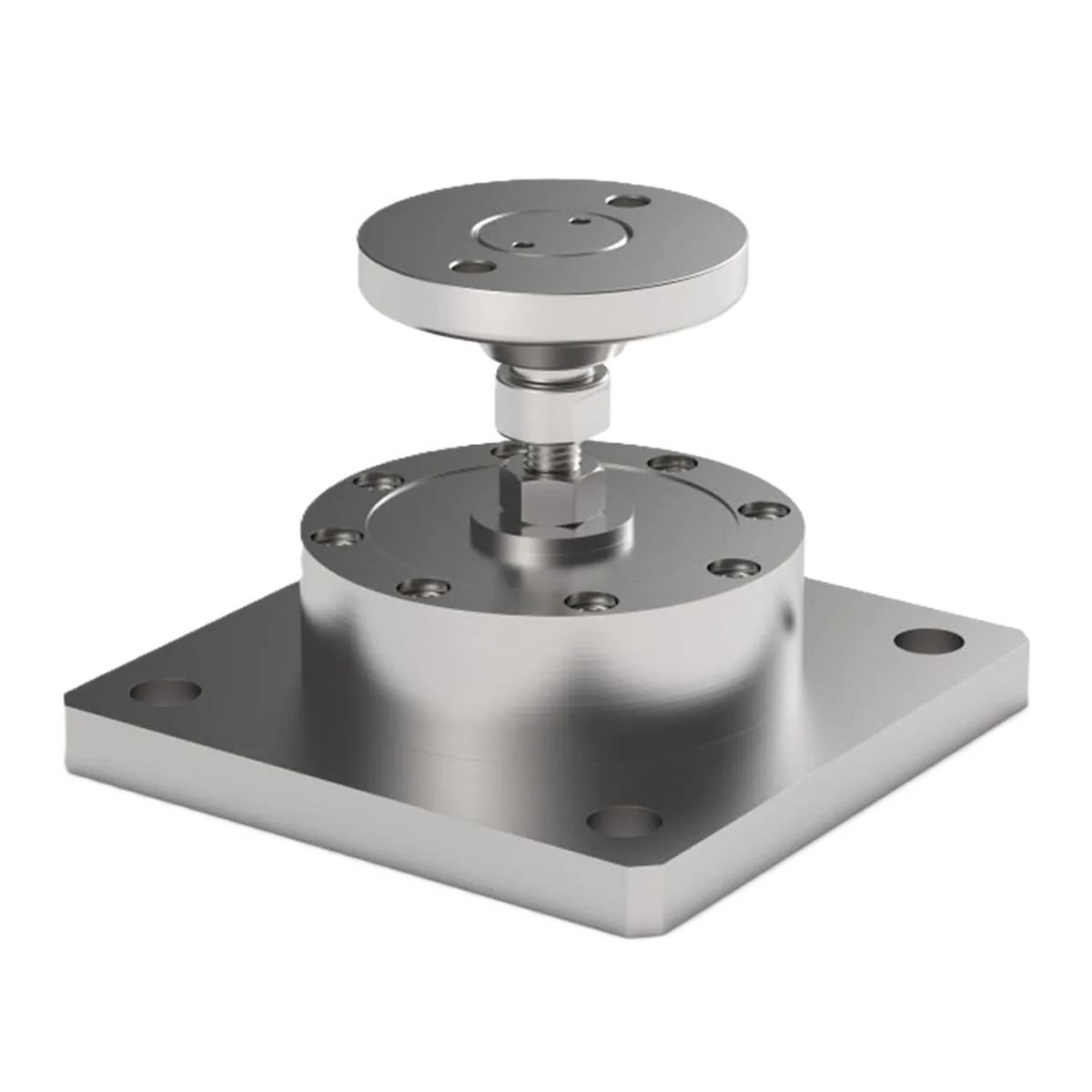

LMLAQ weighing module for compression pancake load cell 2 t, EN1090

LMLAQ weighing module – mounting kit for low-profile compression load cells with EN1090 certification, suitable for capacities up to 2,000 kg. Lateral force protection and anti-tilt mechanism via a self-centering AISI 304 stainless steel articulated foot. Compensates for uneven mounting surfaces and is height-adjustable.

Features

• Capacity 2,000 kg (20 kN)
• With EN1090 certification
• For load cell LKLE (1,000 to 2,000 kg)
• Made of AISI 304 stainless steel, net weight 0.6 kg
• Load cell not included

Without EN1090 certification, but with adjustable top plate: LMLAP.
