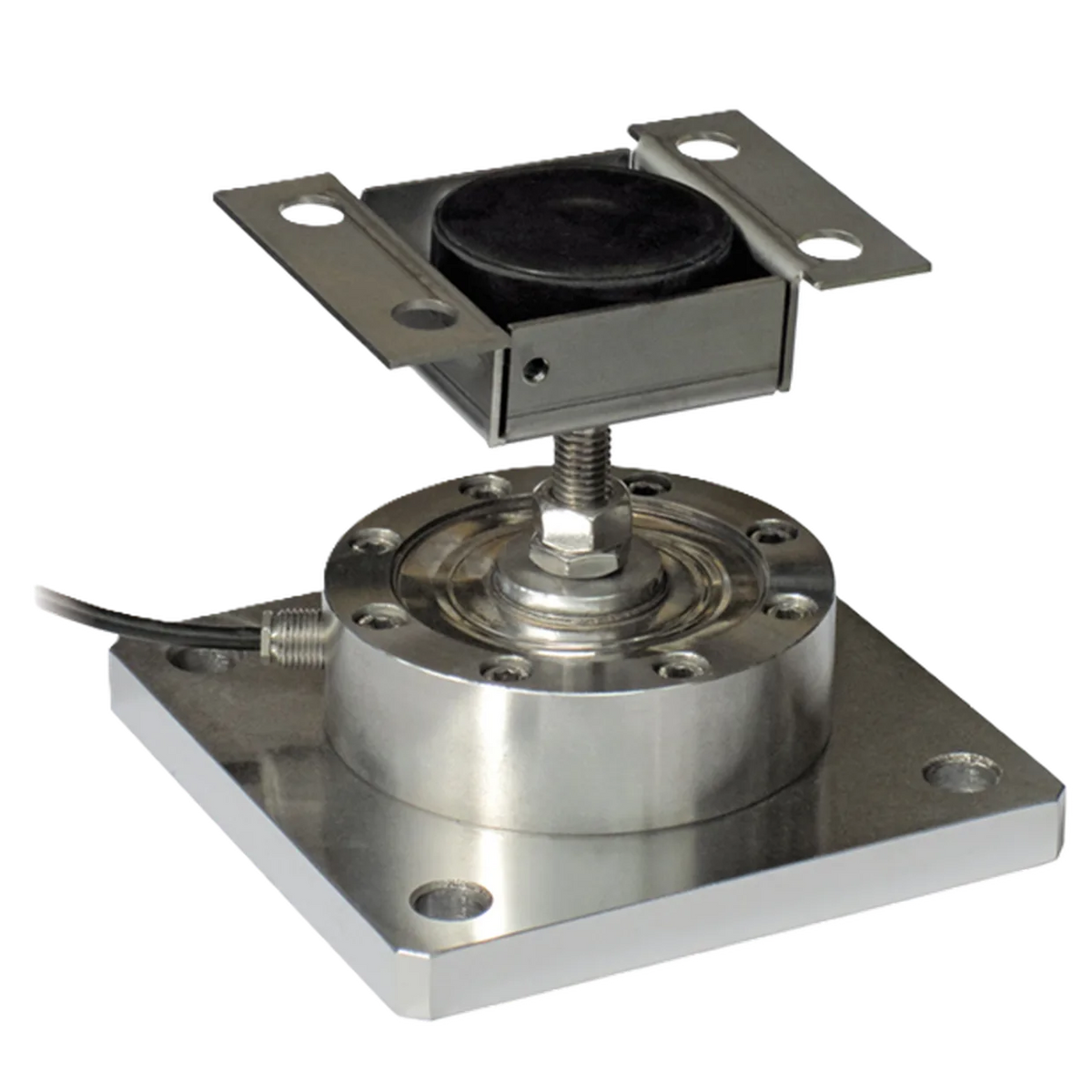

LMLAP weighing module for compression pancake load cell 2 t, adjustable top plate

LMLAP weighing module – mounting kit for compression pancake load cells, suitable for loads up to 2,000 kg. Adjustable AISI 304 stainless steel top plate, side-load protection and tilt protection via a self-aligning stainless steel swivel foot. Compensates for uneven mounting surfaces and is height-adjustable.

Features

• Load capacity 2,000 kg (20 kN)
• With adjustable top plate, without EN1090 certification
• For load cell LKLE (1,000 to 2,000 kg)
• Made of AISI 304 stainless steel, net weight 0.6 kg
• Load cell not included

With EN1090 certification, but without adjustable top plate: LMLAQ.
