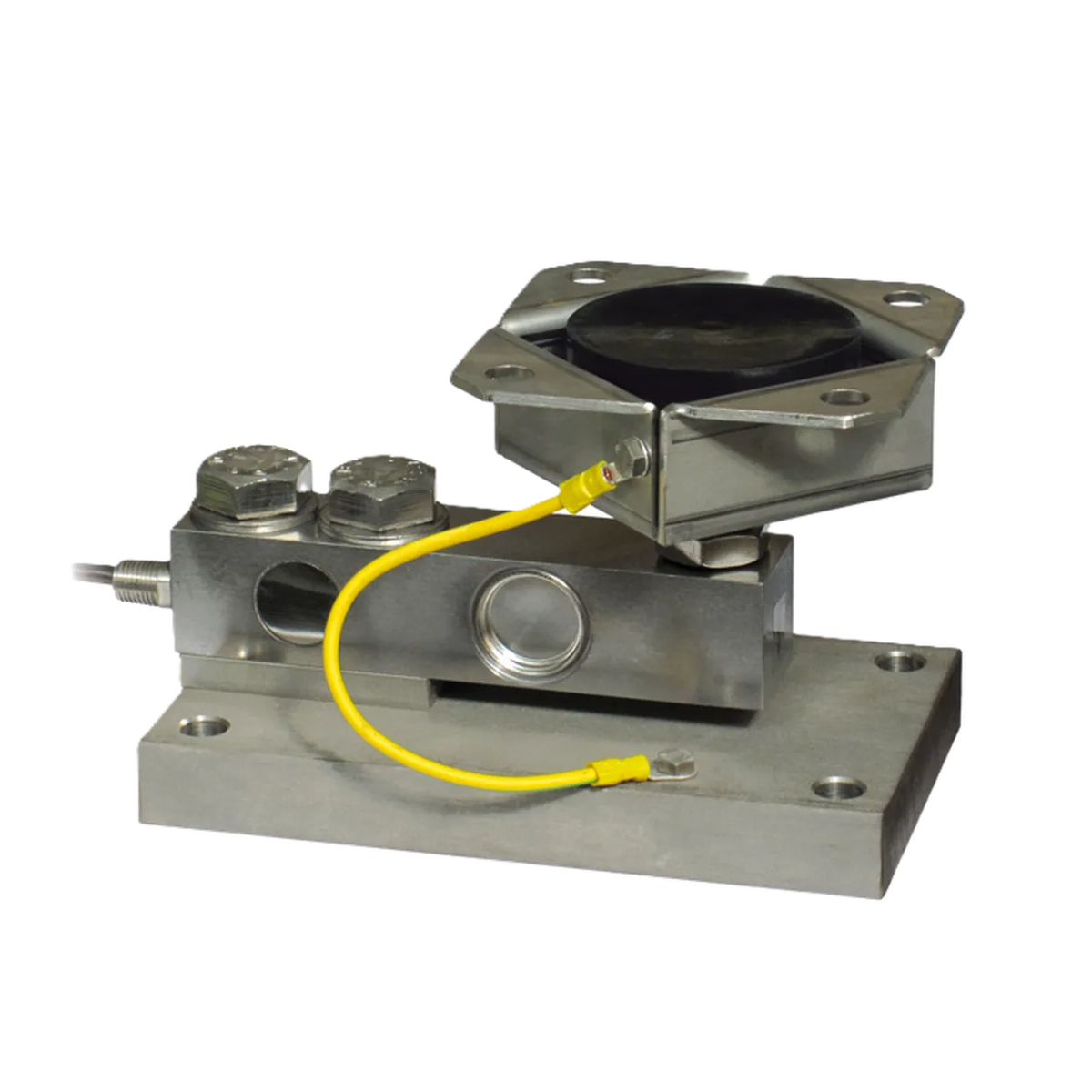

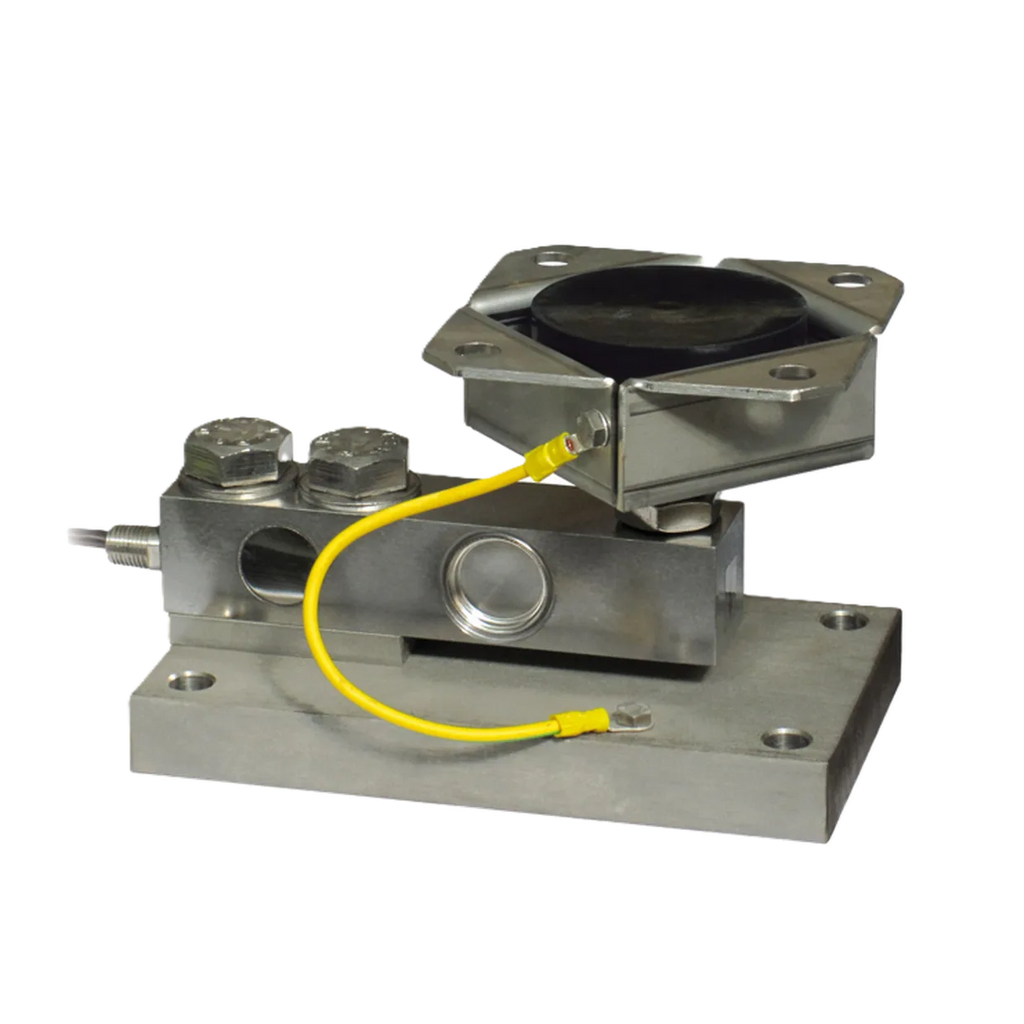

LMLAO weighing module for shear beam load cell 5 t

LMLAO Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 5,000 kg. Adjustable top plate, bottom plate, and block made of AISI 304 stainless steel (PV80) or galvanized steel (PV60Z). Protection against lateral forces and tilt protection provided by a self-centering articulated foot. Compensates for uneven mounting surfaces and is height-adjustable.

Features

• Capacity 5,000 kg (50 kN)
• For load cells LBLA | LBLF | LBLJ
• Available in AISI 304 stainless steel or galvanized steel, net weight 6.7–6.9 kg
• Tightening torque for mounting screws: 280 Nm
• Load cell not included
