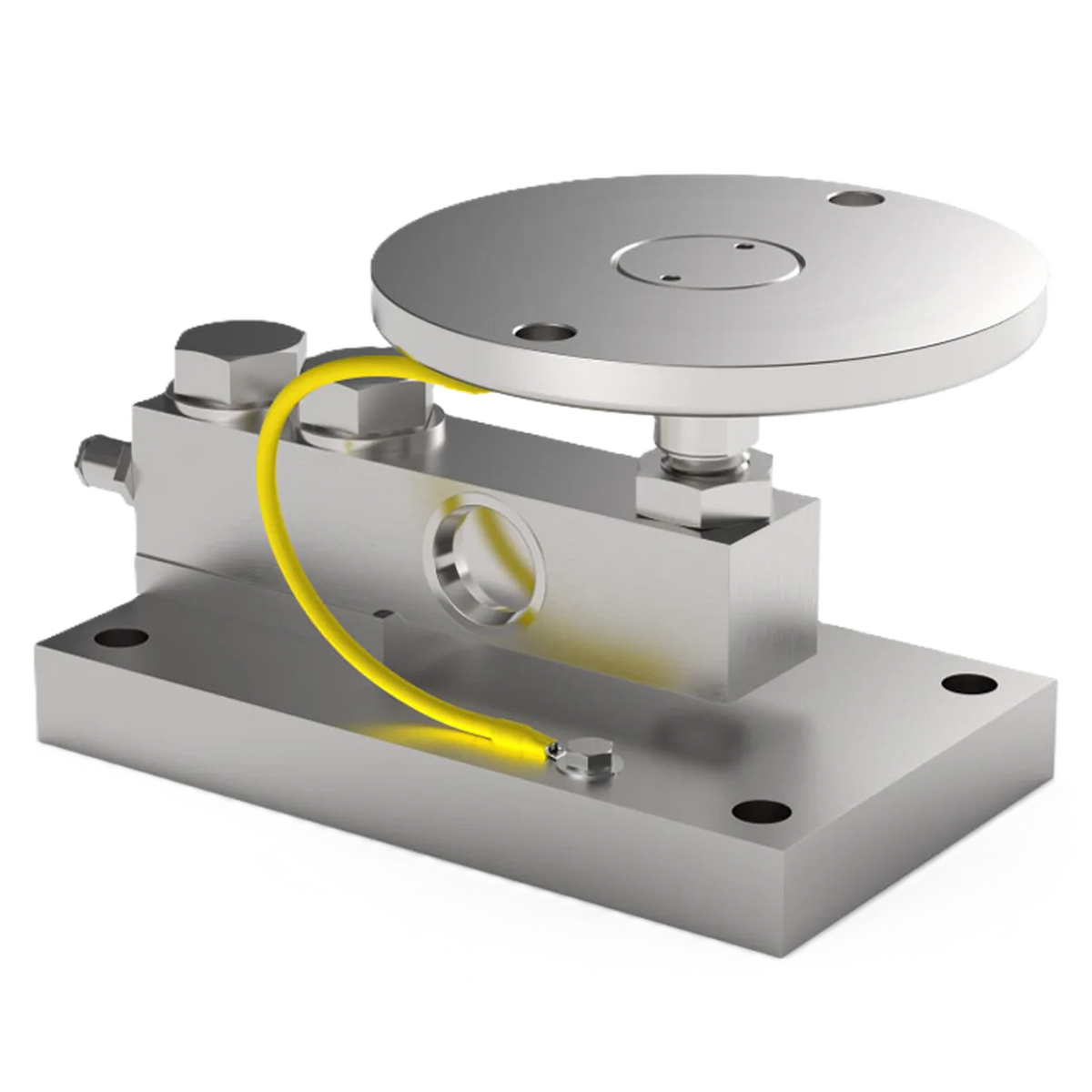

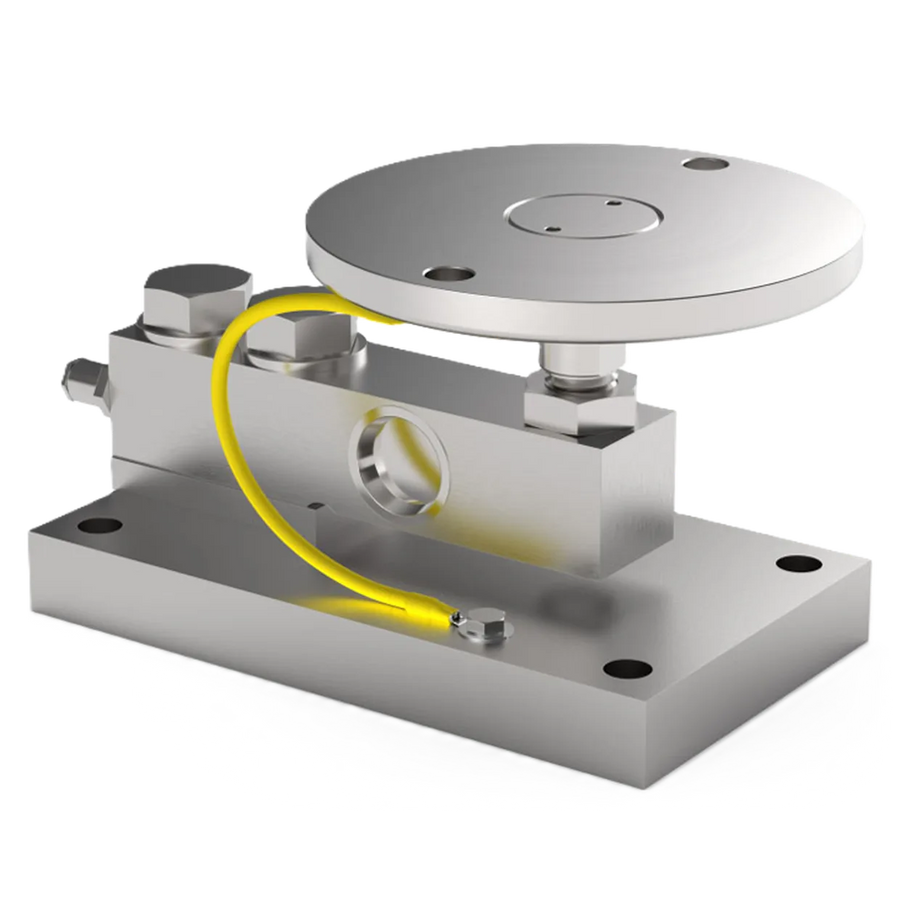

LMLAM weighing module for shear beam load cell 5 t, EN1090

LMLAM Weighing Module – Mounting kit for shear beam load cells with EN1090 certification, suitable for capacities up to 5,000 kg. Lateral force protection and anti-tilt mechanism via a self-centering articulated foot made of AISI 304 stainless steel; base plate and block also made of AISI 304 stainless steel. Compensates for uneven surfaces and is height-adjustable. A locking screw prevents damage during transport and installation.

Features

• Capacity 5,000 kg (50 kN)
• With EN1090 certification
• For load cells LBLA | LBLF | LBLJ
• Made of AISI 304 stainless steel, net weight 6.9 kg
• Load cell not included

Without EN1090 certification and available in galvanized steel as an alternative: LMLAO.
