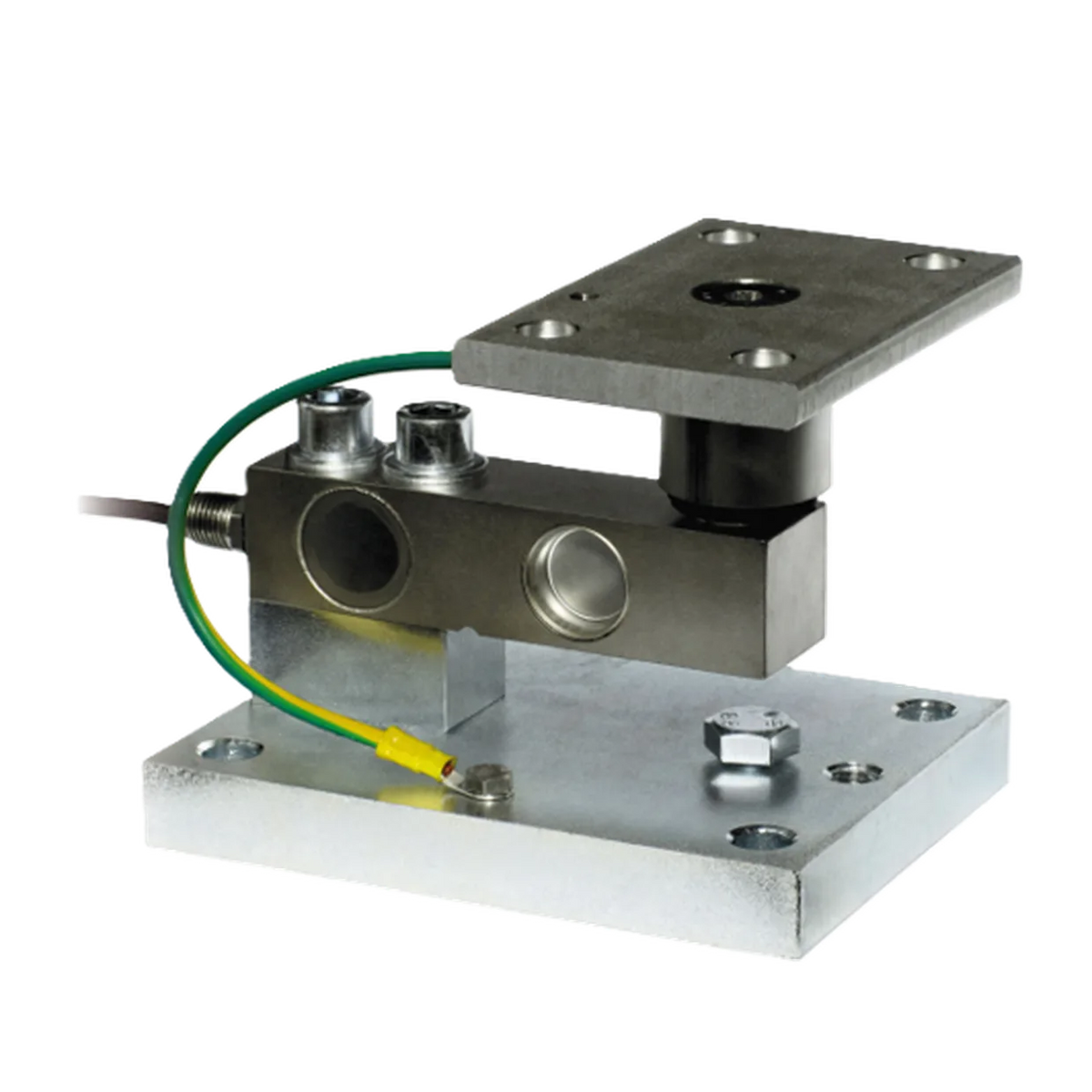

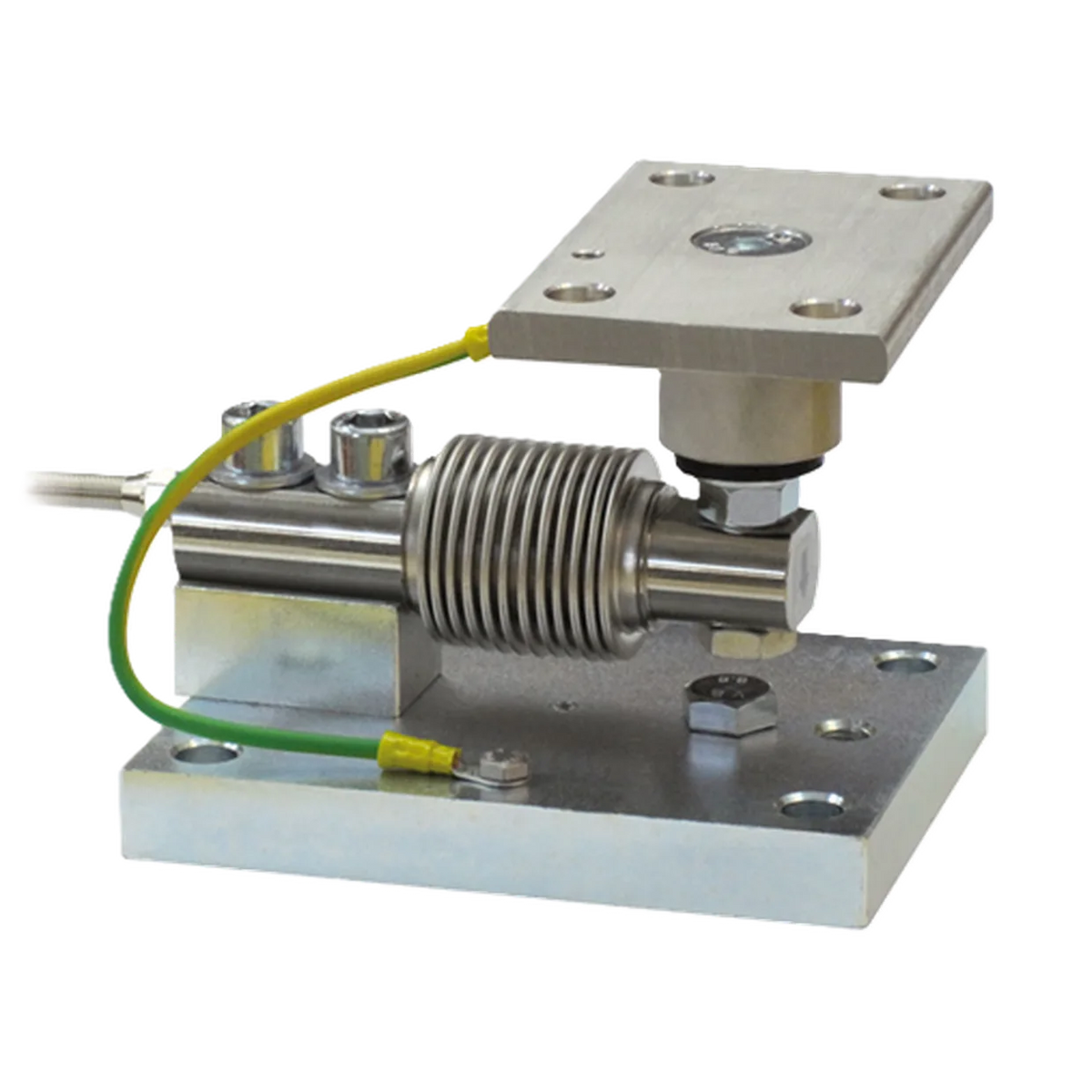

LMLAJ weighing module for bending beam load cell 1.5 to 2 t

LMLAJ Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 2,000 kg. Top plate with pendulum foot made of AISI 304 stainless steel and rubber, bottom plate and block made of galvanized steel. Compensates for unevenness of the mounting surface. A safety screw protects against damage during transport and assembly.

Features

• Capacity 1,500–2,000 kg (15–20 kN)
• For load cells LBLA | LBLB | LBLF | LBLI | LBLJ | LBLK | LBLL
• Made of galvanized steel, net weight 4 kg
• Tightening torque for mounting screws: 79 Nm
• Can be used in systems with at least 3 support points
• Load cell not included
