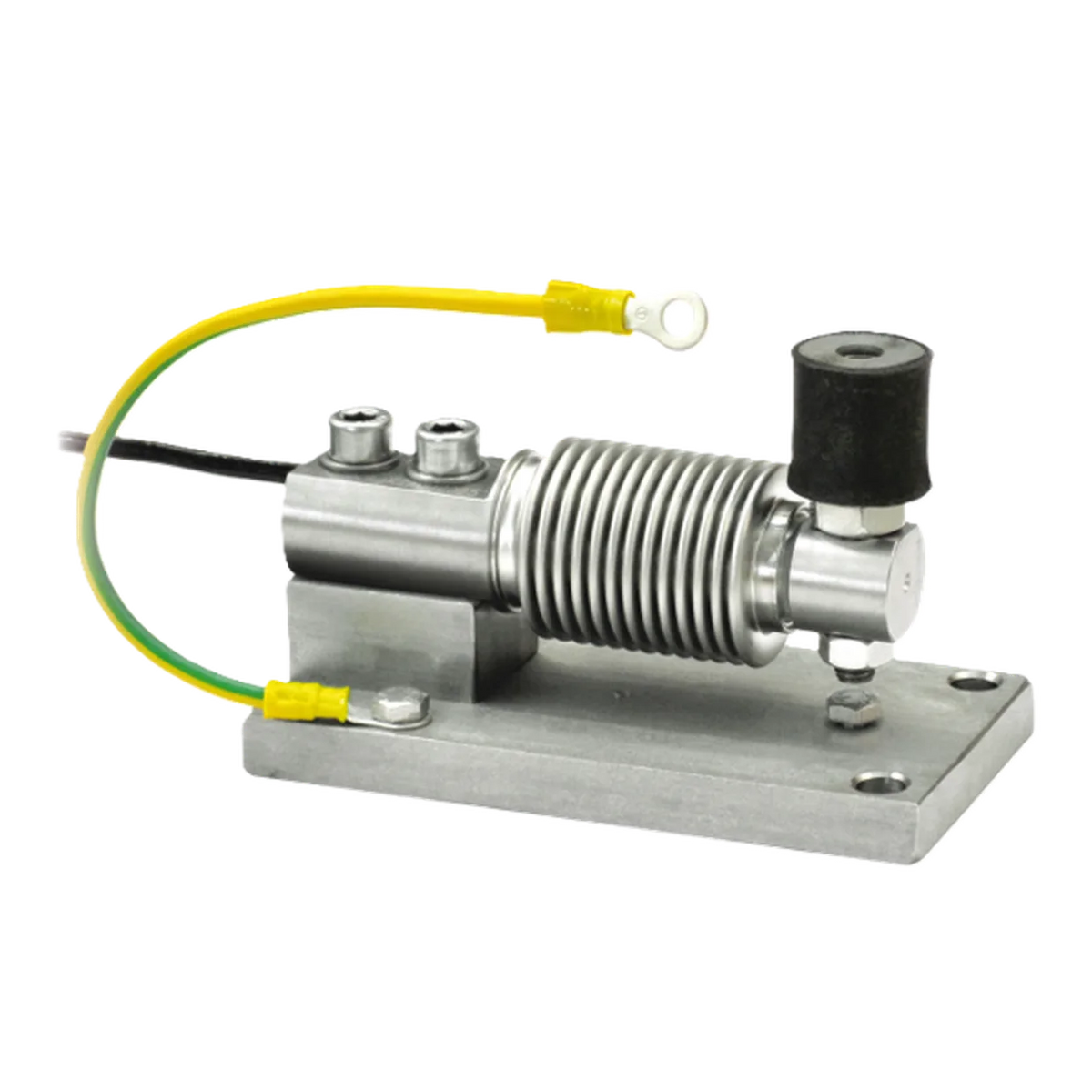

LMLAH weighing module for bending beam load cell 300 kg, compression joint

LMLAH Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 300 kg. Pressure joint made of AISI 304 stainless steel and rubber, base plate and block made of AISI 304 stainless steel. Compensates for uneven mounting surfaces. A safety screw protects against damage during transport and assembly.

Features

• Capacity 300 kg (3 kN)
• For load cell LBLD
• Made of AISI 304 stainless steel, net weight 1.2 kg
• Tightening torque of the fastening screws: 19 Nm
• Can be used in systems with at least 3 support points
• Load cell not included
