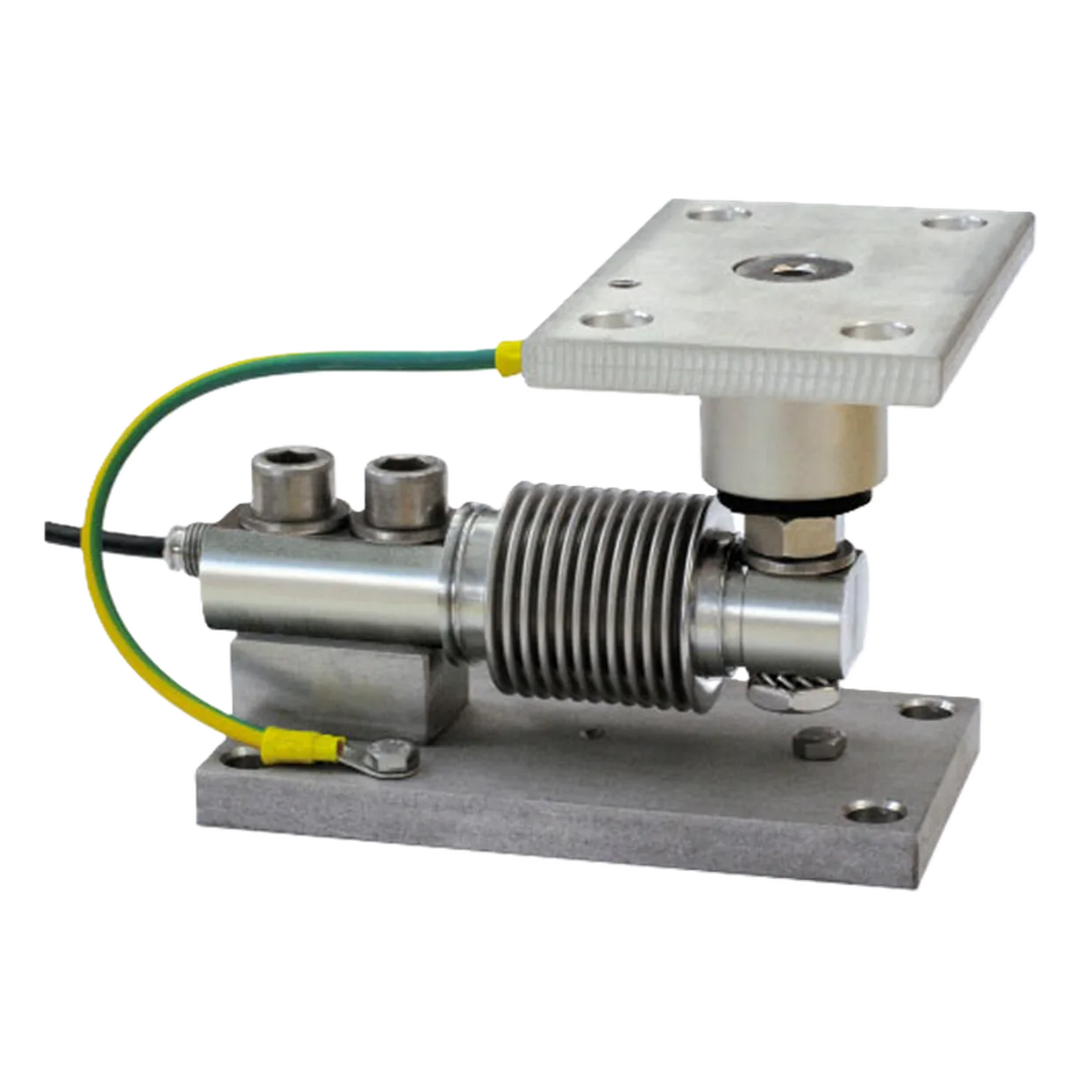

LMLAE weighing module for bending beam load cell 500 to 1500 kg, compression joint

LMLAE Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 1,500 kg. Top plate with pendulum foot made of AISI 304 stainless steel and rubber, bottom plate and block made of AISI 304 stainless steel. Compensates for uneven mounting surfaces. A safety screw protects against damage during transport and installation.

Features

• Capacity 500–1,500 kg (5–15 kN)
• For LBLB | LBLI load cells
• Made of AISI 304 stainless steel, net weight 2.3 kg
• Tightening torque for mounting screws: 50 Nm
• Can be used in systems with at least 3 support points
• Load cell not included
