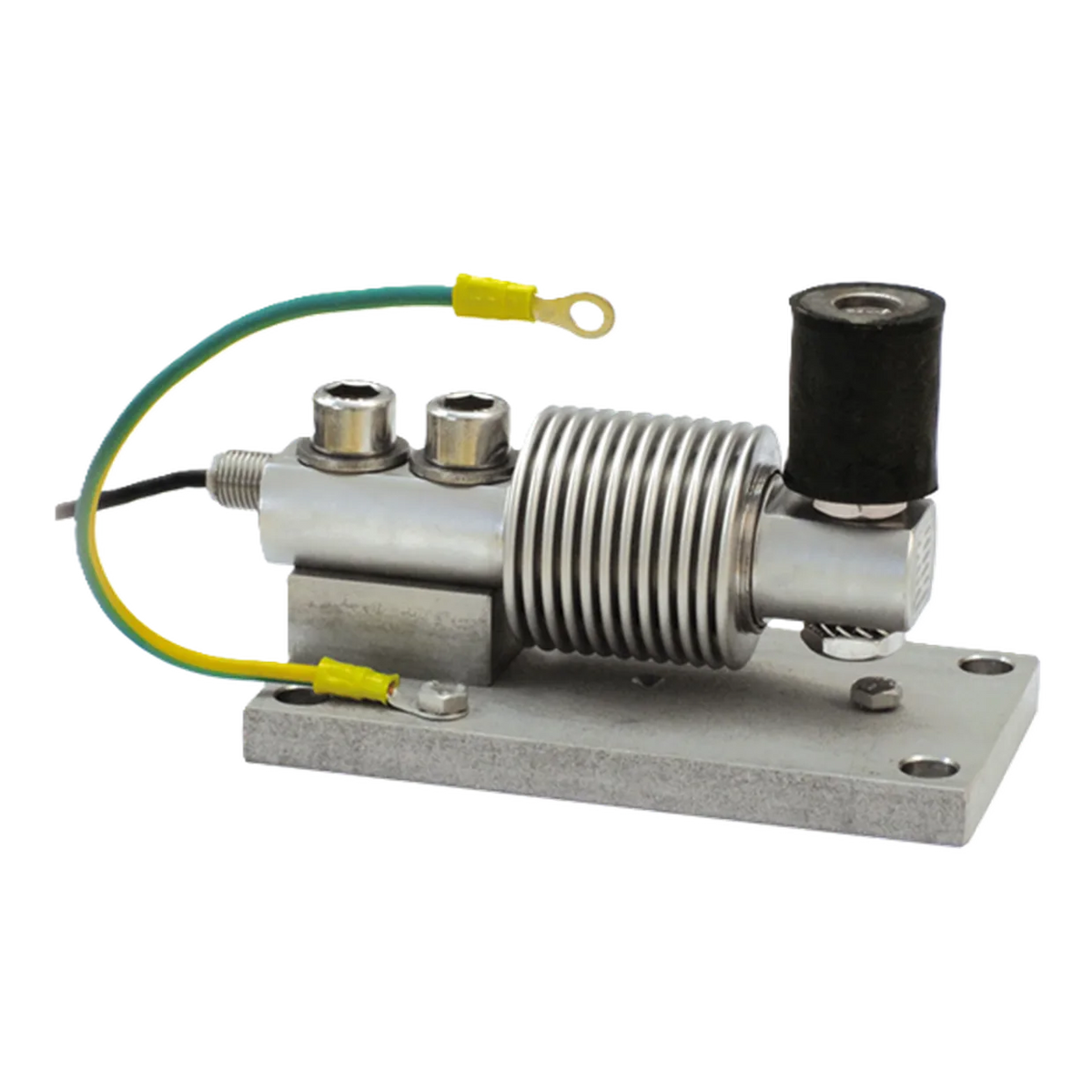

LMLAD weighing module for bending beam load cell 500 kg, compression joint

LMLAD Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 500 kg. Pressure joint made of AISI 304 stainless steel and rubber, base plate and block also made of AISI 304 stainless steel. Compensates for uneven surfaces. A securing screw protects against damage during transport and assembly.

Features

• Capacity 500 kg (5 kN)
• For load cells LBLB | LBLI
• Made of AISI 304 stainless steel, net weight 1.5 kg
• Tightening torque for mounting screws: 50 Nm
• Can be used in systems with at least 3 support points
• Load cell not included
