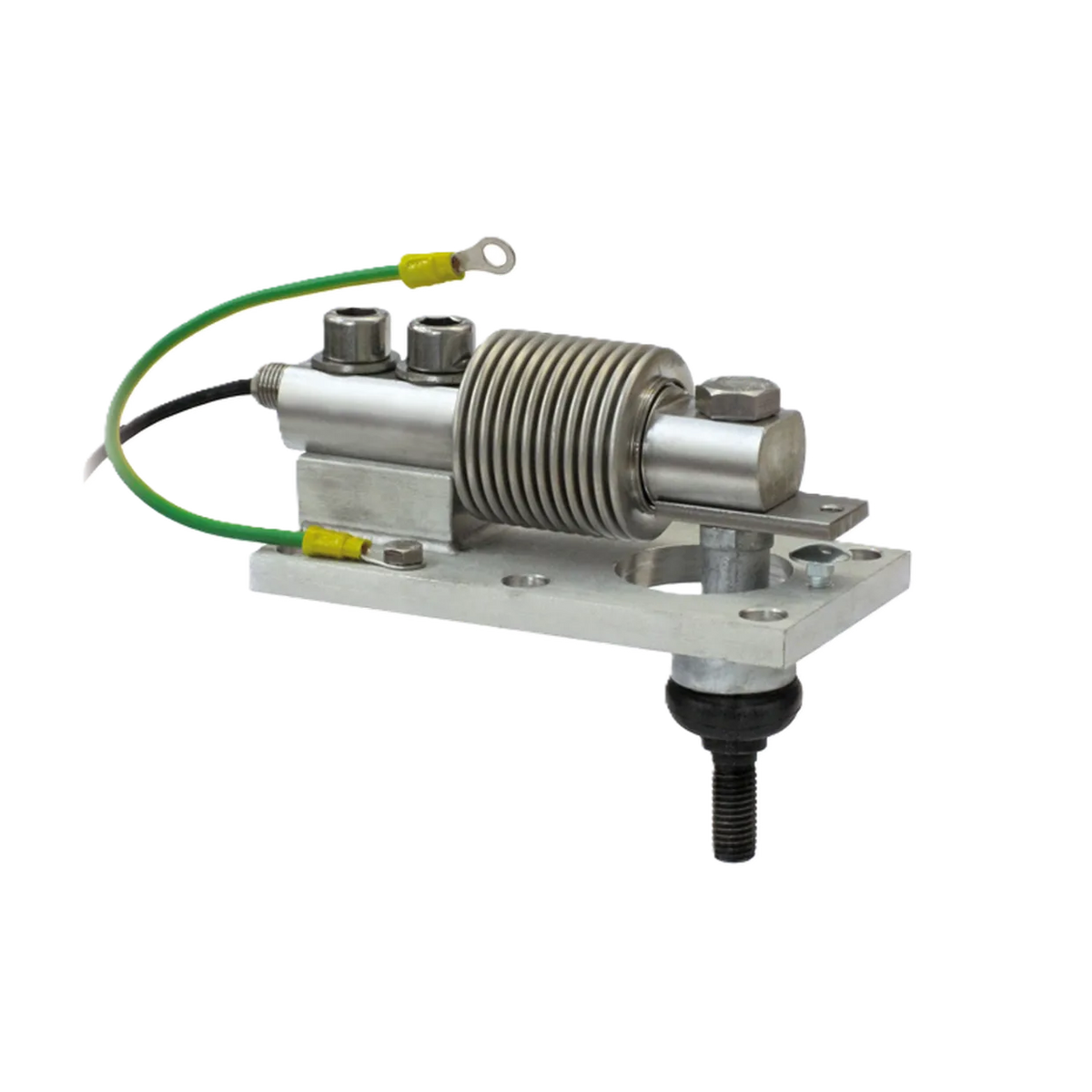

LMLAC weighing module for bending beam load cell 500 kg, tension joint

LMLAC Weighing Module – Mounting kit for shear beam load cells, suitable for capacities up to 500 kg. Swivel joint made of aluminum alloy, base plate made of AISI 304 stainless steel. A safety screw protects against damage during transport and assembly.

Features

• Capacity 500 kg (5 kN)
• For load cells LBLB | LBLI
• Made of AISI 304 stainless steel, net weight 1.5 kg
• Tightening torque of fixing screws: 79 Nm
• Load cell not included
