Description

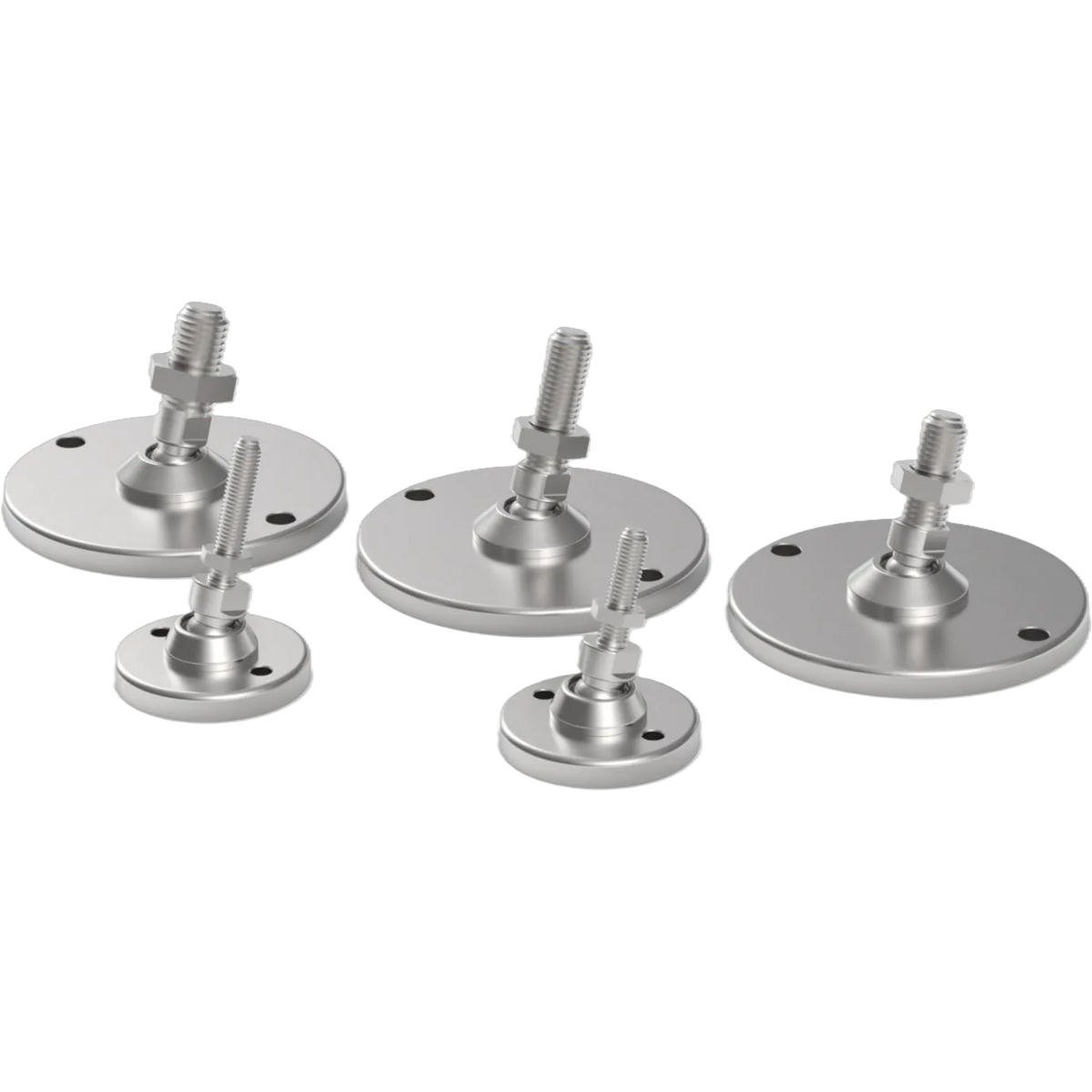

LALAL Self-centering Load Foot – Ball-bearing, self-centering load foot made of stainless steel, in two heights for bending beam/shear beam load cells (H 102 mm) and for stand-alone load cells (H 89 mm).
Features
- Max. static load 2,000–10,000 kg
- Thread M12x1.75 | M20x2.5 | M24x3
- Made of stainless steel, net weight 0.6–1.9 kg
- Installation height 102 mm (bending beam/shear beam load cells) or 89 mm (FLC load cells)
- Load cell not included
